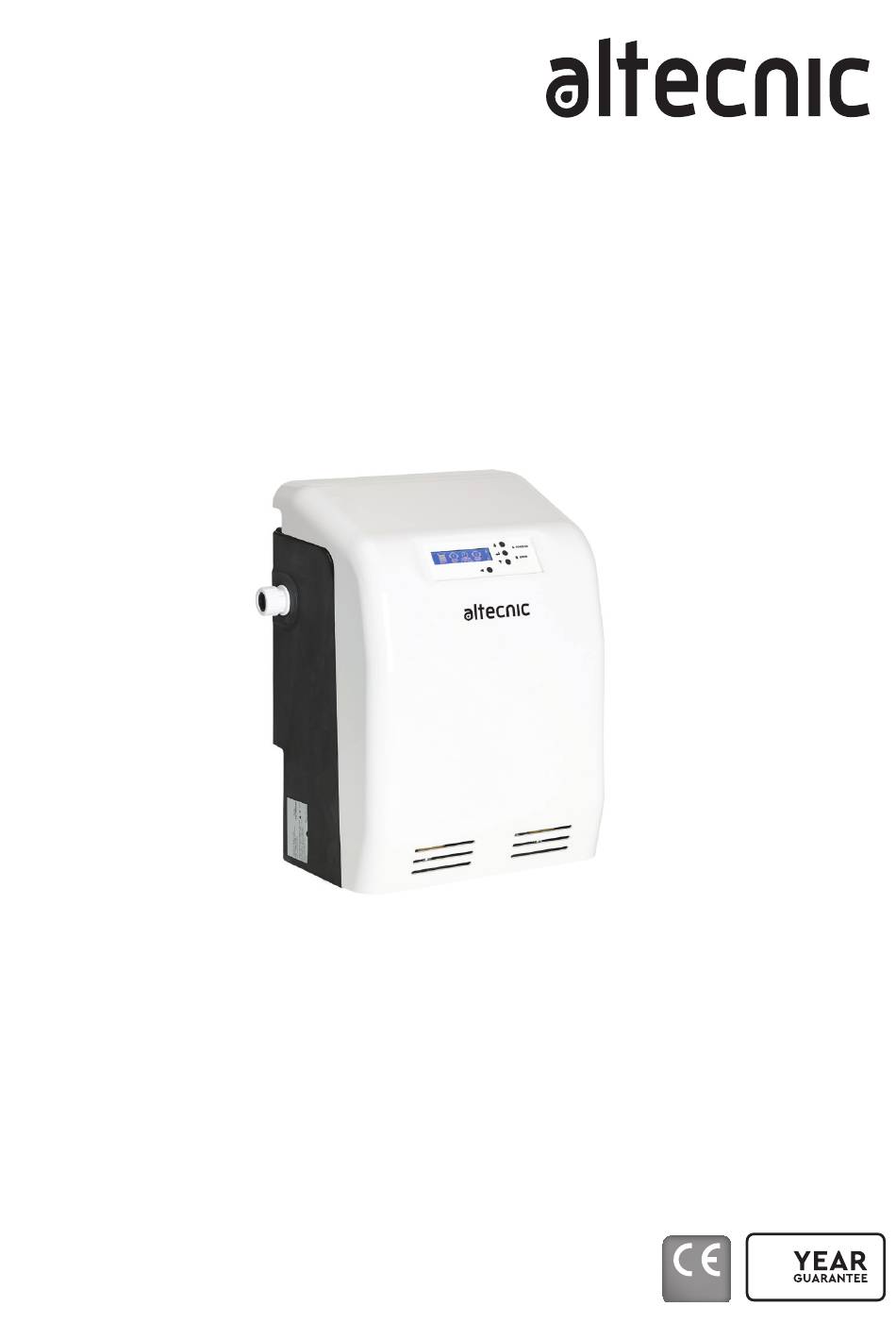

Matrix Midi

Installation, Operation & Maintenance

Instructions

Please leave this instruction booklet with the end user as it contains important

guarantee, maintenance and safety information

Read this manual carefully before commencing installation.

This manual covers the following products:

Matrix Midi 135D

Pt. No. 121-1011

Matrix Midi 235D

Pt. No. 121-1013

Matrix Midi 150D

Pt. No. 121-1012

Matrix Midi 250D

Pt. No. 121-1014

CE compliant product

Table of Contents

Need help?

Do you have a question about the Matrix Midi 135D and is the answer not in the manual?

Questions and answers

Summary of Contents for Altecnic Matrix Midi 135D

Page 1 Please leave this instruction booklet with the end user as it contains important guarantee, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products: Matrix Midi 135D Matrix Midi 150D Pt. No. 121-1011 Pt. No. 121-1012...
Page 2: Table Of Contents
PRODUCT DESCRIPTION Heating and cooling system pressurisation top up unit with integral water storage tank and electric motor driven peripheral pump, automated control system consisting of pressure transducer and water level sensors. The tank includes an AB air gap for category 5 fluid isolation (BS EN 1717). APPLICATION The Matrix Midi range is designed to provide initial system fill and intermittent water top up to compensate for intermittent losses in system pressure in heating and cooling systems in...
Page 3 WARNINGS: This appliance must not be used for any other application without the written consent of Altecnic Limited. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if...
Page 4: Checklist
CHECKLIST IMPORTANT: With the appliance removed from its packaging check for any damage prior to installation. If any damage is found contact Altecnic Ltd within 24 hours of receipt. Front cover removed for clarity Electrical rating plate & serial number Fig.
Page 5: Important Facts - Read Before Commencing Installation
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A Water storage capacity. 1.11 The Matrix Midi has a usable water volume of approximately 8 litres; the length of time the Matrix Midi takes to pressurise a system will be dependent on:- The pressure differential between the cold fill and set pressures and also the refill rate of the tank 1.12 Ensure the pumps are primed as described in the priming section before starting, to...
Page 6: Location
2 LOCATION - GENERAL 2.11 Location: The preferred Matrix Midi location is either on a solid wall or on a smooth level floor, both of sufficient strength to support the filled weight of the Matrix Midi, close to the water source and a suitable overflow position (see Section 9 - Technical Specification for filled weight).
Page 7 However, care must be taken when mounting the Matrix Midi that any noise is not amplified through loose panels or pipework. 2.21 Flexible hose: Only use the Altecnic Ltd hoses supplied with the Matrix Midi. 2.22 Isolating valves: Separate system isolating valves (non-restrictive) must be fitted to allow easy service of the Matrix Midi.
Page 8: Key Features
3 KEY FEATURES 3.11 The Matrix Midi comprises of the following main components:- 1. Moulded tank – Main body of the Matrix Midi, comprising of an integrated water tank with warning pipe and weir overflow and mounting the brass pump assembly, manifold and controller.
Page 9: Installation
4 INSTALLATION 4.11 Fill valve flow restrictor guidelines: The side entry fill valve must be fitted with the correct filter and flow restrictor combination (dependant on the mains water pressure) into the G ½ threaded tail as outlined below: Coloured insert - To be used for water pressure between 1 and 4 bar White insert - To be used for water pressure above 4 bar Fig.
Page 10 4.13 Wall plate fixing: 1. If installing the Matrix Midi on a wall ensure suitable fixings for the wall structure are used and are suitable to support the unit when fully filled with water (see Section 10 for filled weights). The holes in the wall plate are 6 mm in diameter, the maximum permissible screw head height is 3 mm.
Page 11 4.14 Floor installation: 1. If installed on a floor ensure the Matrix Midi is located so it cannot be kicked or knocked over. 2. Ensure the floor surface on which the Matrix Midi is located is flat and level. 3. If possible locate the unit against a wall for added stability. 4.
Page 12 6. The flexible hose and any wiring can be retained in the desired position using cable ties and the two metal cable retention points on the top left and right of the Matrix Midi tank. See Figs. 10 & 11. 7.
Page 13: Electrical Installation
5 ELECTRICAL INSTALLATION / EARTHING 5.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 5.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D.
Page 14 5.21 Wiring of connection unit: WARNING: This appliance must be earthed. The wires in the mains lead (supply cord) are coloured in accordance with the following code: Green and Yellow: Earth Blue: Neutral Brown: Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit proceed as follows: The wire which is coloured green and yellow must be connected to the terminal in...
Page 15 5.23 Alarm and boiler interlock connections: Circuits connected to the relays are limited to 5 Amps, 230 V a.c. maximum. The Installer MUST fit a 5 Amp fuse in the circuit to the alarm relay to protect the Matrix Midi from damage. Boiler Interlock Common Alarm High pressure alarm...
Page 16 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly, please contact Altecnic Ltd for further details. On disassembly note the cord retention and routing system. Re-assemble to the same pattern.
Page 17: Commissioning
6 COMMISSIONING 6.11 Pre-commissioning checklist: Before starting the commissioning process the following conditions must be met. If these conditions are not adhered to, damage to the equipment, system and property may result. Ensure the unit is sited in a frost free area, away from precipitation and water sprays/ jets.
Page 18 6.15 Controller overview The Matrix Midi controller is designed to be intuitive to use and allows functions and alarms to be set by the installer/user. It also allows faults to be monitored and logged to enable easier system fault diagnosis. The functions are set using the 4 buttons (A, B, C &...
Page 19 Set in 0.1 bar increments up to System pressure (2) the maximum set value for the Matrix model. Matrix Midi 135D & Matrix see Fig. 20 Midi 230D, 3.5 bar max., Matrix Midi 150D & Matrix Midi 250D, 4.1 bar max.
Page 20 6.19 Advanced setting menu (Pass code protected, if set) The following functions can be set and modified:- Can be set to operate if of the following alarms activate:- Low water Pump fail Common alarm relay allocation Pump run time Pump activity high Sensor error Common relay operation Allows the relay to operate either as normally open or normally closed.
Page 21 6.21 Pre-set values The Matrix Midi will be delivered with the following pre-set values:- 6.22 Setting menu Set Pressure 2 bar Differential 0.2 bar Hi Alarm 2.5 bar Lo Alarm 1.3 bar System fill Run activity high 1000 6.23 Advanced setting menu Pump fail Relay allocation Relay operation...
Page 22 6.24 Controller menu diagram 18 March 2019 Power ‘on’ Home screen Start up screen Delay (logo) System pressure Enter pass display code (If set) Error display Advanced menu System fill status display Pump run on delay Pump activity display Pump start delay Pump run time display...
Page 23 6.25 Common alarm relay set-up: The Common alarm relay can be configured via the Advanced setting menu to activate when one of the following alarms are displayed on the screen: Hi pressure Pressure above the Hi pressure alarm (1) Lo pressure Pressure below the Lo pressure alarm (4) Low water level Low water level is seen by they sensor in the tank.
Page 24: Operation
7 OPERATION 7.11 Normal operation: The ‘Home’ screen will display the status of the tank water level, system pressure and if any pump is running. Pressing the return key (D) will get back to this screen. Tank full System pressure is 2.10 bar Pump 1 running Pump 2 is not...
Page 25 When setting the differential pressure and the Hi and Lo alarms please ensure that the normal system pressure fluctuations are below the Hi pressure alarm set pressure and above the differential pressure. If this is not done the Matrix Midi will try to compensate for the pressure change causing an over pressure within the system or alarms being triggered.
Page 26: Maintenance
8 MAINTENANCE 8.11 Routine maintenance & service checks: Every 6 & 12 months (see Section 12 - service log) the Matrix Midi should be inspected for:- Damage to the electrical supply cable. Damage to the inlet and outlet flexible hoses. Leakage from the Matrix Midi or the connecting pipework.
Page 27: Environment Protection
8.14 Restart To ensure the Matrix Midi is in good working order after a prolonged period of maintainance the following steps should be taken. 1. Inspect the Matrix Midi for signs of damage. 2. Check Matrix Midi tank for debris, remove debris and clean tank if needed. Debris may cause damage to the pumps if it is allowed to be drawn in.
Page 28: Technical Specification
29.4 Kg 23.4 Kg 29.4 Kg Altecnic Ltd reserve the right to amend the specification without notice. 10.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pump does not exceed 70 dB(A).
Page 29: Trouble Shooting
Pressure sensor fault Remove pressure from the Matrix Midi outlet and verify the displayed pressure is 0 bar. Error will be displayed if the sensor signal is outside parameters. (Replace sensor – call Altecnic Ltd). Pump(s) will not System pressure set...
Page 30: Product Log
12 PRODUCT LOG 12.11 Customer Details Customer/company name Site address Date 12.12 Equipment details System volume m Expansion vessel(s) fitted & pre- charge pressure Boiler(s) fitted 12.13 Commissioning record Date commissioned Company Engineer System set pressure Differential pressure Hi alarm set pressure Lo alarm set pressure 12.14 Service Log Service No.
Page 31 Service No. 2 Date Engineer name Company name Tel. No System pressure bar Differential pressure bar Check 6 months 12 months Condition of wiring ü ü Condition of hoses ü ü Evidence of leakage ü ü Controller fault codes ü ü...
Page 32 Service No. 4 Date Engineer name Company name Tel. No System pressure bar Differential pressure bar Check 6 months 12 months Condition of wiring ü ü Condition of hoses ü ü Evidence of leakage ü ü Controller fault codes ü ü...
Page 33: Guarantee
We are confident this product will provide many years of trouble free service as all our products are manufactured to the very highest standard. The Altecnic Matrix Midi is guaranteed to be free from defects in materials or workmanship for 2 years from the date of purchase.
Page 34 - 34 -...
Page 35 - 35 -...
Page 36 Altecnic Ltd in any form, without prior written consent of Altecnic Ltd.

This manual is also suitable for:

Matrix midi 150d Matrix midi 235d Matrix midi 250d 121-1011 121-1013 121-1012 ... Show all
