  • Page 1 Monport 40W Laser Engraver Controller Manual Read Carefully Before Use Save It Well for Future Reference...

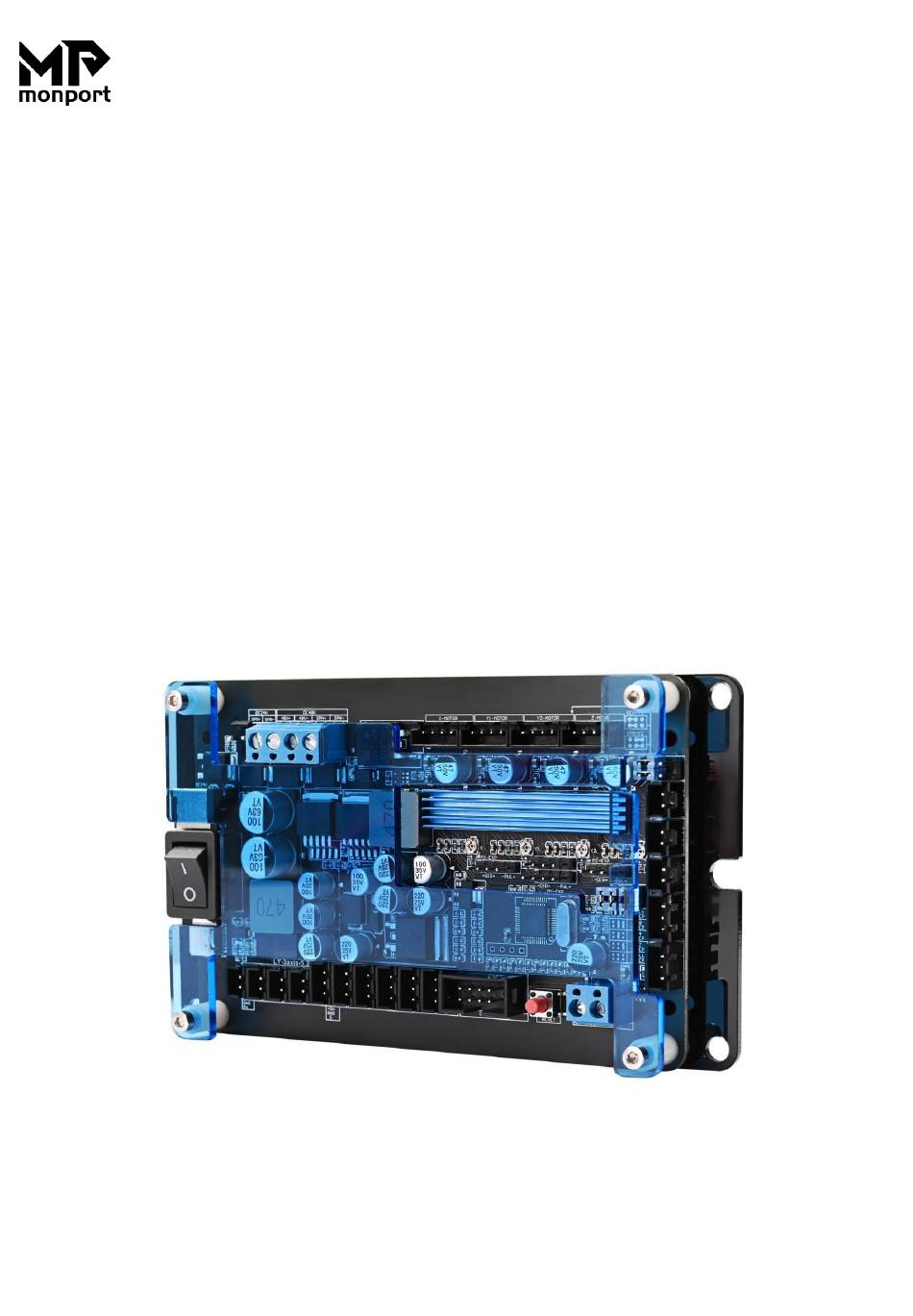

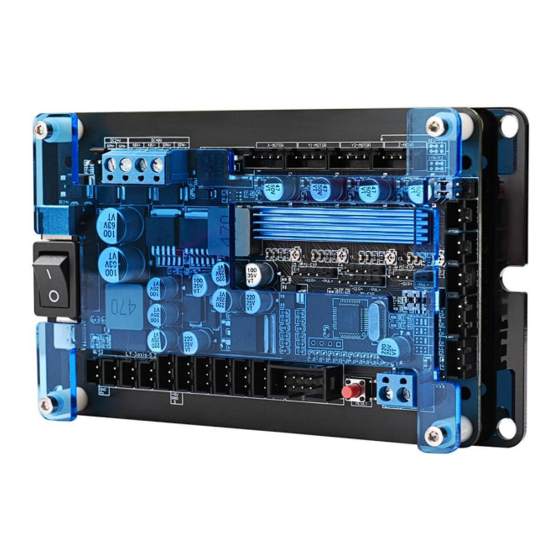

  • Page 2: Product Images

    1. OVERVIEW This GRBL controller is developed for Monport 40w CO laser engraver & cutter and other 40w machines which can engrave and cut glass, leather, plastic, wood, etc. Its firmware and ports can also be used to control similar engravers from other manufacturers and some CNC machines.

  • Page 3: Technical Specifications

    3. TECHNICAL SPECIFICATIONS Model 40w laser engraver&cutter CPU Type MEGA328P/ Arduino 3.3″x5.9″x0.9″ Board Dimensions (8.5cmx15cmx2.35cm) Input Power Output Power 5V / 12V / 24V Support Axis X, Y1, Y2, Z Firmware GRBL Max. USB Speed Mini USB 2.0 Compatible Software...
  • Page 4 Label Pins — DC 12-48V power Supply — — USB-C Reset Reset Probe Z axis height automatic detection Continue the process Holo Process the process X Axis Limit Switch X Axis Limit Switch Y Axis Limit Switch Y Axis Limit Switch Z Axis Limit Switch Z Axis Limit Switch Offline plug...

  • Page 5: Installation

    5. INSTALLATION Step 1: Remove the old control board from the engraver, and place the new controller where the old one is.
  • Page 6 Step 2: Connect power supply to the control board. Step 3: Connect the machine with PC via a USB cable.

  • Page 7: Software Configuration

    6. SOFTWARE CONFIGURATION Step 1: Check out whether the USB cable is connected to the PC. Step 2: Open the Lightburn Software. Step 3: Choose the device.
  • Page 8 Step 4: Name whatever you like.

  • Page 9: Contact Info

    7. CONTACT INFO Thank you for choosing this controller to upgrade your 40w machine! Come and join in the Monport community at our official laser group on Facebook or visit the company forums at monportlaser.com! If you encounter any problem regarding your engraver, do not hesitate to contact customer service with your order number at help support@monportlaser.com.
