Installation instructions & user manual
Zip
InLine

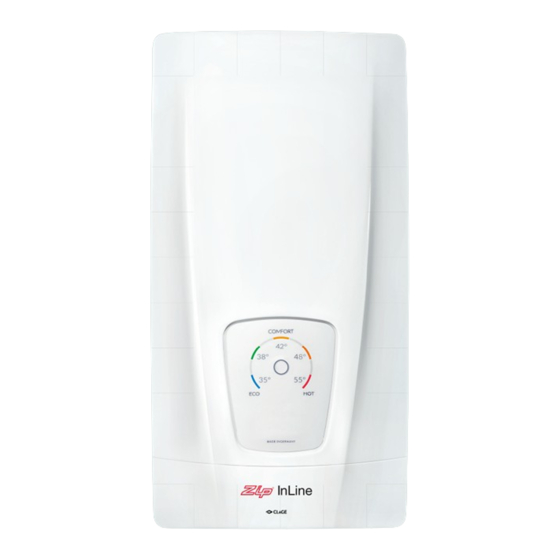

Electronically controlled instantaneous water heaters.
Model number:
DCX Next
Installation instructions & user manual
9120-34379 v1.20 Okt 2022 - ZIP DCX Next
Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk
Technical support
1
Advertisement
Table of Contents
Related Manuals for Zip Water InLine DCX Next
Summary of Contents for Zip Water InLine DCX Next

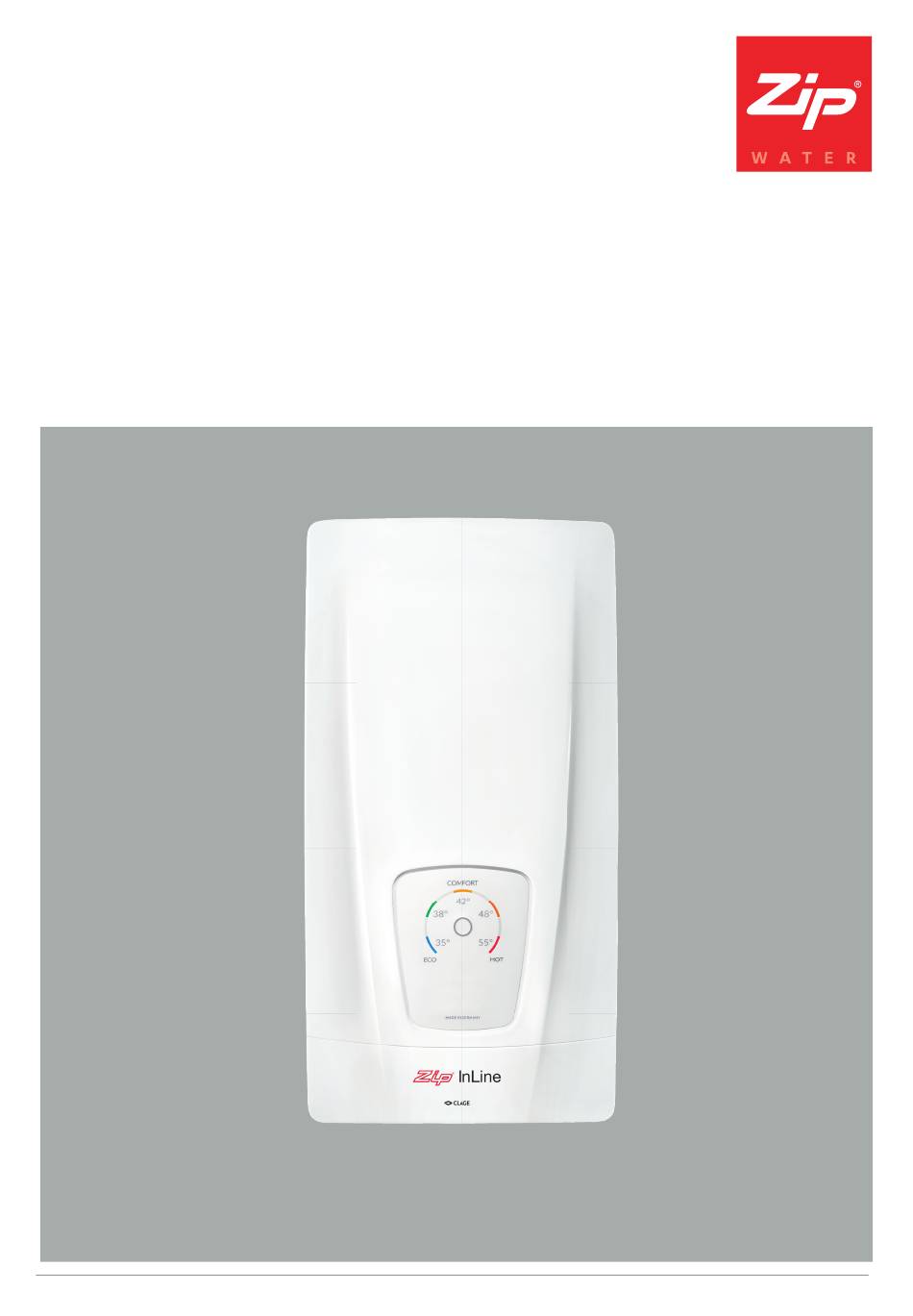

- Page 1 Installation instructions & user manual InLine Electronically controlled instantaneous water heaters. Model number: DCX Next Installation instructions & user manual Technical support 9120-34379 v1.20 Okt 2022 - ZIP DCX Next Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk...
-
Page 2: Table Of Contents
Contents Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Installation instruction 1 . -
Page 3: Safety Instructions
Safety instructions IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. RETAIN THESE INSTRUCTIONS FOR FUTURE USE. - Page 4 • The Zip InLine is intended for connection to mains supply only . In any other case please contact Zip on 0345 6 005 005 for advice . • Zip Water UK cannot be held liable for any damages caused by failure to observe these instruc- tions.
-
Page 5: Operation Instruction
Operation instruction Note: Carefully read the enclosed safety instructions through in full before the appliance is installed, put into service and used and follow them in the further steps and during use! 1. Description of the appliance The E-convenience instant water heater DCX Next is a electronically controlled pres- sure-resistant instantaneous water heater for an efficient water supply to one or more tap outlets . -
Page 6: How To Use
3. How to use Five coloured LEDs Temperature selection Temperature setting The temperature selection key allows you to quickly select one of five preset tem- peratures, that are typical for hot water applications: “Hand wash” 35 °C, “Shower” 38 °C, “Bath tub” 42 °C, “Kitchen” 48 °C and “Cleaning” 55 °C . Every key press sets the temperature to the next level: 35 °C 38 °C... -
Page 7: Venting After Maintenance Work
3. How to use Venting after maintenance work This instantaneous water heater features an automatic air bubble protection to prevent it from inadvertently running dry . Nevertheless, the appliance must be vented before using it for the first time . Each time the appliance is emptied (e .g . after work on the plumbing system, if there is a risk of frost or following repair work), the appliance must be re-vented before it is used again . -
Page 8: Trouble-Shooting And Service
4. Trouble-shooting and service This instantaneous water heater was manufactured conscientiously and checked sev- eral times before delivery . Should malfunctions nevertheless occur, it is usually only due to a bagatelle . First attempt to switch the house fuses off and on again in order to reset the electronics . -
Page 9: Warranty
. Zip Water UK warrants that, should any part fail within 12 calendar months of installation, that part will be repaired or replaced free of charge by Zip or its Distributor or Service Provider, except as set out below, provided the appliance is installed and used strictly in accordance with the instructions supplied, and that failure is not due to accident, misuse, abuse, unsuitable water conditions, or to any alteration, modification or repair by any party not expressly nominated by Zip . -
Page 10: Installation Instruction
Installation instruction 1. Overview Wall bracket Bottom part DCX Next hood Safety thermal cut-out Connecting pipe Thermal sensor PCB cover Heating element Non-return valve Flow sensor Thermal sensor Safety pressure cut-out DCX Next control panel Connecting terminal Inlet pipe Outlet pipe Fine filter Flow limiter Cold water connection... -
Page 11: Technical Specifications
2. Technical specifications Model DCX Next Energy efficiency class Rated capacity / rated current 18 kW . .27 kW (26 A . .39 A) Chosen capacity / current 18 kW / 26 A 21 kW / 30 A 24 kW / 35 A 27 kW / 39 A Electrical connection 3~ / PE 380 . -
Page 12: Installation
4. Installation The following regulations must be observed: • e.g. VDE 0100 • EN 806 • Installation must comply with all statutory regulations, as well as those of the local electricity and water supply companies. • The rating plate and technical specifications •... -
Page 13: Installing The Wall Bracket
4. Installation Installing the wall bracket Note: If you install this instantaneous water heater in exchange for a conventional instantaneous water heater, there is generally no need to drill holes for the wall brack- et, in this case step 2 would not be necessary . Thoroughly rinse the water supply pipes before installation to remove soiling from the pipes. -
Page 14: Installing The Appliance
4. Installation Installing the appliance • The electrical power supply cable may be connected in the upper part or is surface mounted . Only in such case, first follow the steps one through three according to the description “Electrical connection from above” in chapter “Electrical connec- tion”... -
Page 15: Direct Connection
5. Direct connection Note: Fasten the screw nuts with caution, to avoid damage to the valves or the piping system. For direct connection, the two ½ inch screw-in nipples and the ½ inch seals must be screwed into the ½ inch union nuts of the hot-water and cold-water connectors . The two ½ inch caps of the side outlets of the hot-water and cold-water connectors must be removed and screwed onto the open end of the screw-in nipples . -
Page 16: Electrical Connection
6. Electrical connection Wiring diagram Only by a specialist! Please observe: • e.g. VDE 0100 • The installation must comply with current IEC and national local regulations or any particular regulations, specified by the local electricity supply company • The rating plate and technical specifications •... -
Page 17: Electrical Connection From Below
6. Electrical connection Electrical connection from below Note: If necessary, the connecting terminal can be displaced to the upper part of the appliance. If you want to do so, please follow the instructions in the next chapter. Check that the power supply is switched off prior to electrical connection! 1 . -
Page 18: Initial Operation
7. Initial operation Before making the electrical connection, fill the mains and the appliance with water by carefully opening and closing the hot water tap in order to vent completely. To ensure a maximum flow, remove any existing aerator from the faucet. Flush the warm and cold water pipes each at least for one minute. -
Page 19: Maintenance Work
8. Maintenance work Maintenance work must only be conducted by an authorised professional. closed Cleaning and replacing the filter strainer The cold water connection of this instantaneous water heater is equipped with an inte- grated shut-off valve and a strainer . Soiling of the strainer may reduce the warm water output . - Page 20 Zip Water UK Trafalgar House, Rash’s Green, Dereham, Norfolk, NR19 1JG 0345 6 005 005 sales@zipindustries.co.uk www.zipwater.co.uk Technical support Installation instructions & user manual 9120-34379 v1.20 Okt 2022 - ZIP DCX Next Tel: 0345 6 005 005 email: service@zipindustries.co.uk www.zipwater.co.uk...
