Illumra E9T-OSH Installation Manual

High Bay Occupancy Sensor - Ceiling Mounted- Installation Guide
Package Contents
▪
Occupancy Sensor
▪
2 screws, 2 wall anchors
▪
Wire bracket
Product Description
The ceiling-mounted High Bay Occupancy Sensor saves energy
and adds convenience by accurately detecting when an area is
occupied or vacant.
This device is wireless, powered by indoor light, and uses a
passive infrared (PIR) sensor to detect motion. The occupancy
sensor transmits RF signals to control lighting, HVAC and outlets
more efficiently.
Features Include:
▪
Sends wireless messages to other devices when motion is
detected
▪
Harvests ambient solar energy to power the sensor and wire-
less communication
▪
Mounts easily on any ceiling material
▪
Works with other sensors for enhanced occupancy tracking
▪
Built-in tests to confirm operation at installed location
▪
Supplemental battery or alternative power supply options for
extreme low-light conditions
© 2018
Tools Required
▪
Power drill, 3/16" bit
▪
Screwdriver
▪
Light meter
▪
Battery (CR2032) for testing
Specifications (typ. values)
Power Supply:
Optional:
RF Transmission Range
Motion Sensing Range
Startup Charge Times*
First motion transmission
/ Linking
Motion LED blink
Light Test / Walk Test
Sustaining Charge Time
for battery free operation
Time to Full Charge*
Operating Life in
Total Darkness
Minimum Operating Light
Optional Battery Life:
• Infrequent Bright Light
• Consistent Low Light
• Total Darkness
Motion Transmission Interval
Unoccupied Transmission
Heartbeat Transmission
Interval (unoccupied)
Equipment Profile
RF Communications

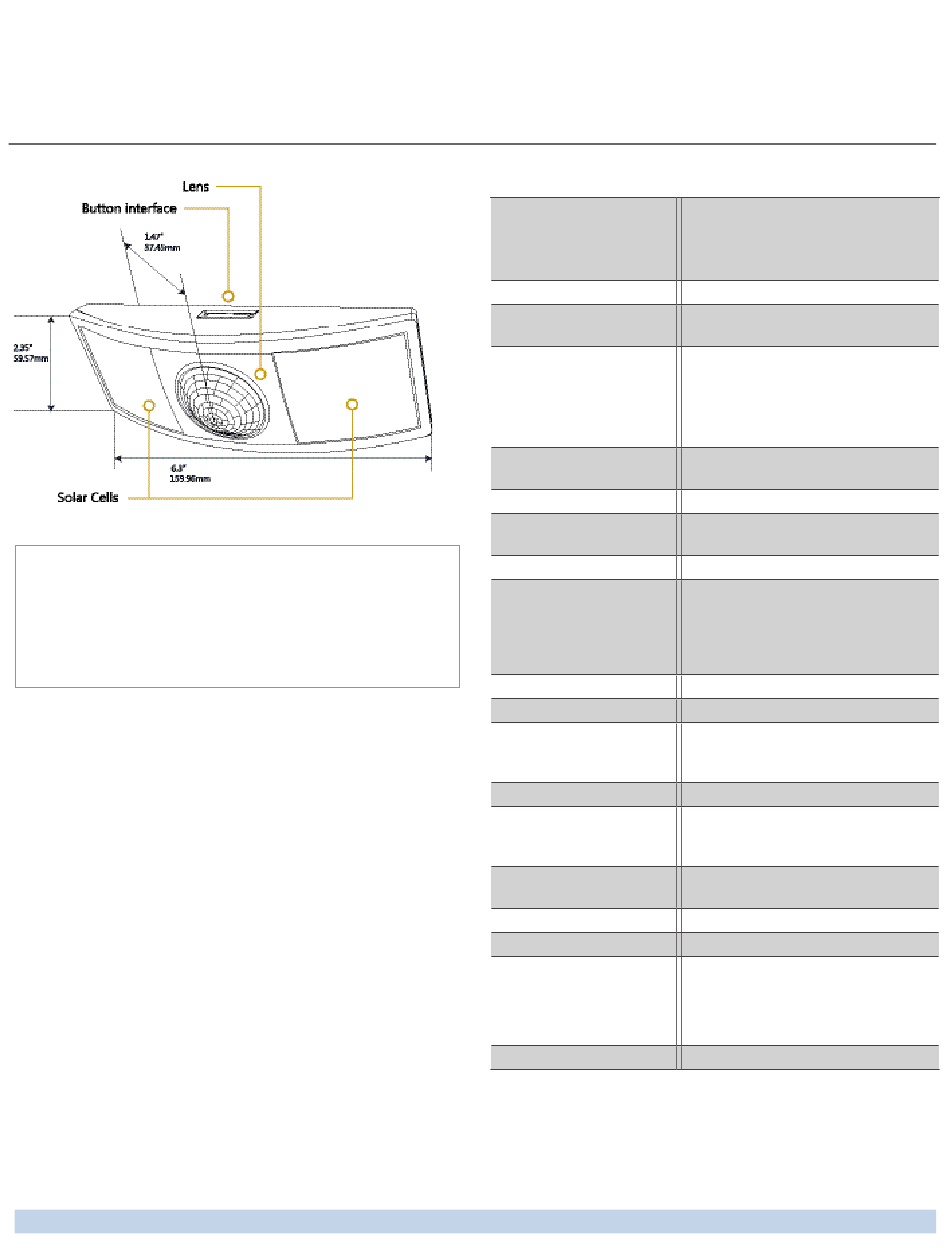

Dimensions
Weight
Mounting Height
Environment
Agency Compliance
* Natural bright light (2000 lux) or a battery can be temporarily used to
significantly shorten startup charge times. Specified lux values are for typical
fluorescent lighting. Lux level requirements for LED and other types may vary.
For lux reference, OSHA standards require a minimum of 323 lux for office
areas.
Installation Guide
Model: E9T-OSH
Indoor light energy harvesting
Supplemental battery (CR2032)
2-wire connector for external power
or remote solar cell (3-5 VDC)
160 ft. (50 m)
60 ft. (18 m) diameter @ 33ft (10m)
mounting height (refer to diagrams)
(operation from empty energy storage)
5 minutes @ 200 lux
1.5 hours @ 2000 lux
3 hours per 24 hours @ 200 lux
25 hours @ 200 lux
80 hours
(after full charge)
50 lux (for auto-off only)
20 yrs
(with 200 lux for 2 hrs/day, 7 days/week)
15 yrs
(with 65 lux for 5 hrs/day, 7 days/week)
6.5 yrs
2 minutes
10 and 30 minutes since last motion
Disabled by default
Enabled = heartbeat @ 1 hr interval
(after unnocupied messages)
A5-07-01 (EEP)
902 MHz (EOSCU)
868 MHz (EOSCA)
928 MHz (EOSCJ)
6.30" L x 2.35" W x 1.47" D
(160mm x 60mm x 37mm)
4.4 oz. (125 g)
10-33 feet ( 3-10m ) recommended
Indoor use only
14° to 104°F (-10° to 40°C)
20% to 95% relative humidity
(non-condensing)
FCC, IC, RoHS, CE, R&TTE
Page 1
