HQ RC UNI/AIRCO3 - Remote Control Manual

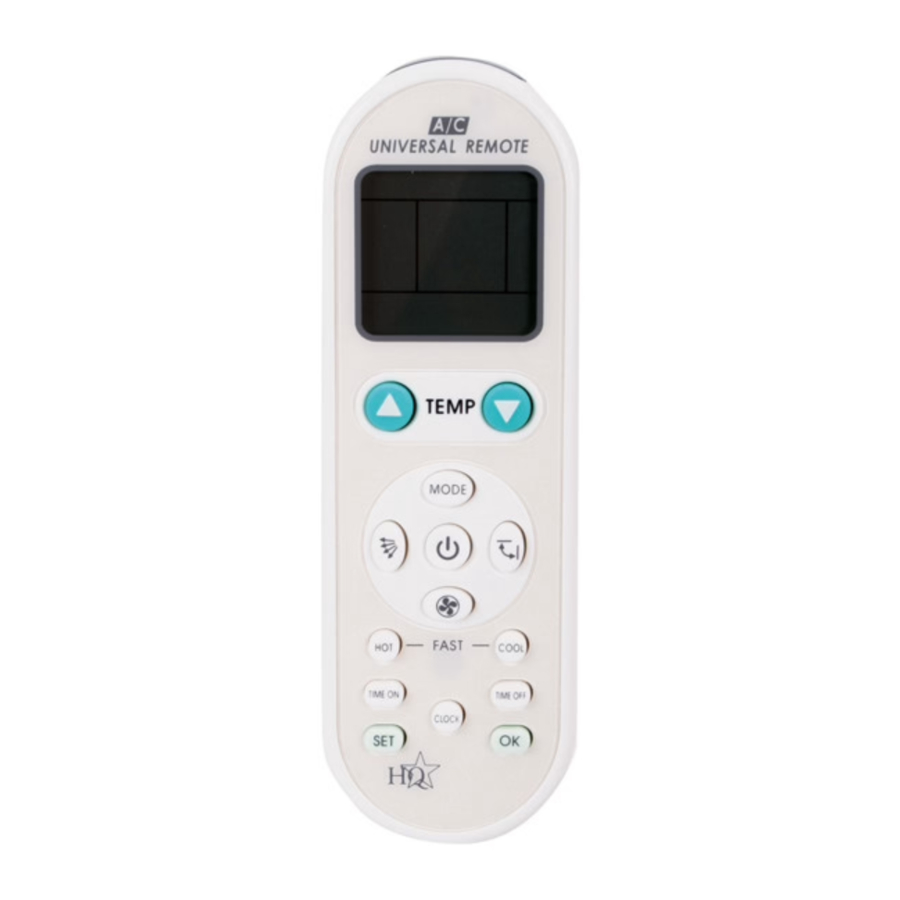

Panel description

1. Run mode display
2. Signal sending display
3. Blowing direction display
4. Model code
5. Temperature "-" key
6. Mode key
7. Automatic blowing direction control key
8. Power key
9. Fast cool key
10. Timing off key
11. Enter key
12. Clock function key
13. SET
14. Timing on key
15. Fast heat key
16. Fan key
17. Blowing direction control key
18. Temperature "+" key
19. Fan display
20. Temperature display

Installing the batteries

Remove the battery cover of the remote control and install two AA size batteries.

Install the battery cover. The time will appear in the left corner of the LCD display.

Set up instructions

Method A: digital automatic search set up.

1. Turn on air conditioner and aim the remote control directly at it

2. Hold the "SET" button until the code changes in the mode window. Then release it. The system will switch to automatic search and the code will increase with 1 unit every two seconds. Pay attention to the air conditioner. Keep searching until the air conditioner automatically turns on/off. Press the 'ENTRY'key to finish set up.

Method B: direct code setup.

1. Refer to the CODE FORM and find the number corresponding with your brand.
   Power on the air conditioner by hand. For example: INYCIN is code 188-190.
2. Hold the "SET" button( for about 3 seconds) until the code flashes in the display.
   Press temperature "+" or "-" until the code you want to choose is shown.
3. Press "ENTER" and the code stops flashing.
4. Check whether the keys on the remote control work normally. If not, repeat steps b-d until a suitable code is found.

Timing on/off function

Press "Timing on" key to increase the starting time for the air conditioner by 1 hour. The displayed time is the time when the air conditioner will automatically be switched on. Pressing "Timing off" key will delay the time the air conditioner will be turned off by 1 hour each time the key is pressed. The timing function uses a 15 h indication to show and set up the time.

Fast cool/Fast heat function

Press the "Fast cool" key to automatically set the air conditioner to 21 degrees C, middle wind, automatic blowing direction. Or, press the "Fast heat" key to automatically set the air conditioner to 27 degrees C, middle wind and automatic blowing direction.

Notes

Make sure the air conditioner is in working order. Be aware that the remote control cannot increase the function of the air conditioner. If the remote control will not be used for a long time, make sure to remove the batteries to prevent damage to the remote control.

Safety precautions:
To reduce risk of electric shock, this product should ONLY be opened by an authorized technician if service is required. Disconnect the product from mains and other equipment if a problem should occur.

Warranty:
No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:
Designs and specifications are subject to change without notice.

This company reserves the right to interpretation of the User's Manual.

Design and technical parameters may vary without notice.
