NOTE: This In-Tank Fuel Pump Kit can be used with any EFI or carbureted
application when the proper bypass regulator is used.
Warning: Caution must be observed when
installing any product involving fuel system parts
or gas tank modifications. Work in a well-
ventilated area with an approved fire extinguisher
readily available. Eye protection and other safety
apparel should be worn to protect against debris
and sprayed gasoline. We recommend having
this installation performed by an experienced,
qualified, and FiTech approved automotive
technician. The finished installation must be
thoroughly checked for any fuel system leaks.
The fuel system is under pressure, so be sure to
relieve the pressure before opening the fuel
system. All safety precautions must be observed
when working with fuel.
This instruction manual is designed to get you up and running with your FiTech Go Fuel In-Tank Fuel
Pump Kit. Please read the full instruction manual before beginning your installation. For technical
assistance with your FiTech Go Fuel In-Tank Kit, call 951-340-2624 or email

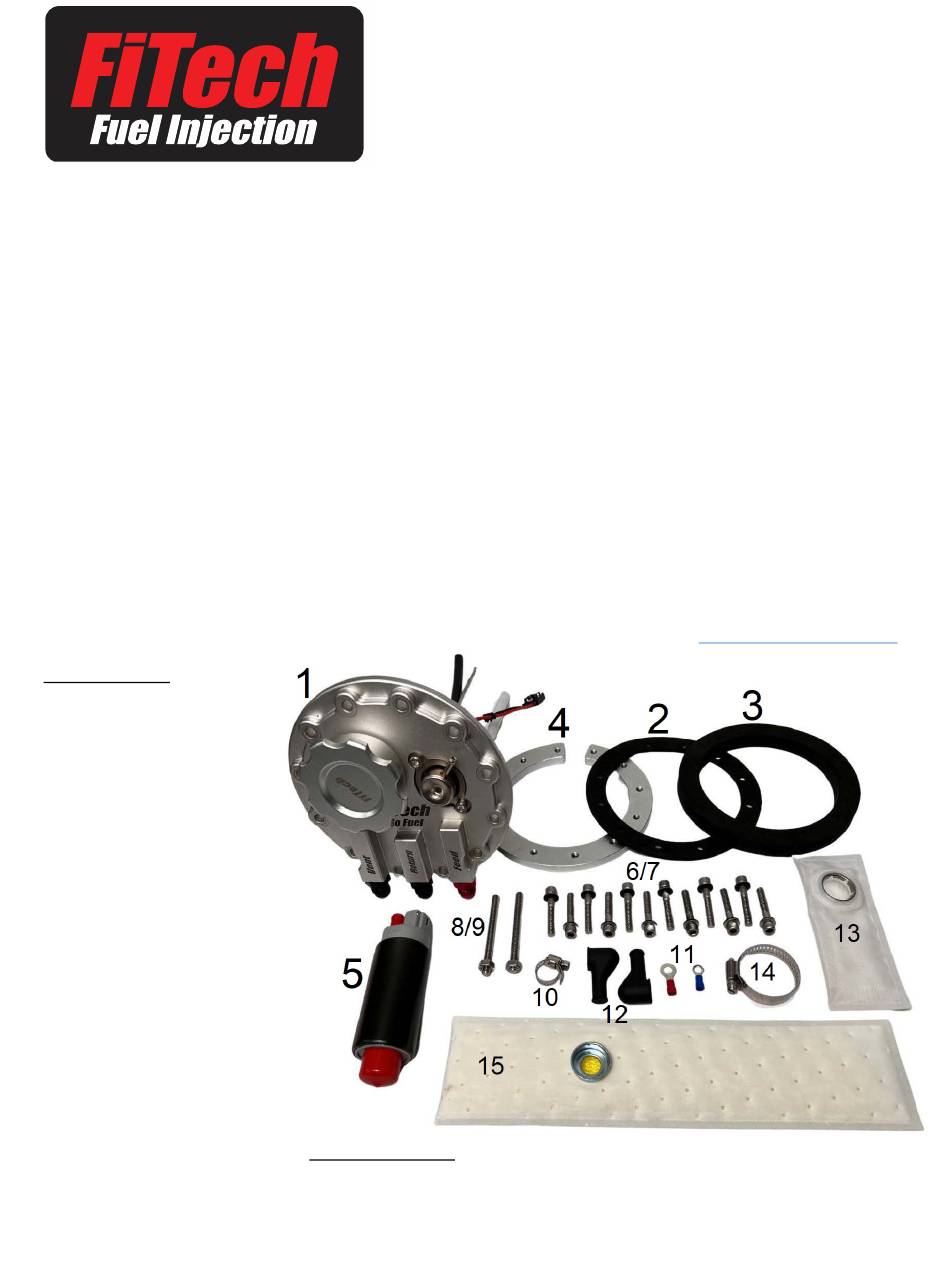

Kit Contents
1. Pump Main Assembly
2. Thin Foam Gasket
3. Thick Foam Gasket
4. C-Ring
5. High Flow Fuel Pump (qty
2 in 50020 Kit)
6. (12) #14 Sealing washer
7. (12) 1/4-20 x 1.5" allen bolt
8. (2) 1/4-20 x 3" threaded
stud
9. (2) 1/4-20 nut
10.
Fuel Hose Clamp (qty 2
in 50020 Kit)
11.
(2) Electrical connectors
(qty 4 in 50020 Kit)
12.
(2) Rubber Boots (qty 4
in 50020 Kit)
13.
Filter Sock V1 (qty 2 in
50020 Kit)
14.
Pump mounting clamp
(qty 2 in 50020 Kit)
15.
Filter Sock V2 (qty 2 in
50020 Kit)
Instructions # 50019/50020
Go Fuel In-Tank Retrofit Kit
Unpack the kit
Carefully unpack the components of your # 50019/50020 kit. Lay parts
out on table and compare with Kit contents above to confirm all parts are
in kit.
1
Caution: Before starting this installation be sure
the negative terminal is disconnected from the
battery, you have proper eye protection, a fire
extinguisher handy, and that you are working with
a clean and free of combustible fumes fuel tank.
The installation of fuel related components should
be done in a well-ventilated area free of any
possible fire hazards. Gasoline fumes are toxic
and highly flammable. Drilling and grinding can
be a potential ignition source. Smoking is
prohibited and extinguish any open flames. Start
with a new fuel tank or have the fuel tank
professionally cleaned for the safest install.
Failure to comply with these warnings could result
in injury or death.
techmail@fitechefi.com
Advertisement
Table of Contents
Related Manuals for FiTech 50019
Summary of Contents for FiTech 50019
- Page 1 This instruction manual is designed to get you up and running with your FiTech Go Fuel In-Tank Fuel Pump Kit. Please read the full instruction manual before beginning your installation. For technical assistance with your FiTech Go Fuel In-Tank Kit, call 951-340-2624 or email techmail@fitechefi.com...
- Page 2 Be careful not to mix 45° SAE fitting and 37° AN fittings, they look similar but will not work together. 45° SAE fittings usually come from a hardware store or auto parts store while 37° AN fittings are the ones supplied by FiTech and most speed shops.
- Page 3 Caution: Wear eye protection and ensure tank is free of combustible fumes!! Have a radiator shop boil out the tank. If installing into Fuel Cell with 12 Bolt Flange already drilled skip to Installing the C-Ring on next page. Drilling the hole: 1.
- Page 4 Installing C Ring 1. Place and center C-Ring on top of recently cut hole. Use the C- ring as a template, to mark the (12) 9/32" holes in the tank. Set C-ring aside, drill and deburr the holes. (Figure 3) 2.
- Page 5 6. Measure depth of tank and determine where pump needs to be positioned vertically (Figure 7.) Once you have determined proper pump location so that filter sock will be within an 1/8" of the bottom of the tank when installed, cut the opaque hose and metal support rod to the desired length (Figure 8 &...
- Page 6 This warranty gives you specific legal rights. You may also have other rights which vary from state to state. If the product is in the FiTech facility for repair, the amount of time the product is in repair will be added to the existing warranty period.
