Summary of Contents for APG Photoneo

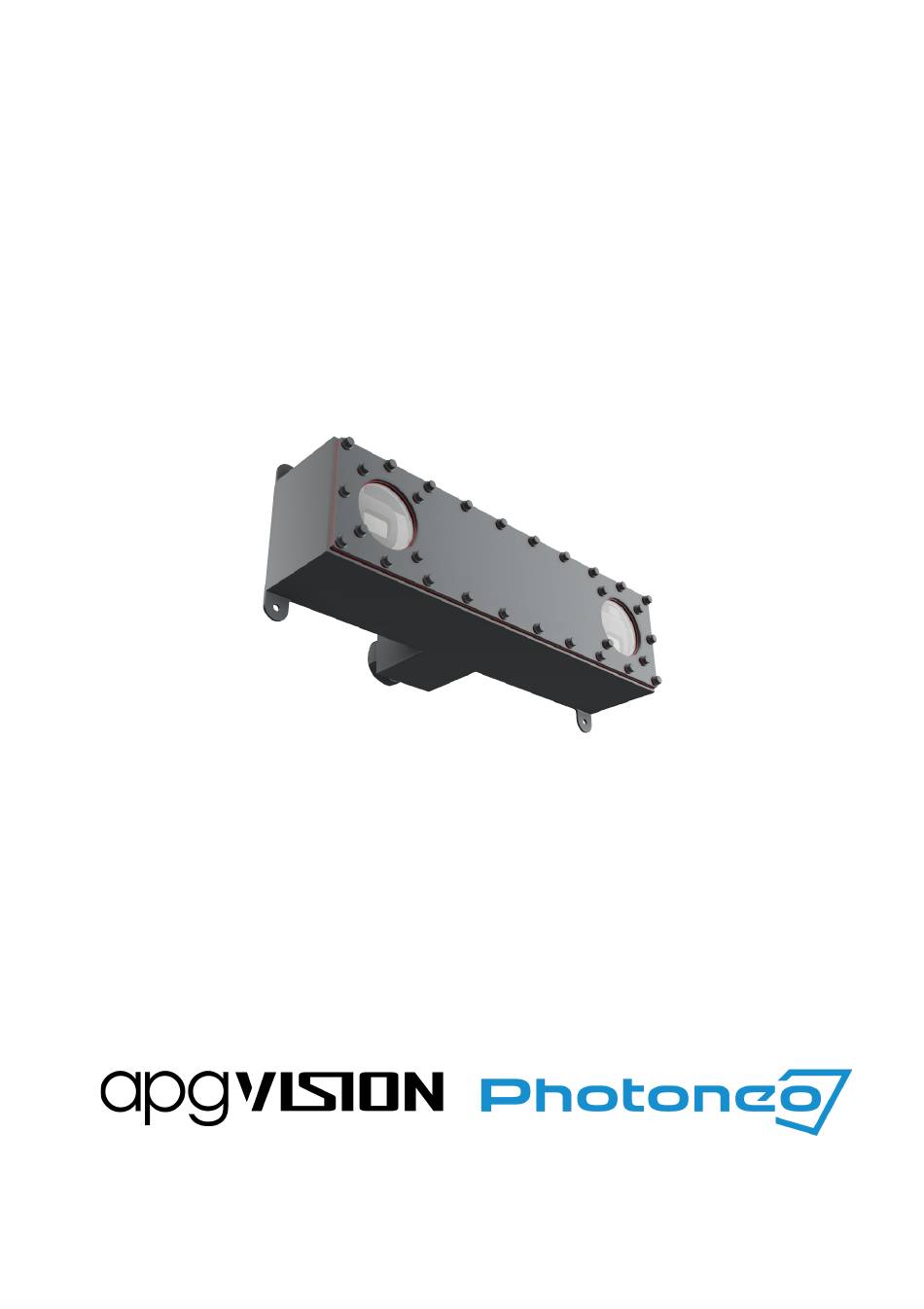

- Page 1 Photoneo 3D Sensor Enclosure by APG Instruction Manual...
-
Page 2: Scope Of Delivery
The IP67 enclosure was designed to protect Photoneo’s PhoXi 3D Scanner and MotionCam-3D (Color) in harsh industrial environments. This enclosure was developed by APG Vision in cooperation with Photoneo. This guide provides instructions on how to operate the Photoneo 3D Sensor inside the enclosure while ensuring the performance of the device. - Page 3 Enclosure 2019-10 ○ Enclosure 2023-02 ○ Formfactor XL (PhoXi 3D Scanner XL only) ■ Enclosure 2019-10 ○ Photoneo 3D Sensors device resources Datasheets ● Device manuals ● Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 3 / 14...
- Page 4 06/2023 Using the Photoneo 3D Sensor Inside the Enclosure Temperature regulation It is recommended that the Photoneo 3D Sensors are kept within the temperature ranges explained in the device documentation Cooling the Photoneo 3D Sensor Photoneo 3D Sensors are designed for natural convection cooling. This type of cooling is significantly inhibited inside the enclosure, therefore the scanner requires additional cooling methods.
- Page 5 208 µm 202 µm * z-axis of the scanner is perpendicular to the front plane of the carbon body ** all points appear to be closer Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 5 / 14...
-
Page 6: Installation Instructions
Loosen the bracket screws, so there is a 1 mm gap between the L brackets. Apply the 8 mm wide thermal pad as shown below. The headless screws shall protrude 1.5 mm from the inner side. Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 6 / 14... - Page 7 The 2 headless screws from each side should be gently touching the rim of the aluminum scanner caps. This helps you to find the correct position of the bracket. Tighten the two bigger screws using an Allen key. Do not tighten the small headless screws. Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 7 / 14...
- Page 8 06/2023 2.3 Mounting the Mounting Bracket on the 3D Sensor Fit the mounting bracket to the 3D Sensor. Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 8 / 14...
-
Page 9: Preparing The Enclosure
06/2023 3. Preparing the Enclosure Unscrew all bolts on the outer rim of the front plate. Do not unscrew the bolts around the glass windows. Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 9 / 14... - Page 10 06/2023 Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 10 / 14...
-
Page 11: Installing The Cables
The following instructions on how to correctly prepare the cable glands are taken from the APG instruction manual Always follow the current version of these instructions provided by APG Vision.. Determine the diameter of the cable(s) you want to run into the enclosure ■... - Page 12 06/2023 6.1 Securing the 3D Sensor Inside the Enclosure Install the bolts to hold the brackets. Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 12 / 14...
- Page 13 06/2023 6.2 Closing the Enclosure Replace the front plate. Install all bolts, and tighten them evenly. Don’t use excessive force. Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 13 / 14...
- Page 14 Photoneo s. r. o. 4055 Alpha Drive, Allison Park, PA 15101 Plynárenská 6, 82109 Bratislava, Slovakia E-mail: sales@apgvision.com E-mail: sales@photoneo.com Phone: 412-487-8211 Web: www.photoneo.com Web: www.apgvision.com Help Center IP67 Enclosure for Photoneo 3D Sensors - Instruction Manual 14 / 14...
