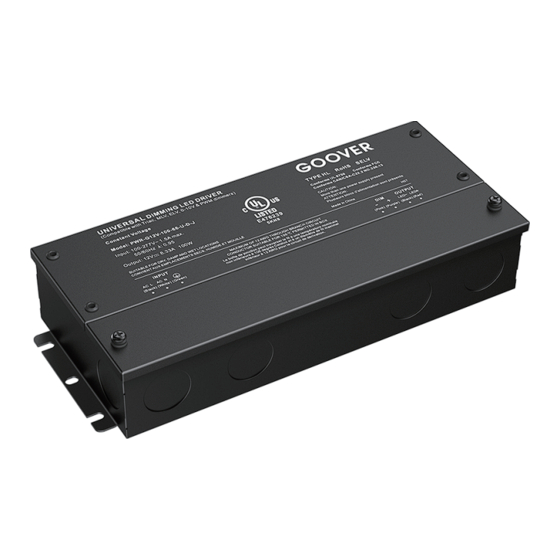

GOOVER PWR-G12V-030-66-U-D-J User Manual

GOOVER
USER GUIDE
UNIVERSAL DIMMABLE LED DRIVER
V1.2022.10
FEATURES
Constant voltage output
Auto reset breakers, from short circuit,
overloading,& over temperature
Variable Input Voltage, 100-277VAC
Load 10-100%
Compatible with Triac, MLV,ELV,0-10V,
&PWM Dimmers
Dry & Wet location
Flicker-free dimming
5 year Warranty
Cooling by free air convection
Full protection metal case
TECHNICAL INFORMATION
PWR-G12V-030-66-U-D-J PWR-G12V-060-66-U-D-J PWR-G12V-100-66-U-D-J PWR-G12V-150-66-U-D-J
< 1 >

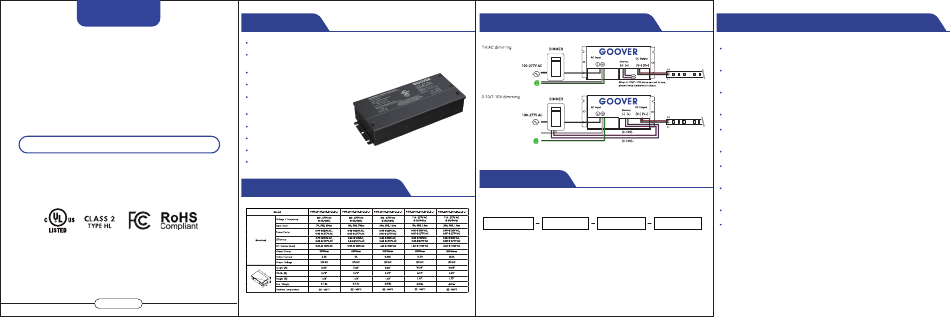

GENERAL WIRING DIAGRAM
MODEL/SKU
MODEL/SKU
OUTPUT POWER
PWR-G12V-300-66-U-D-J
PWR G12 030
12 - 12 VDC 30W
60W
100W
150W
300W
< 2 >
READ BEFORE INSTALLATION RISK OF SHOCK
If direct wiring to a 120 volt circuit with an ac dimmer turn off power at circuit
breaker before installing.
LED Fixture
Always connect (+) to positive and (-) to negative. Make sure positive never
touches negative while powered.
Allow ventilation,do not install in an airtight compartment.Cooler surrounding
air temperatures extend driver life.
LED Fixture
Operate only within temperature range of 4°F (-20°C) to 104°F(40°C).
Wiring must be in accordance with national & local electrical codes -low-voItage
Class 2 circuit.
Mount the driver flat to the surface to provide heat transfer for better cooling.
It is normal for driver to feel warm to the touch,especially when under a full
wattage load.
For wire runs inside walls, use certified CL2 or better cabling and appropriate
mounting hardware.
SERIES Never connect 2 LED drivers to a single run of LED strips.
66-U-D-J
Total wattage of LED fixtures connected to driver must not exceed wattage
rating of this unit.
If you don't know the wattage rating of your lighting,
ask the manufacturer of your lighting.
< 3 >
