Summary of Contents for hh global iQOS M DISPLAY BAR ANALOGIC

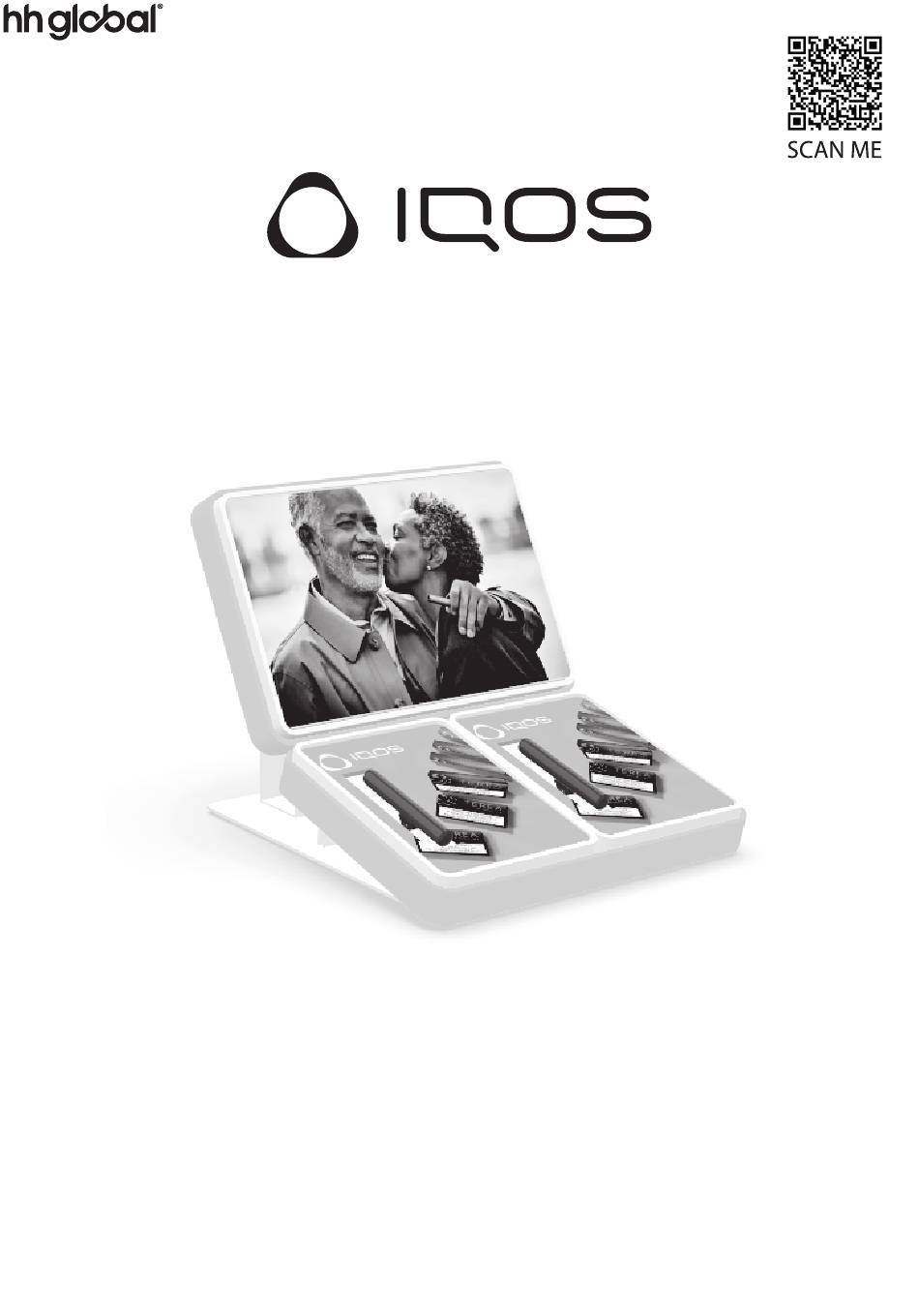

- Page 1 INSTRUCTION MANUAL M DISPLAY BAR ANALOGIC...
- Page 3 INSTRUCTION MANUAL M DISPLAY BAR ANALOGIC A (x2) B (x4) C (x1) E (x2) F (x2) D (x2) H (x12) I (x8) G (x1) DIN 7991 10mm DIN 7991 20mm J (x8) K (x12) DIN 1587 DIN 934 WARNING. IMPORTANT: KEEP INSTRUCTIONS FOR FUTURE REFERENCE. Read the instructions before assembling the product.
- Page 4 Holders should be positioned according the openings in the graphic inlays. WARNING: The small tower should be screwed using this holes.
- Page 5 Behind one of the trays you should nd a magnet. Put the allen key there to prevent it from getting lost. Put the graphic inlays (not included in the kit) Pocket charger according to the planned layout. / One / VEEV / lil SOLID.
- Page 6 The inserts can be exchanged:...
