Air Science Purair
Advanced Fume Hoods
Includes the EDU-ADA and
EDU-CLASSIC Fume Hood Lines
USER OPERATION MANUAL
Air Science Manual Revision No.:
PURAIR-ADVANCED-SERIES.V4.2021

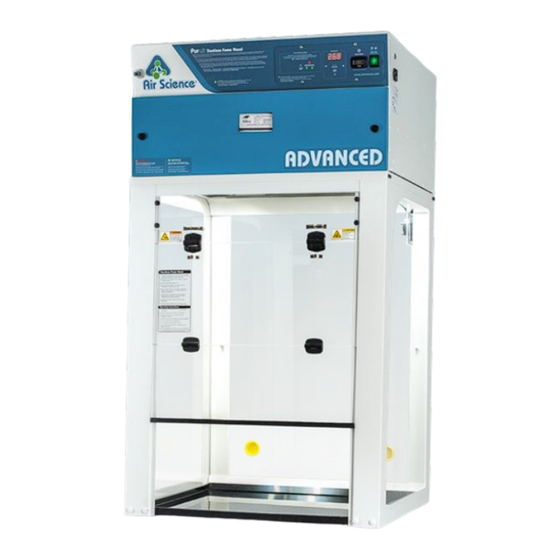

pictured: Model P10-XT with optional
Specifications are subject to change without notice or obligation
on the part of Air Science. For questions contact Air Science.
FSA/Autocal Controller
Advertisement
Table of Contents
Summary of Contents for Air Science Purair P10-XT
- Page 1 EDU-CLASSIC Fume Hood Lines USER OPERATION MANUAL pictured: Model P10-XT with optional FSA/Autocal Controller Air Science Manual Revision No.: PURAIR-ADVANCED-SERIES.V4.2021 Specifications are subject to change without notice or obligation on the part of Air Science. For questions contact Air Science.
-
Page 2: Table Of Contents
VIII. Specifications ..............32 Air Science... -
Page 3: Safety Warnings / Symbols
The disposal and/or emission of substances used in connection with this cabinet may be governed by var- ious local regulations . Familiarization and compliance with any such regulations are the sole responsibility of the users of the cabinet . The liability of Air Science is limited with respect to user compliance with such ®... -
Page 4: Warranty
Register your new Air Science product online by visiting: www.airscience.com/warranty-registration . Customer Satisfaction Survey Air Science values your business, so your satisfaction is important to us. To help serve you better, please take a few minutes to complete our Customer Satisfaction Survey . -
Page 5: Product Information
Advanced Series ductless fume hoods are a series of high efficiency products designed to protect ® the user and the environment from hazardous vapors generated on the work surface . At the heart of the Purair fume hood product line is the innovative Air Science Multiplex Filtration Technology that creates a safe work ™... -
Page 6: Packaging Contents
Test Report In case this manual and/or test report is lost or misplaced, Air Science retains a copy in our files. A replace- ment copy can be obtained by contacting Air Science and providing the cabinet model, serial number and a brief description of the information desired. -
Page 7: Installing Your Cabinet
» Always ensure unit is connected to a reliable and properly grounded receptacle . » Appliance inlet on this device is disconnect device; appliance should not be positioned so that it is difficult to operate it. Air Science 120 6th Street Fort Myers, FL 33907... -
Page 8: Installing Your Cabinet
• Observe the necessary precautions when relocating the cabinet, as it is heavy . • Warning - Tipping Hazard . Pushing high up on the unit may cause system to tip over . Be careful when moving . Move with assistance only . Air Science 120 6th Street Fort Myers, FL 33907... -
Page 9: Set Up
9 \ USER OPERATION MANUAL: Purair Advanced Series 3 .4 Set Up Your Air Science product is shipped in two parts . The following instructions and photos (shown is a Purair Advanced P15-XT) explain how to: Assemble the base “enclosure” and place the head unit (fan and controls) on top: • Fit the main filter and the pre-filter. - Page 10 Filter Installation 4. Locate white pre-filter cloth and metal pre-filter tray. Lay pre-filter on the tray with raised edges pointed upward . 5. Open the sash and lift pre-filter tray into the inlet cutout . Rotate the wing nuts on each side to support the tray . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com...
- Page 11 7 . Place the wheels of the main carbon/HEPA filter on the track and push all the way in. If unit has separate HEPA and carbon filters, stack the carbon filter on top of the HEPA filter and install. 8. Once in place, turn handles to secure filter. 9 . Re-install door and lock cam locks using filter door key. The dimples on the locks should be aligned . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com ®...
- Page 12 13 . Attach power cord to the inlet on the right side of the head unit and connect to appropriate power source . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com...
- Page 13 ± 5% of full scale from 0-100 fpm and ± 10% from 100 fpm to 400 fpm . The permanent mounting bracket provided in the box is not used . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024...
- Page 14 . NOTE: Adjustment screw is made of nylon, so please use care not to damage the screw . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com...
-
Page 15: Performance Validation / Certification
3 .7 Disclaimer The performance of the cabinet, while rigorously evaluated at the factory, cannot be guaranteed after transit and installation . Therefore on-site testing is always recommended . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024... -
Page 16: Operating Your Cabinet
Advanced Control Panel (Standard) The advanced control panel is standard and includes an On/Off switch, Hour Counter with preset alarm intervals for pre-filter and main filter change out and Filter Blockage alarm. If the indicator lamp starts to flash intermit- tently or stays illuminated, the filters are beginning to become blocked and airflow may be reduced to unsafe levels. Check airflow and/or replace filters as needed. Alarm may be reset and tested. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... - Page 17 PIN 1 RED PL1 POWER PIN 2 BLUE PL3 VOLTFREE CONTACT PIN 3 YELLOW PL3 PINS 1 & 2 N/O CLOSED ON ALARM Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com...
- Page 18 The optional FSA controller offers limited detection of low concentrations of hydrocarbon, some gases and organic acids. Audio and visual alarms alert users if filter saturation reaches preset thresholds. An Hour Counter with preset alarm intervals for pre-filter and main filter change out and Low Airflow alarm are also included . Autocal Control Panel (Optional) The optional Autocal controller displays the airflow. Audio and visual alarms alert users if the airflow reaches preset thresholds. An Hour Counter with preset alarm intervals for pre-filter and main filter change out is also included . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com ®...
- Page 19 . » The menu access is code protected . To access, press and hold the MENU OPTIONS button for 4 seconds or a coded button sequence . Air Science 120 6th Street Fort Myers, FL 33907...
- Page 20 ALARM SET XXX.X HOURS 500 HOURS ELAPSED TIME XXX.X HOURS 1000 HOURS FILTER ID XXXXXX 15000 HOURS PRESS MENU TO STORE & EXIT Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com ®...
- Page 21 » LCD backlight contrast can be adjusted by turning VR1 on the display PCB . » The airflow unit can be changed from m/sec to FPM via the airflow units in the menu section. » When in normal running mode, the airflow can be altered; one press of qp will decrease or increase the set point by 0 .05 m/sec . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024...
-
Page 22: Cabinet Operating Procedure
• The electrical equipment in the cabinet such as the lights and controls are not in the dirty air stream of the system. The system should not be used in a flammable room atmosphere. Special modified cabinets can be provided for use in these areas . Contact Air Science for further information on these applications . • Operators should avoid sudden movements within the fume cabinet, such as rapid opening or closing of the sash window, as this may cause temporary reversal of the airflow. -
Page 23: Monitoring
The readings should be below your Country’s Occupational Exposure Limit (see 31) . The results are to be recorded on a service sheet or system log sheet . If a significant amount of chemical is noted at the exhaust of the system, the main filters should be changed. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024... -
Page 24: Maintenance
Ensure that the light diffuser is clean before switching the system on . Check that the light is in working condition . 6.5 Airflow Check and record the inflow air velocity at the working aperture as follows: Using a calibrated hot wire or vane anemometer or similar approved airflow meter, take a minimum of 5 readings across the fume cabinet aperture as shown below. Calculate the average airflow, which should be greater than 0.5 m/sec or 100 fpm +/- 10%. The readings should be recorded on the service sheet or system log . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 25: Filter Condition Monitor (Fitted As An Option)
• Adjust the screw to make the alarm show . You may have to repeat these steps to ensure an accurate setting has been achieved . • Remove the blockage and restart the machine . The red/amber neon should not be illuminated . Air Science 120 6th Street Fort Myers, FL 33907... -
Page 26: Changing Out Filters
Calibration - page 25 . This procedure can be found in 6.9 Airflow Adjustment The speed controller on the cabinet can be accessed behind the main control panel . Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 27: Maintenance Schedule
27 \ USER OPERATION MANUAL: Purair Advanced Series 6 . 1 0 Maintenance Schedule Please follow the suggested maintenance schedule in order to maintain your Air Science cabinet at its opti- mum performance . Monthly Semiannually 1 . Using a damp cloth, clean the exterior surfaces 1. Replace all HEPA filters. -
Page 28: Fault Finding
• Check inlet fuse • Check any loose wires to terminal blocks • Bypass speed controller; if fan works, replace speed controller • Replace fan capacitor • Replace fan Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 29: Component Changing
6 . Unscrew light bulb and replace with new bulb . 7 . Re-install light box cover . 8 . Follow disposal instructions in the back of the manual . 6 . 1 4 Replacement Parts List Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024... -
Page 30: Replacement Parts List
Fan Motor RG190-39/14/2 TDMO-221 Power Supply RSP-200-24 Hour Counter (Gi) N231-0200-0245 Input Power 719W-00/04 Emi Filter 20ERK1 Fuse 0218010 .HXP Pressure Switch 6753-AEJA-U000 Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com ®... -
Page 31: Filter Information
Designed to handle chemicals normally used in a university level chemistry curriculum . Designed for military applications involving war gasses . HEPA/UPLA Powders, particulates and biologicals . Universal filtration. Air Science 120 6th Street Fort Myers, FL 33907 T 239-489-0024 Toll Free 800-306-0656 F 800-306-0677 www.airscience.com... -
Page 32: Specifications
T. 239-489-0024 \ Toll Free. 800-306-0656 \ F. 800-306-0677 right to make periodic minor design changes without obligation to notify any www.airscience.com person or entity of such change. ©2022 Air Science OW 11475.1 07/22 Air Science, Purair, Multiplex and EFT are all registered trademarks of Air Science Corporation...
