INSTRUCTION MANUAL Discharge Gun Mount (03-00061B)

1. Introduction

Thank you for purchasing the discharge gun mount (03-00061B). The product is intended as a
mount to attach a discharge gun for ESD tester calibration. It is compatible with our discharge
guns GT-30R(A),TC-815R,TC-815S.

2. Instructions

Please read this manual for safety information before use. For safety instructions and warranty
terms, refer to the instruction manuals for the static electricity tester and discharge gun. The
product should be handled by persons who understand this manual and static electricity testing
procedures for the safe use of the product.
3

Installation

.
Follow the steps below to install the discharge gun mount to a target mounting board
(03-00052B) or Faraday cage (FC-200).
(1) Fix the discharge gun mount to the target mounting board by using two screws supplied with
the product (M4×25 with spring washer/flat washer).
In case of fix the discharge gun mount to the Faraday cage, using two screws supplied with
the product (M4×16 with spring washer/flat washer).

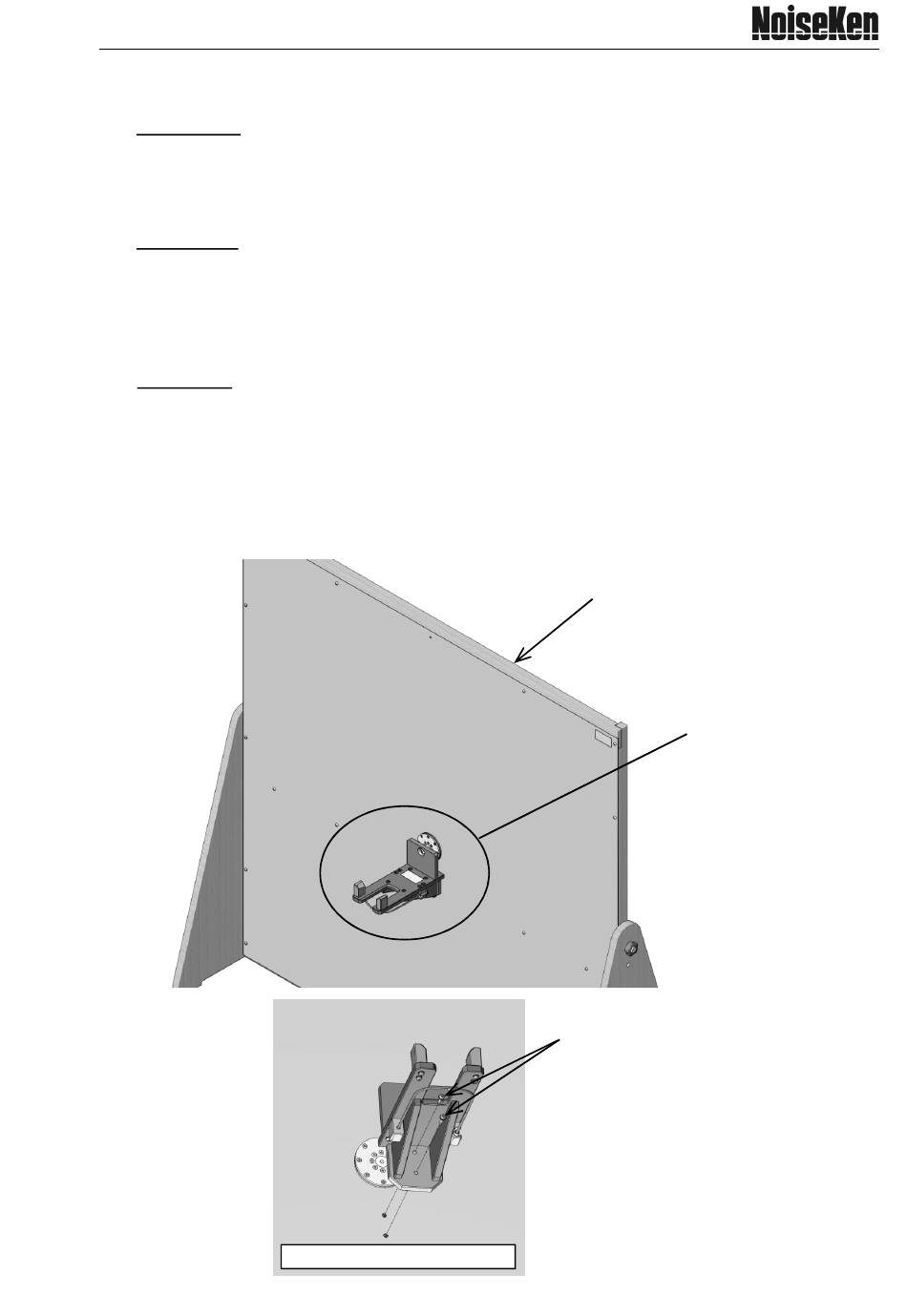

Detailed view of Section A
Target mounting board
(The setup is the same as
with the Faraday cage.)
Screws supplied with the product
1/5
A
E d i t i o n 1 . 0 2
A E C 0 0 2 9 8 - 0 0 E - 0 C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 03-00061B and is the answer not in the manual?

Questions and answers

Summary of Contents for NoiseKen 03-00061B

  • Page 1 INSTRUCTION MANUAL Discharge Gun Mount (03-00061B) 1. Introduction Thank you for purchasing the discharge gun mount (03-00061B). The product is intended as a mount to attach a discharge gun for ESD tester calibration. It is compatible with our discharge guns GT-30R(A),TC-815R,TC-815S.
  • Page 2 (2) Insert the tip of the discharge gun through the hole in the mount and fit the tip end to the concave portion at the center of the target. Target Pointed tip Concave portion at the center of the target Detailed view of Section B * The figure shows the GT-30R(A) discharge gun.
  • Page 3 (3) After placing the discharge gun on the mount, attach the rubber band as shown below. Rubber band Hook the end of the rubber band. Pick up the end of the rubber band. Strap the rubber band on the handle Completed (rubber band hooked) portion of the gun.
  • Page 4 4. Mounting hole dimensions When fixing the discharge gun mount to an object other than the target mounting board or Faraday cage, the user should make mounting holes with the dimensions shown below. Load resistor mounting hole 8-M3 (or 3 .5) Φ...
  • Page 5 Repair and Calibration Center TEL +81-42-712-2051 FAX +81-42-712-2050 E-mail:sales@noiseken.com 6．Notice N o part of this booklet may be reproduced or transferred, in any form, for any purpose, without ・ the permission of Noise Laboratory Co., Ltd.
