Prestel SW-4K42MVS

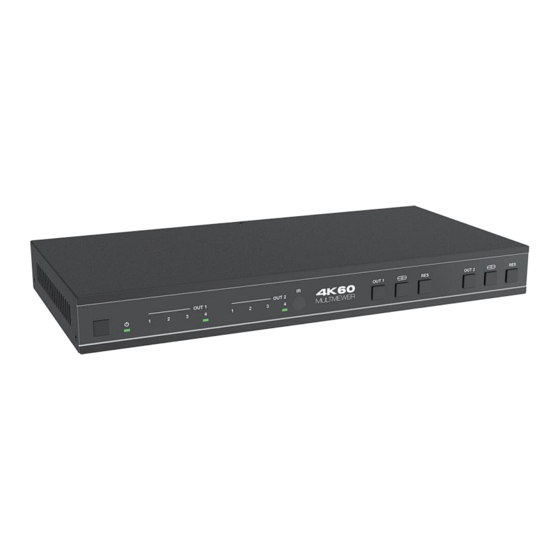

4K60 4x2 Multiviewer Seamless UHD
Video Matrix Switcher
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-4K42MVS and is the answer not in the manual?

Questions and answers

Related Manuals for Prestel SW-4K42MVS

Summary of Contents for Prestel SW-4K42MVS

  • Page 1 Prestel SW-4K42MVS 4K60 4x2 Multiviewer Seamless UHD Video Matrix Switcher USER MANUAL...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction This 4x2 Multiviewer Seamless UHD Video Matrix Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on two screens. It can accept 4 HDMI input digital sources and combine four video signals onto two HDMI UHD or HD monitors independently. The user can manage each input, and create combinations of the four inputs on two displays, as well as adjust the position of any input.

  • Page 4: Package Contents

    3. Package Contents ① 1 x 4K60 4x2 Multiviewer Seamless UHD Video Matrix Switcher ② 1 x IR Remote ③ 1 x 3pin-3.81mm Phoenix Connector (male) ④ 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) ⑤ 2 x Mounting Ears ⑥...

  • Page 5: Operation Controls And Functions

    Connection Input ports 4 x HDMI IN [Type A, 19-pin female] 2 x HDMI OUT [Type A, 19-pin female] Output ports 2 x L/R OUTPUT [RCA] 2 x OPTICAL OUTPUT [S/PDIF] 1 x RS-232 [3pin-3.81mm phoenix connector] Control ports 1 x IR EXT [3.5mm Stereo Mini-jack] Mechanical Housing Metal Enclosure...
  • Page 6 Name Function Description Signal source indicator for the HDMI OUT 1 port. On single screen display mode, when the HDMI OUT 1 port OUT 1 LEDs outputs the signal from the HD 1/2/3/4 port, the corresponding green LED will be on. On multiview mode, all OUT 1 LEDs will light in green.

  • Page 7: Rear Panel

    5.2 Rear Panel OUT 1 OUT 2 INPUT OPTICAL HDMI OPTICAL HDMI HD 1 HD 2 HD 3 HD 4 RS-232 IR EXT DC 12V 9 10 Name Function Description L/R OUT 1 PCM2.0 Analog audio output port. OPTICAL OUT 1 Optical fiber digital audio output port.

  • Page 8: Ir Remote

    6. IR Remote ① Power button: Press this button to power on the switcher or set it to standby mode. OUT 1/OUT 2 buttons: ② HD 1/2/3/4: Press these buttons to select input source on single screen display mode, and the corresponding input LED on the front panel will light in green.

  • Page 9: Edid Settings

    Mute: Press this button to mute / unmute the audio. RES: Output resolution switching button. ▪ Short press the RES button to circularly switch the output resolution of the HDMI OUT 1/2 port (Please refer to the output resolution list of “8.

  • Page 10: Video & Audio

    8. Video & Audio The switcher supports multiple resolution video input up to 3840x2160@60, and supports multiple audio formats (PCM2.0/5.1/7.1CH, Dolby Digital/Plus/ EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio) pass-through function via HDMI cable. The switcher supports following video output resolutions via a powerful scaling engine.

  • Page 11: Osd Menu Navigation

    10. OSD Menu Navigation (1) A total of eight buttons on the IR Remote are used for OSD menu navigation, including OUT 1, OUT 2, Exit, , OK. Menu contents are as follows: 4096x2160p 60Hz/ 4096x2160p 50Hz/ 3840x2160p 60Hz/ 3840x2160p 50Hz/ 3840x2160p 30Hz/ 3840x2160p 25Hz/ 1920x1200p60Hz RB/...
  • Page 12 Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select 4 x WIN Win3 Select HDMI1,HDMI2,HDMI3,HDMI4 Win4 Select HDMI1,HDMI2,HDMI3,HDMI4 1, 2 MODE Full, 16:9 Aspect WIN1,HDMI1,HDMI2,HDMI3, WIN1 Audio Select HDMI4 AUDIO AUDIO-MUTE ON, OFF Language/语言 English, 中文 English 4K60-2.0,4K60-5.1CH, 4K60-7.1CH,4K30-2.0CH, 4K30-5.1CH,4K30-7.1CH, 1080P-2.0CH,1080P-5.1CH, 1080P-7.1CH,1920x1200- 4K60-2.0 2.0CH,1680x1050-2.0CH, EDID 1600x1200-2.0CH,1440x900...

  • Page 13: Rs-232 Command

    11. RS-232 Command The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below.
  • Page 14 Command Code Function Description Example Feedback Output Setting Set Output y Resolution (y=1~2, x=1~14) y=1. output 1 y=2. output 2 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, output 1 resolution: 5. 3840x2160p30, s output y res x! s output 1 res 3! 6.
  • Page 15 Command Code Function Description Example Feedback EDID Setting Set HDMI input EDID mode (x=1~19) 1. 4K2K60_444,Stereo Audio 2.0 2. 4K2K60_444,Dolby/DTS 5.1 3. 4K2K60_444,HD Audio 7.1 4. 4K2K30_444,Stereo Audio 2.0 5. 4K2K30_444,Dolby/DTS 5.1 6. 4K2K30_444,HD Audio 7.1 7. 1080P,Stereo Audio 2.0 8.
  • Page 16 Command Code Example Function Description Feedback Get output y audio mute on/off r output y audio r output 1 audio (y=1~2) output 1 audio mute off mute! mute! 1. output 1 2. output 2 Single Screen Mode Setting Enable/disable auto switch feature(y=1~2,x=0~1) s output y auto s auto switch 0!
  • Page 17 Command Code Function Description Example Feedback Select output z one input for one display window for the current Multiview mode. (z=1~2) 1. output 1 2. output 2 (x=1~4) s output 1 output 1: s output z 1. window 1 2. window 2 window x in y! window 1 in 1! window 1 select HDMI 1...
  • Page 18 Command Code Function Description Example Feedback Get output y PIP window size r output y PIP r output 1 PIP (y=1~2) output 1 PIP size large 1. output 1 size! size! 2. output 2 Set output y PBP windows display mode (y=1~2) s output y PBP s output 1 PBP...
  • Page 19 Command Code Function Description Example Feedback Get output y triple windows display mode r output y triple r ouput 1 triple (y=1~2) output 1 triple mode 1 mode! mode! 1. output 1 2. output 2 Set output y triple windows display aspect ratio (y=1~2) s output 1 triple...

  • Page 20: Application Example

    12. Application Example UHDTV 2 IR Receiver UHDTV 1 OUT 1 OUT 2 INPUT OPTICAL HDMI OPTICAL HDMI HD 1 HD 2 HD 3 HD 4 RS-232 IR EXT DC 12V Power Supply 2.0 Speakers 2.0 Speakers TV box Audio Amplifier Audio Amplifier DVD or Blu-ray Player 18 / 18...
