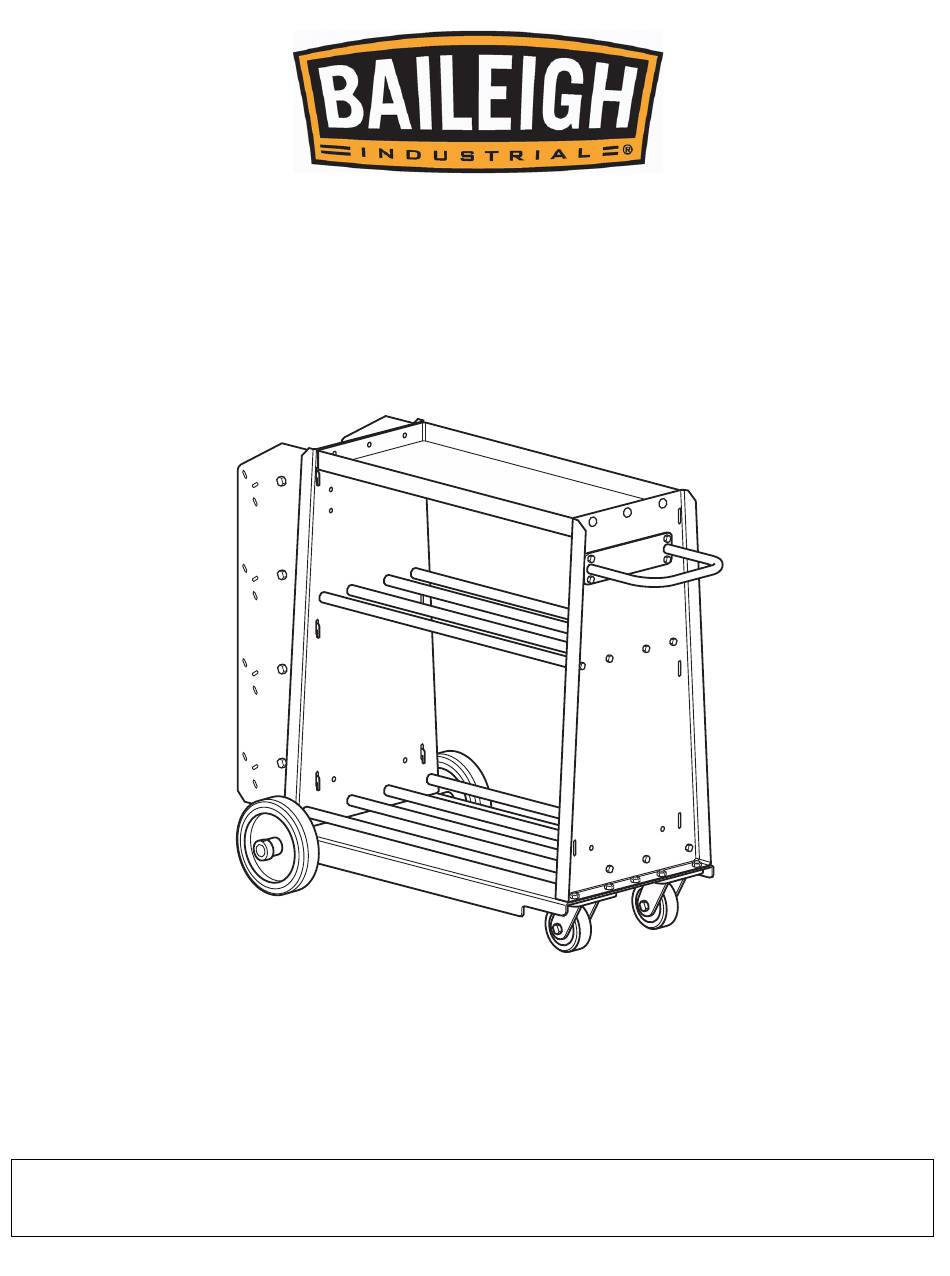

Assembly and Parts Manual
B-CART-TB, B-CART-MF, & B-CART-CM
REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL IS
PROHIBITED. Baileigh Industrial does not assume and hereby disclaims any liability for any damage or loss caused
by an omission or error in this Operator's Manual, resulting from accident, negligence, or other occurrence.
Cart Models
Baileigh Industrial
P.O. Box 531
Manitowoc, WI 54221-0531
Phone: 920.684.4990
Fax: 920.684.3944
Baileigh-Sales@jpwindustries.com
© 2022 Baileigh Industrial
© 2022 Baileigh Industrial
Edition 2 06/2023
Edition 1 04/2022
Advertisement
Table of Contents
Related Manuals for Baileigh B-CART-TB
Summary of Contents for Baileigh B-CART-TB
- Page 1 REPRODUCTION OF THIS MANUAL IN ANY FORM WITHOUT WRITTEN APPROVAL OF BAILEIGH INDUSTRIAL IS PROHIBITED. Baileigh Industrial does not assume and hereby disclaims any liability for any damage or loss caused by an omission or error in this Operator’s Manual, resulting from accident, negligence, or other occurrence.
-
Page 2: Table Of Contents
2.0 General Notes ......................3 3.0 Technical Support ....................4 4.0 Unpacking ........................ 4 5.0 Assembly ......................... 4 5.1 Model B-CART-TB .................... 4 5.2 Model B-CART-MF ................... 7 5.3 Model B-CART-CM ..................10 6.0 Replacement Parts ....................12 6.1.1 B-CART-TB-Exploded View ................. 13 6.1.2 B-CART-TB-Parts List .................. -
Page 3: Important Safety Instructions
After receiving your equipment, remove the protective container. Do a complete visual inspection, and if damage is noted, photograph it for insurance claims and contact your carrier at once, requesting inspection. Also contact Baileigh Industrial and inform them of the unexpected occurrence. Temporarily suspend installation. -
Page 4: Technical Support
3.0 TECHNICAL SUPPORT 5.0 ASSEMBLY 5.1 Model B-CART-TB Our technical support department can be reached at 920.684.4990. Tech Support Clean all rust-protected surfaces with a mild solvent. handles questions on setup, schematics, 1. Using sixteen M10 x 25 Hex Flange Bolts (item warranty issues, and individual parts needs. - Page 5 Handle (item #21) to the Side Panel of the Base (see Figure 4-5). Attach using two (item #3) containing the Baileigh logo plate. Only Round-Head Square-Neck Carriage Bolts (item fully tighten these four bolts and nuts at this #4) and two M10 Nylock Hex Nuts (item #16).
- Page 6 7. On the Axle end of the cart, insert four Round- the Hook Panels (item #7). Make sure to align and Head Square-Neck Carriage Bolts (item #4) insert the tabs on the Angled Trays into the correct through the mounting holes in the Side Panel slots in the Hook Panels.
-
Page 7: Model B-Cart-Mf
3. Insert threaded ends of the Rod (item #9) through 5.2 Model B-CART-MF hole in each Rod Mount (items #8 & #10) and Clean all rust-protected surfaces with a mild solvent. tighten a Rod Knob (item #7) onto each threaded end. - Page 8 5. Turn the cart assembly upside down. CAUTION: Cart is heavy. To avoid injury, use two or more people to turn cart to upside down. Turn the Base (item #12) upside down and place on the cart assembly as shown in Figure 4-15. Make sure the Axle is over the Side Panel that does not have the handle.
- Page 9 9. Attach six Angled Tray Pins (item #21) to each of 11. Insert the six hook tabs on the Angled Tray the four Angled Trays (item #20) as shown in Assembly into the vertical slots on the Side Panel Figure 4-18. Align the threaded hole of each pin (see Figure 4-20).
-
Page 10: Model B-Cart-Cm
3. Insert threaded ends of the Rod (item #9) through 5.3 Model B-CART-CM hole in each Rod Mount (items #8 & #10) and Clean all rust-protected surfaces with a mild solvent. tighten a Rod Knob (item #7) onto each threaded end. - Page 11 Figure 4-26 7. Loosen the set screw (item #17) in the four Limit Rings (item #16) (see Figure 4-27). Slide a Limit Ring over each end of the Axle, followed by a Wheel (item #15) and the remaining Limit Ring. Snug the Limit Rings and Wheels to the Base.
-
Page 12: Replacement Parts
6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately. Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from Baileigh Industrial. -
Page 13: B-Cart-Tb-Exploded View
6.1.1 B-CART-TB – Exploded View... -
Page 14: B-Cart-Tb-Parts List
BA1-671 ........Handle ..................1 BA1-672 ........Hex Flange Bolt, M8 x 20 ............4 BA1-673 ........Top Tray Rubber Mat ..............1 BA1-674 ........Baileigh ID Label (not shown) ........... 1 BA1-675 ........B-CART-TB Capacity Decal (not shown) ........1... -
Page 15: B-Cart-Mf-Exploded View
6.2.1 B-CART-MF – Exploded View... -
Page 16: B-Cart-Mf-Parts List
BA1-700 ........#40 Tooling Insert ..............28 BA1-701 ........R8 Tooling Insert ..............28 TS-2311061 ......... Hex Nut, M6 ................8 BA9-PP1912 ........ Baileigh Logo Plate ..............2 BA1-706 ........Baileigh ID Label (not shown) ........... 1 BA1-707 ........B-CART-MF Capacity Decal (not shown) ......... 1... -
Page 17: B-Cart-Cm-Exploded View
6.3.1 B-CART-CM – Exploded View... -
Page 18: B-Cart-Cm-Parts List
BA1-700 ........#40 Tooling Insert ..............28 BA1-701 ........R8 Tooling Insert ..............28 TS-2311061 ......... Hex Nut, M6 ................8 BA9-PP1912 ........ Baileigh Logo Plate ..............2 BA1-702 ........Baileigh ID Label (not shown) ........... 1 BA1-703 ........B-CART-CM Capacity Decal (not shown) ......... 1... -
Page 19: Warranty
7.0 WARRANTY Thank you for your purchase from Baileigh Industrial. We hope you find it productive and useful for a long time to come. Inspection & Acceptance. Buyer shall inspect all Goods within ten (10) days after receipt thereof. Buyer’s payment shall constitute final acceptance of the Goods and shall act as a waiver of the Buyer’s rights to... - Page 20 • You must obtain a Baileigh Industrial issued RGA number PRIOR to returning any materials. • Returned materials must be received at Baileigh Industrial in new condition and in original packaging. • Altered items are not eligible for return.
- Page 21 NOTES...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 BAILEIGH INDUSTRIAL 1625 D , WI 54220 UFEK RIVE ANITOWOC : 920.684.4990 F : 920.684.3944 HONE www.baileigh.com...
