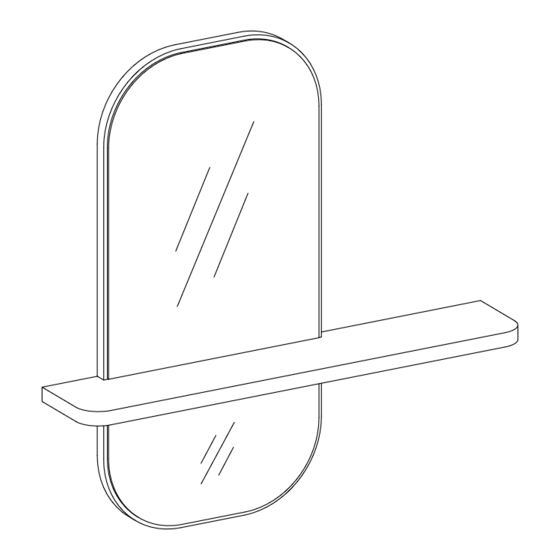

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−6349 V0.02.02.23 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: Let's Get Started
Mending Plate What you need: Phillips Head Screwdriver Phillips You may also need: + Power Drill + Level Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 6... - Page 3 Step 1 H A R D WA R E Cam Bolt Ø7.5 x 32 mm Plastic Dowel Ø8 x 32 mm Screw M 6 x 13 mm Screw M 4 x 12 mm Hanging Plates Mending Plate C O M P O N E N T S Top Mirror Board Bottom Mirror Board Shelf...
- Page 4 Step 3 H A R D WA R E Cam Lock Ø15 mm C O M P O N E N T S Bottom Mirror Board Shelf Step 4 H A R D WA R E Screw M 4 x 12 mm C O M P O N E N T S Bottom Mirror Board PAGE 4 OF 6...
- Page 5 Step 5 Different wall materials require unique wall fasteners. H A R D WA R E The wall plugs ( I ) and screws (C) are designed for fixing to concrete walls only. Screw M 8 x 38 mm Please consult your local hardware store to ensure you Fisher Ø8 mm are using the correct hardware for your wall type.
-
Page 6: Connect With Us
Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 6 OF 6...
