Summary of Contents for Dea DIGIRAD N

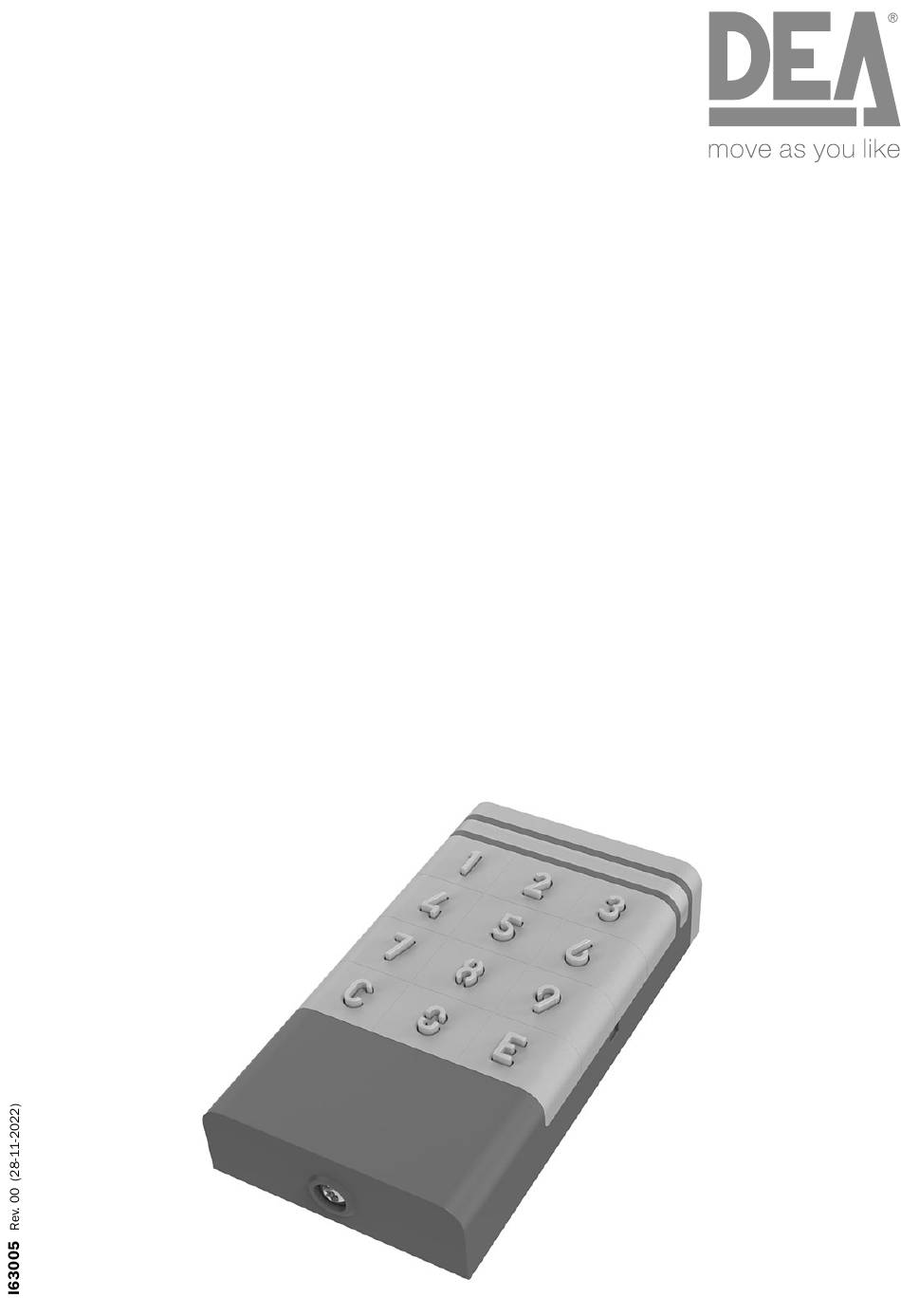

- Page 1 DIGIRAD N...
-
Page 2: Warnings Summary
DIGIRAD N DIGIRAD N Radio digital selector Operating instructions and warnings Summary Warning summary Available functions Product description Settings Technical data Connection with APP Installation and assembly Battery status and replacement check Simplifi ed programming menu Product Disposal 1 WARNINGS SUMMARY... -
Page 3: Product Description
The selector can work both indoors and outdoors and being powered by batteries, it does not require wiring. The integrated circuit has 2 distinct serial numbers. The fi rst S/N_D (device serial number) is used to identify the selector within the DEA System NET-LINK ecosystem and cannot be changed, the second S/N_R (radio serial number) is used to send commands to the paired devices by simulating the operating logic of a 4-buttons remote. - Page 4 In general, after changing a value in functions 3-4-5-9 it will automatically return to the HOME level. In the case of functions 1 and 2, on the other hand, after adding (or deleting) the fi rst code and assigning a channel, DIGIRAD N will wait...
-
Page 5: Available Functions
6.3 Memorization on DEA SYSTEM devices DIGIRAD N is factory programmed with 4 access codes, in order to allow a fi rst rapid programming on control units or receivers with 433MHz radio frequency and set in HCS (Rolling-code or Fixed-code) encoding:... - Page 6 DIGIRAD N 6.6 Adding Access Codes (Direct Access Mode) If a code is memorized in “direct access” mode, that code can activate the associated radio channel at each entry. Simply activate the numeric keypad and enter the code without any other confi rmation key, the radio command will be sent immediately.
-
Page 7: Deleting Codes
It is possible to perform the cancellation of a single code or a total cancellation of all stored codes. For example, after the fi rst pairing of DIGIRAD N on any DEA SYSTEM device you want to control, it is always recommended to delete the 4 factory codes for security reasons. -
Page 8: Backlight Time-Out
Normally the radio coding is defi ned at the beginning of the installation. However, if there is a need to change the radio coding after installation, any previously stored codes will continue to work correctly. In any case, DIGIRAD N must be memorized again on the control unit or on the receiver (see paragraph 6.3). 7.2 Backlight logic For the backlight of the numeric keypad, there are 2 options available: Always OFF (Key LEDs always off);... -
Page 9: Code Length
Exit programming mode (C key for 5s) If a previously set installer code is lost, access to DIGIRAD N programming will be denied. In this case, it will still be possible to perform a total reset of the device but it will be necessary to access the batteries by following the steps below: Total reset with access to the BATTERIES •... -
Page 10: Product Disposal
DIGIRAD N 8 CONNECTION WITH APP If you have a smartphone with the DEA System APP installed, it will be possible to put DIGIRAD N in communication with the latter. Follow the steps below: • Activate the keypad and press the 0 key;... - Page 11 DIGIRAD N min. 1,5m...
- Page 12 DIGIRAD N Fisher S6 Ø4.2x16 Ø4.2x32 guarnizione in silicone - silicone gasket - joint cuscinetto isolante - insulating pad - coussin en silicone - Silikondichtung - junta de silicona isolant - Isolierunterlage - almohadilla aislante - junta de silicone - silikonowa uszczelka -...
