VIU Windsor Space Technology Manual

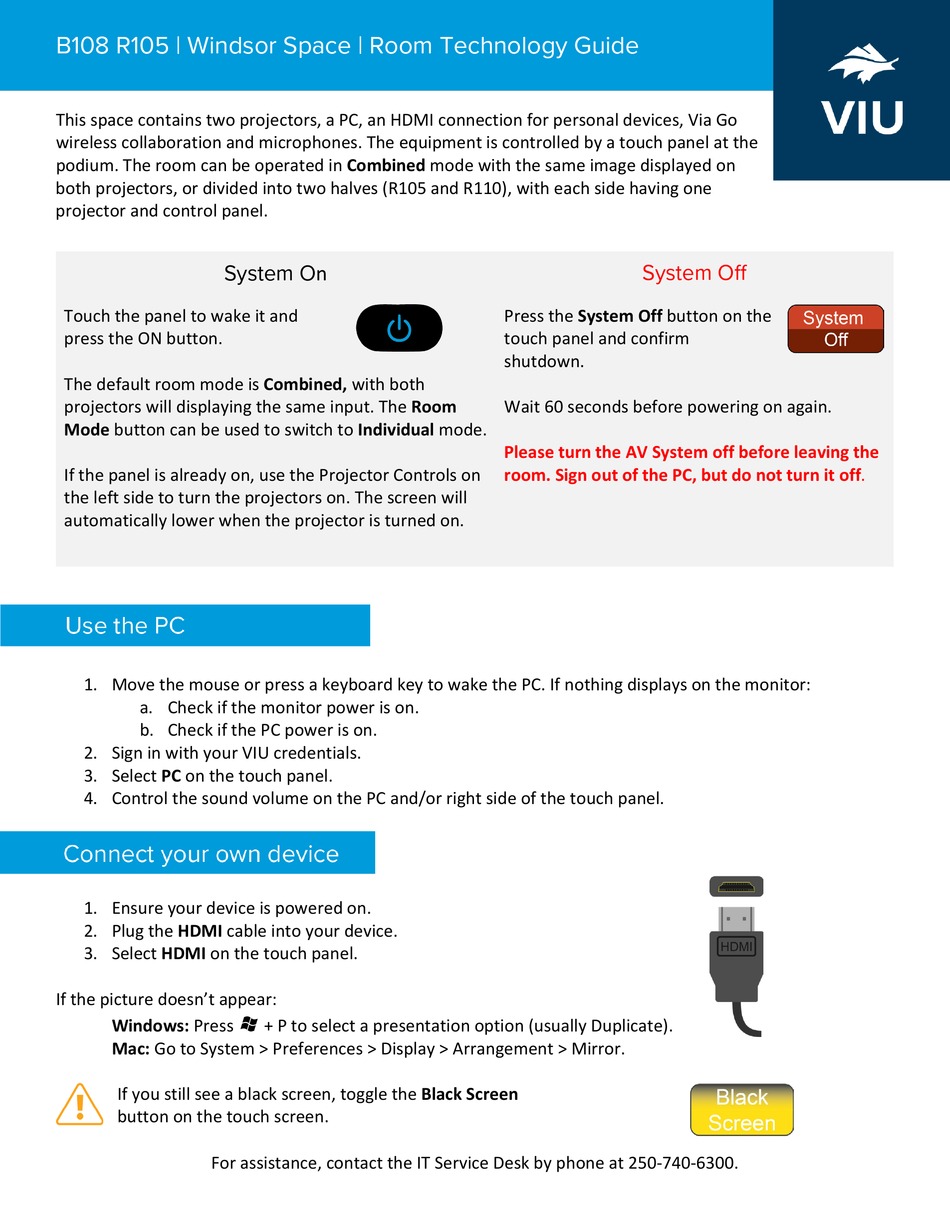

B108 R105 | Windsor Space | Room Technology Guide
This space contains two projectors, a PC, an HDMI connection for personal devices, Via Go
wireless collaboration and microphones. The equipment is controlled by a touch panel at the
podium. The room can be operated in Combined mode with the same image displayed on
both projectors, or divided into two halves (R105 and R110), with each side having one
projector and control panel.
System On
Touch the panel to wake it and
press the ON button.
The default room mode is Combined, with both
projectors will displaying the same input. The Room
Mode button can be used to switch to Individual mode.
If the panel is already on, use the Projector Controls on
the left side to turn the projectors on. The screen will
automatically lower when the projector is turned on.
1. Move the mouse or press a keyboard key to wake the PC. If nothing displays on the monitor:
a. Check if the monitor power is on.
b. Check if the PC power is on.
2. Sign in with your VIU credentials.
3. Select PC on the touch panel.
4. Control the sound volume on the PC and/or right side of the touch panel.
1. Ensure your device is powered on.
2. Plug the HDMI cable into your device.
3. Select HDMI on the touch panel.
If the picture doesn't appear:
Windows: Press
Mac: Go to System > Preferences > Display > Arrangement > Mirror.
If you still see a black screen, toggle the Black Screen
button on the touch screen.
For assistance, contact the IT Service Desk by phone at 250-740-6300.

+ P to select a presentation option (usually Duplicate).
System Off
Press the System Off button on the
touch panel and confirm
shutdown.
Wait 60 seconds before powering on again.
Please turn the AV System off before leaving the
room. Sign out of the PC, but do not turn it off.
