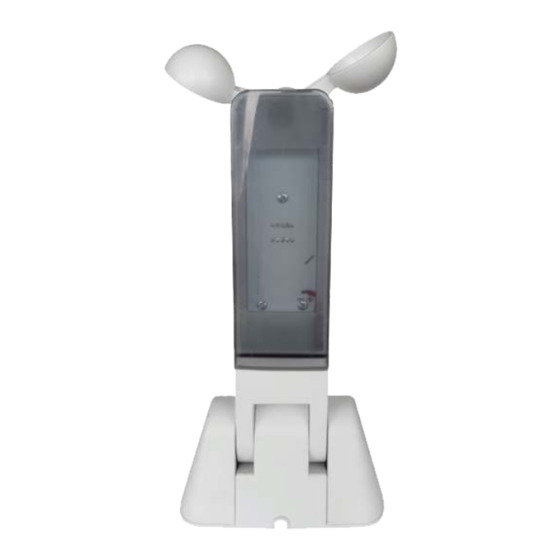

Summary of Contents for EXALUS HOME WSZF-BIDI

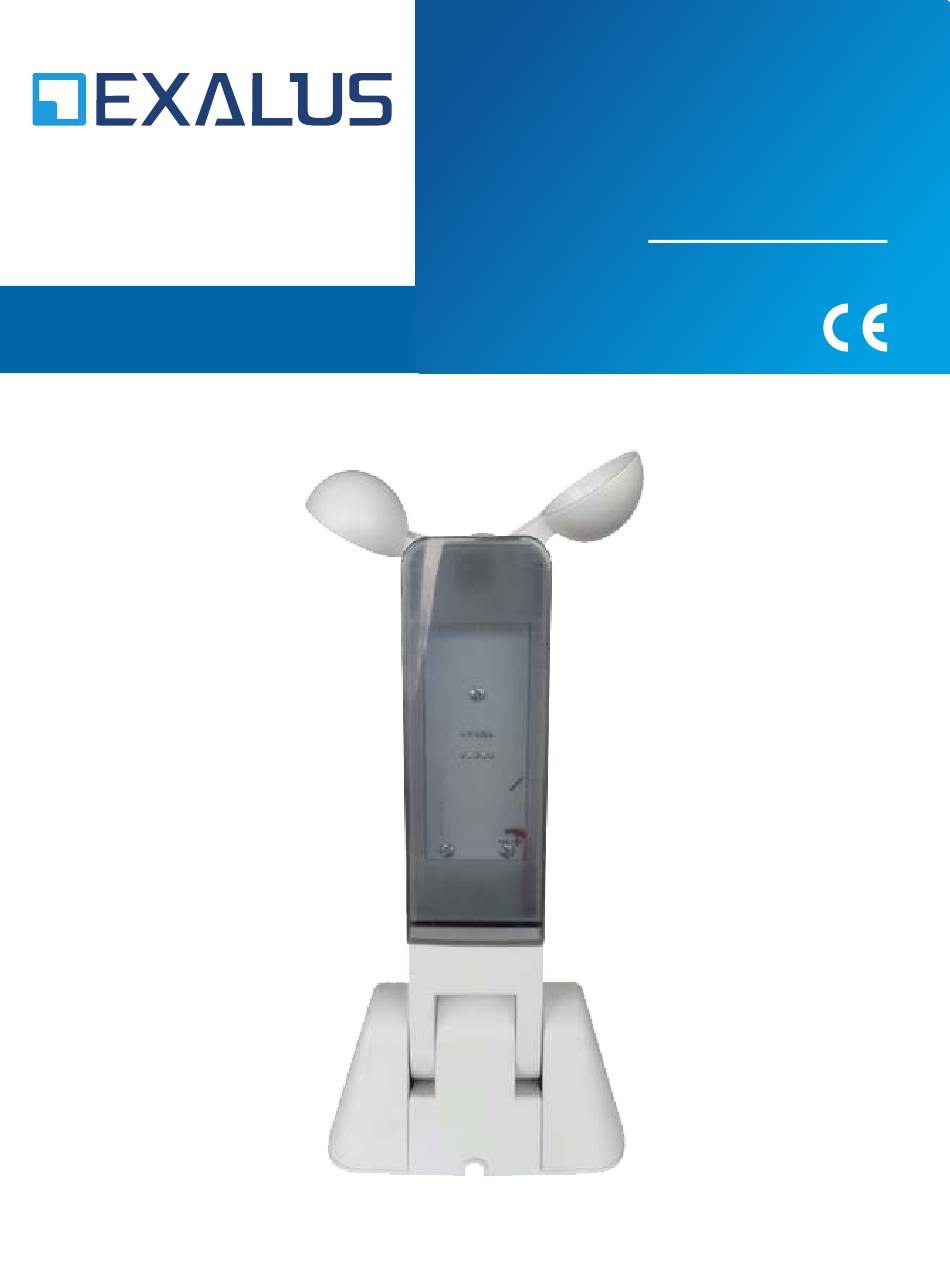

- Page 1 EXALUS HOME control system USER'S MANUAL OF EXALUS TR7 WSZF-BIDI Spółka z ograniczoną odpowiedzialnością sp.k. Kuchary 24F 63-322 Gołuchów www.exalus.pl WIND SENSOR...
-
Page 2: Power Supply
1. POWER SUPPLY a. 12V DC power supply of minimum capacity of 100mA. b. Power consumption: ~17mA during regular work and ~23mA in the test mode. c. Connection: red “+”, brown “-”. 2. APPEARANCE Wind threshold S1 Light threshold S2 Pairing P1 Power supply connection... -
Page 3: Connection Scheme
4. CONNECTION SCHEME 230 V AC - 12V= + 12V= 5. INSTALLATION The system will work correctly only if the sensor is installed in a location allowing for proper conversion of such stimuli as light intensity and wind speed. 1. Only the materials included in the packaging shall be used to assembly and fix the product in the right location. - Page 4 6. PAIRING A WSZF-BIDI SENSOR WITH A VB-BIDI CONTROLLER a. Adding a sensor via the PROG button on the shutter controller: I. Press the PROG button on the controller and wait until blue LED light starts flashing. Next, release the button (the diode will slowly blink blue).
- Page 5 7. BUTTONS FUNCTIONALITIES Button Function Notes Display Displays the setting Setting thresholds S1 or S2 Left digit - wind thresholds for in accordance Right digit - light approx. 3 sec. with point 5 Current wind Wind speed in The dot displayed on speed reading [km/h] the left screen means...
- Page 6 Button Function Notes Display Setting the light The threshold that By pressing the S1 intensity reporting is currently set blinks button, you can threshold on the right screen navigate through (in accordance subsequent light with point 5). intensity reporting thresholds. By pressing the S2 button for a short while, you can save...
-
Page 7: Additional Information
8. WIND AND LIGHT INTENSITY THRESHOLDS, WHICH IF EXCEEDED WILL BE REPORTED BY A SENSOR Level Wind speed [km/h] Light intensity [lux] No exceeded threshold reported No exceeded threshold reported 9. ADDITIONAL INFORMATION: a. The wind speed is constantly monitored - the reading is taken every 0.5s and the average value is calculated based on last four readings.
