LEXIBOOK MIC240 Series - Wireless Microphone With Speaker Manual

UNPACKING YOUR DEVICE

Includes:

• 1 x Wireless microphone with speaker
• 1 x micro USB cable
• 1 x Instruction manual

All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this toy and should be discarded for your child's safety.

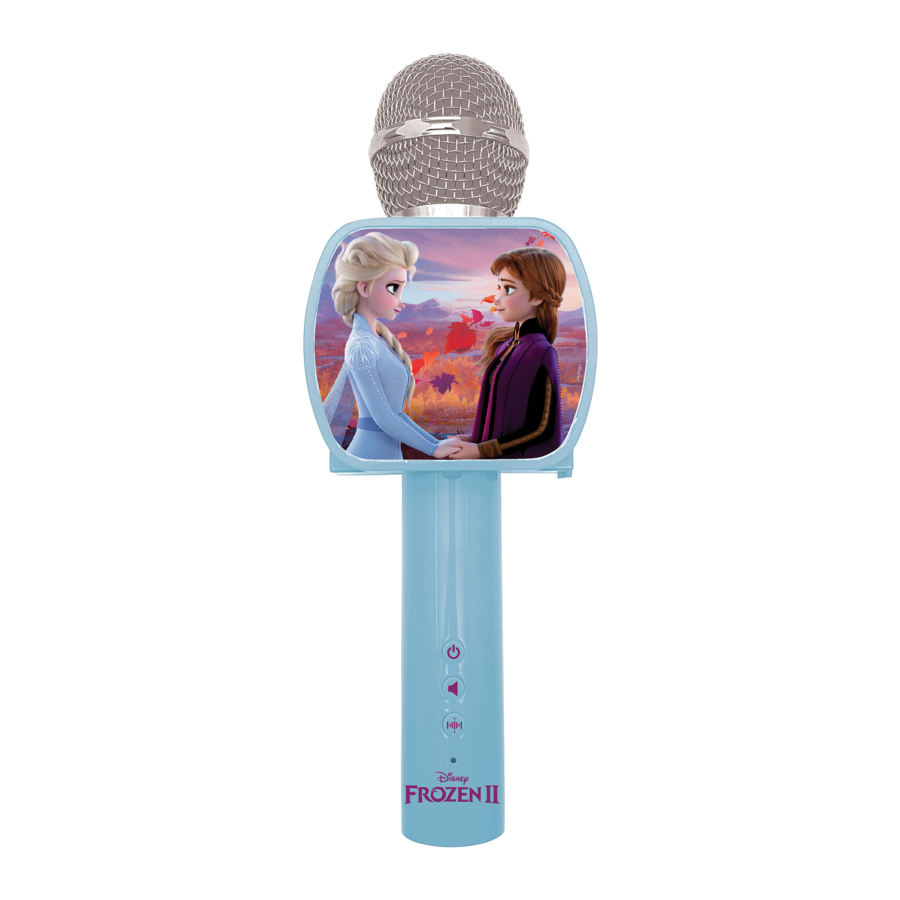

PRODUCT DESCRIPTION

1. Microphone
2. Speaker
3. Retractable phone holder
4. ON/OFF - Play/Pause
5. Volume control - Previous
6. Voice changer function - Next
7. LED light
8. Micro USB charging port

CHARGING THE DEVICE

The Wireless microphone with speaker operates with the micro USB charging cable (included) or with a USB type adaptor (not included) DC 5.0V , 1000mA.

Power supply

1. Check that the unit is switched off.
2. Insert the small end of the micro USB cable (included) into the micro USB charging port (8).
3. Connect the other end of the micro USB cable into the USB port of your powered computer or USB type power adaptor (not included) and plug it into a wall socket. The indicator near the micro USB charging port lights up in red when the device is charging.
4. Once loading complete the LED light will turn off.

Note:
Please note that the micro USB cable can be used for battery charging only and not for data transfer. The micro USB cable can be used for charging during playback.

• Risk of explosion if battery is incorrectly replaced. Please only replace it with an identical or an equivalent battery. (For Service instructions only; battery is not intended to be replaced by the USER).
• The battery should not be exposed to high temperatures, such as sunlight, fire or anything similar.

Safety Instructions

• Keep a minimum distance around the device for sufficient ventilation.
• The openings should never be blocked by newspapers, curtains, tablecloths, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Device for use in a temperate and/or tropical climate.
• Batteries should be disposed properly. Take them to the collection container in order to protect the environment.

BLUETOOTH® PAIRING

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners.
© 2020 Bluetooth SIG, Inc.

1. Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.). Please refer to your device's instruction manual on how to activate this function.
2. Turn the wireless microphone on to activate auto-detection of a nearby device. The blue indicator will start blinking.
3. Confirm pairing or select the Bluetooth® name "MIC240" to connect your player to the speaker.
4. If pairing is successful, a "Beep" sound will come out from the speaker and the blue indicator will glow steadily.
   You can enjoy music via the Bluetooth® device now.
5. To stop the connection with the speaker, press the button on your Bluetooth device.

Notes:

• When turned on, the speaker automatically searches for a device that it has previously synchronized with.
• If your Bluetooth® device requires a password, the default password is 0000.

HOW TO USE

1. To turn on the Wireless microphone, press and hold the power control (4).
2. To turn off the device press and hold the same button until you hear a signal tone.

Significant electromagnetic interference or electrostatic discharges may cause the device to malfunction or lose data. If the device is not functioning correctly, switch it off and then on again, or unplug the USB cable.

• Press shortly the button (4) to start playing music.
  Press the same button to pause playback.
• Press and hold (3 seconds) the button to turn the microphone on.
  Press and hold again to turn it off.

• Press shortly the button (5) to play the previous song.
• Press and hold (3 seconds) the button to decrease the volume.
  To increase it, please use personal device (smartphone, MP3 player, etc.).

• Press shortly the button (6) to play the next song.
• Press and hold (3 seconds) the button to change the voice effect. You can choose between 3 tunes: a voice with echo, a high-pitched feminine voice, and a deep-pitched voice.

SPECIFICATIONS

• Bluetooth® version 4.1
• Effective distance: Up to 10 meters (32 feet)
• Output Power: 3W
• Playing time: Around 3 hours
• Charging time: Around 4 hours
• Battery: Lithium battery 5.0V , 500mAh
• Product dimension: 85 x 61 x 245 mm
• Multi Voice Changer: Transform your real voice to 3 other voices (echo, woman or man).
