MTAF5-40

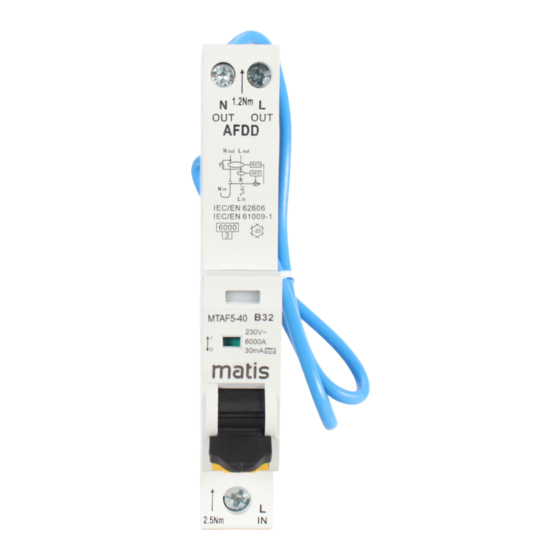

RCBO MTAF5-40 With Arc Fault Protective
Technical Data
Electrical
Mode
Type
Features
Rated current In
Poles
Rated voltage Ue
Insulation voltage Ui
Rated frequency
Rated residual operating current(I△n)
Break time under
Rated breaking capacity
Energy limiting class
Rated impulse with stand voltage(1.5/50)Uimp
Dielectric test voltage at ind.Freq.for 1min
Pollution degree
Thermo-magnetic release characteristic
Mechanical
Electrica llife
Mechanica llife
Features
Contact position indicator
Protection degree
Reference temperature for setting of thermal element
Ambient temperature(with daily aver
Storage temperature
Installation
Terminal connection type
Tightening torque for
Tightening torque for
Mounting
Connection
RCBO+AFDD
Protection
①Arc Fault Protction
②Overload Protection
③Short-Circuit Protection
④Earth-Leakage Protection
I△n
age 35
≤
L-LINE
L&N-LOAD
Electronic
A
6,10,16,20,25,32,40A
1P+N
230V~
400V
50Hz
30mA
≤0.1s
6,000A
3
4,000V
2kV
2
B
4,000C ycles
10,000C ycles
Yes
IP 40 in Sentry MCU & Enclosures
30℃
℃)
-5℃~+40℃
-25℃~+
55
Cable/Pin-typebusbar
2
2.5Nm
2
1.2Nm
On DIN rail EN60715(35mm) by means of fast clip device
Power supply from button
Arc Fault Detection Device
Standard_ IEC6 606
℃
www.matismart.com
2
Advertisement
Related Manuals for Matis MTAF5-40
Summary of Contents for Matis MTAF5-40
- Page 1 MTAF5-40 RCBO+AFDD Arc Fault Detection Device RCBO MTAF5-40 With Arc Fault Protective Standard_ IEC6 606 Protection ①Arc Fault Protction ②Overload Protection ③Short-Circuit Protection ④Earth-Leakage Protection Technical Data Electrical Mode Electronic Type Features Rated current In 6,10,16,20,25,32,40A Poles 1P+N Rated voltage Ue...
- Page 2 MTAF5-40 RCBO+MTAF Arc Fault Detection Device RCBO MTAF5-40 With Arc Fault Protective Standard_ IEC6 606 Characteristics Tripping Type Tripping currentI△/A LaggingAngle I△n ＞0.01A I△n≤0.01A Current 0° 0.35I△n≤I△≤1.4I△n 0.35I△n≤I△≤2I△n Range 0.25I△n≤I△≤1.4I△n 0.25I△n≤I△≤2I△n 90° 135° 0.11I△n≤I△≤1.4I△n 0.11I△n≤I△≤2I△n Characteristics LED Warnings 1 With power connected and the switch in the off position, The...
- Page 3 When Arc fault Detection Devices detects that there is arc faults exist ,it would be automatically tripping and Shanghai Matis Electri Co.,Ltd. cut off the power supply. MTAF1-32 Arc fault Detection Device Instruction...
- Page 4 If you remove the modification yourself, you will not be covered by the warranty. If you have any questions about the operation or failure of the equipment, please contact Matis TechnicalSupport Services. Notice LED Warnings 1) With power connected and the switch in the off position, The The information provided in this manual may be modified without prior notice.
