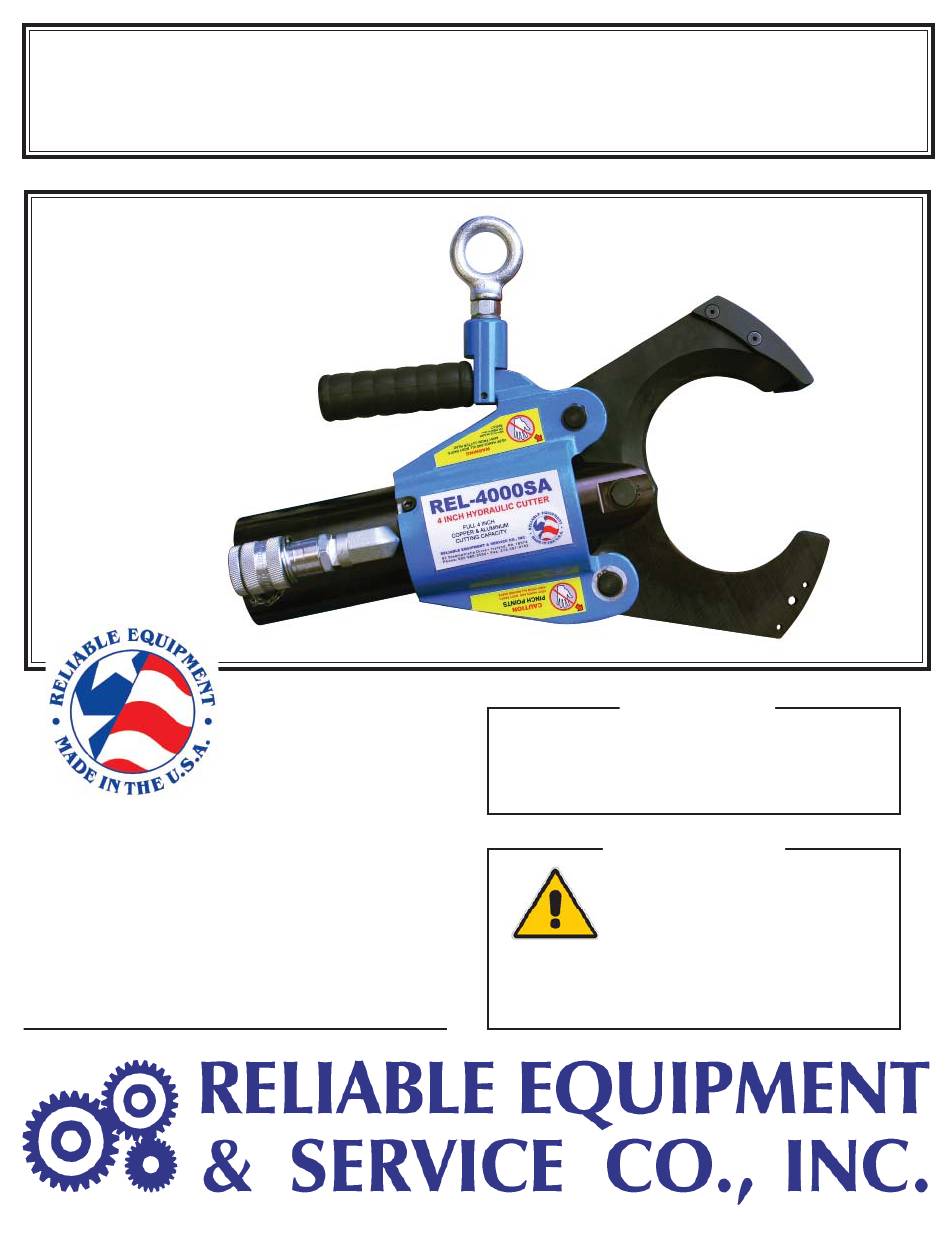

OPERATORS' GUIDE
REL-4000SA
HYDRAULIC 4" CUTTING TOOL
HIGH PRESSURE
FEMALE COUPLER
INSTALLED
conductors up to 4 inches.
The body and handle were provide comfort,
and protect the operator from inadvertent
contact with the blade or operation.
The hardened steel blades will provide a
clean cut with minimal distortion.
A ring has bee added to aid in bringing the
tool to the cut, with less operator strain.
REL-4000SA
The
cutter accommodates
copper and aluminum
DISTRIBUTED BY
REL-4000SA Manual 05-11
LIFTING
RING
NOTICE
Sizes, weights and tool specifi cations listed in
this manual are subject to change without notice.
Please consult factory for information and updates.
WARNING
All information found in this guide
must be read and understood
before use or testing of tool.
Failure to read and understand warnings
and safe handling instructions could result in
severe personal injury and or death.
1
FULL 4 INCH
COPPER AND ALUMINUM
CUTTING CAPACITY
Advertisement
Related Manuals for Reliable Equipment & Service REL-4000SA
Summary of Contents for Reliable Equipment & Service REL-4000SA
- Page 1 Failure to read and understand warnings A ring has bee added to aid in bringing the and safe handling instructions could result in tool to the cut, with less operator strain. severe personal injury and or death. DISTRIBUTED BY REL-4000SA Manual 05-11...
- Page 2 DISTRIBUTED BY The information in this manual is intended to guide the user in the use and application of this tool. It is not intended as a substitute for proper training and experience in safe work practices for this CAU- type of equipment.
- Page 3 TABLE OF CONTENTS DISTRIBUTOR INFORMATION ..............2 TABLE OF CONTENTS ................3 REGISTRATION ..................3 DESCRIPTION ................... 4 TOOL SPECIFICATIONS ................4 SAFETY INFORMATION AND WARNINGS ..........5-9 OPERATING INSTRUCTIONS ..............9 PARTS DIAGRAM ................... 10 PARTS LIST ..................... 11 DAILY MAINTENANCE ................12 LABELS ....................
- Page 4 SPECIFICATIONS Weight: 17.5 lbs. HYDRAULIC 4 INCH CUTTING TOOL Size: 15.6” x 10” x 4” The REL-4000SA single acting hydraulic cutter has been designed to accommodate System Hydraulic - 10,000 psi max. copper and aluminum conductor up to Max. Cut 4 inch dia.
- Page 5 BEFORE USING THIS TOOL, READ THE WARNINGS and the recommended practices described in this manual. Failure by the operator to read and fully understand these warnings will leave this person unqualified to use and operate this tool. Property damage, severe personal injury, and/or death could result by not following these warnings.
- Page 6 SAFE OPERATION & CARE USE THIS TOOL FOR ITS INTENDED PURPOSE ONLY Any other use can result in injury or property damage. INSPECT TOOL BEFORE USE. Replace any worn, damaged or WARNING missing parts. A damaged or improperly assembled tool may malfunction, injuring operator and/or nearby personnel.
- Page 7 HOSES AND FITTINGS There exists the potential for shock in using anything other than certifi ed non-conductive hoses and hydraulic oil with dielectric properties, when using system components near energized electrical lines. Failure to recognize these conditions could cause WARNING electrocution.
- Page 8 Operation/Safety methods may vary in accordance with the working guidelines established by each utility or contractor. For your own safety, ensure that you fully comply with all safe operation guidelines required by your employer. WARNING ELECTRICAL SHOCK HAZARD Always wear and use the necessary clothing, equipment and safety practices to protect against electrical shock.
- Page 9 Failure to observe this warning could result in serious personal injury and/or death. REL-4000SA OPERATION Do not cut live conductors. Hardened metals may fl y when severed.
- Page 10 REL-4000SA - CUTTING TOOL PARTS DRAWING...
- Page 11 PARTS LIST - REL-4000SA 4” SINGLE ACTING HYDRAULIC CUTTING TOOL ITEM PART NO. DESCRIPTION R52001 HOUSING R52002 BLADE R52003 PULL YOKE R52004 CYLINDER R52005 R52006 BLADE GUIDE R52007 R52008 LOWER DISC R52009 LOWER DISC ROD R52010 INNER SPRING R52011 MIDDLE SPRING...
- Page 12 92 Steamwhistle Drive • Ivyland, PA 18974 • USA and recommended practices described Phone: 215-357-3500 • Fax: 215-357-9193 in the manual. Failure by the operator to MODEL: REL-4000SA read and fully understand the warnings will leave this person unqualifi ed to use MAX. PRESSURE: 10,000 PSI WARNING and operate the tool.
- Page 13 Maintenance Records Date Parts or Service Required...
- Page 14 If you have any questions regarding the information found in this manual please contact RELIABLE EQUIPMENT at the address, phone or fax numbers shown below. 301 Ivyland Road Warminster, PA 18974 Phone: 800-966-3530 Fax: 215-357-9193 Visit us on the web at www.Reliable-Equip.com...
