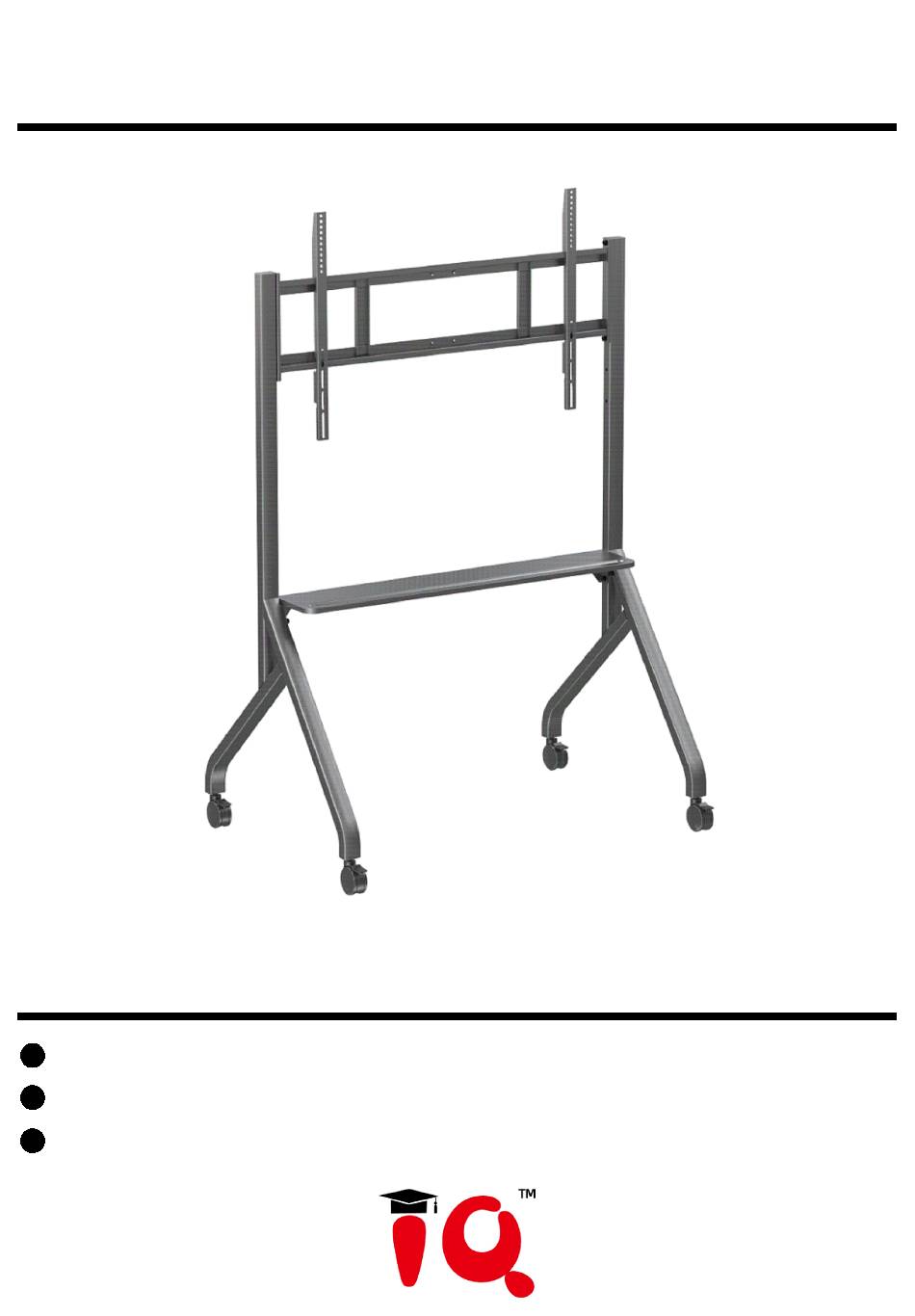

- Page 1 HAMS-01 Model: HAMS-01 To use the product safely and correctly, please read this manual carefully before installation. This product is suitable for 65-100 inch interactive display. The maximum capacity of this cart is 100 KG...
- Page 2 HAMS-01 Main Parts: D-wall plate 1pc B-right column 1pc A-left column 1pc E-bracket 2pcs F-4 inch wheels 4pcs C-tray 1pc Screw kits: d-Ø16*Ø8.5*1.0 a-M8*20 Screw b-M6*16 Screw c-M8*25 Screw Washer 12pcs 4pcs 4pcs 4pcs e-Ø24*Ø12.5*1.5 f-Ø20*Ø12.5*3.5 Cross screwdriver Spanner Washer...
- Page 3 HAMS-01 Step 1: Adjust the wheels to the braking state, and then screw the four wheels onto the left and right columns. (Figure 1) Before installing the wheel, adjust it to the brake state. Figure 1 Step2: There are 3 combinations of installation holes in the wall plate. Choose the combination you need.
- Page 4 HAMS-01 Step 3: Turn a screw (a) into the hole as shown in Figure 3 in advance, do not lock and reserve adistance of 8mm. Then hang up the tray and lock all six screws (a).(Figure 3) Reserve 8mm Figure 3...
- Page 5 HAMS-01 Step 5: Install the interactive display with the bracket on the wall plate, ensure that the hook is hung on the border of the wall plate,and then lock the safety screw on the bracket.(Figure 5) Figure 5 Step 6: The effect after installation is as follows.
