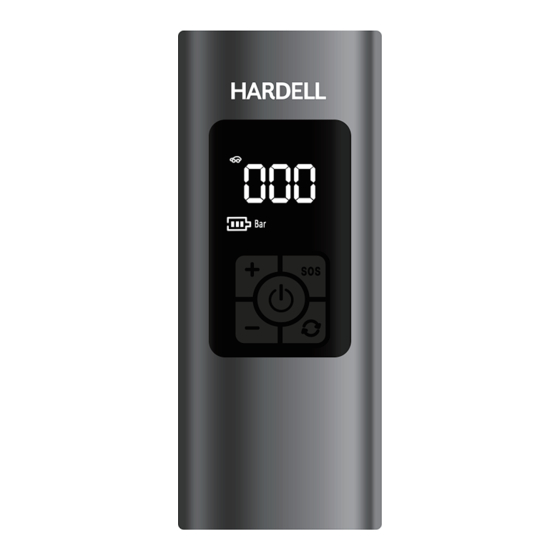

Portable Air Compressor
Operator's Manual
Thank you for purchasing this product. To
ensure proper use and trouble-free operation,
please read this guide carefully before operat-
ing. If there is any issue, please contact us via
Amazon or email: hardell.service@gmail.com,
we will help you within 12 hours.
Advertisement
Summary of Contents for HARDELL CZCQ-101

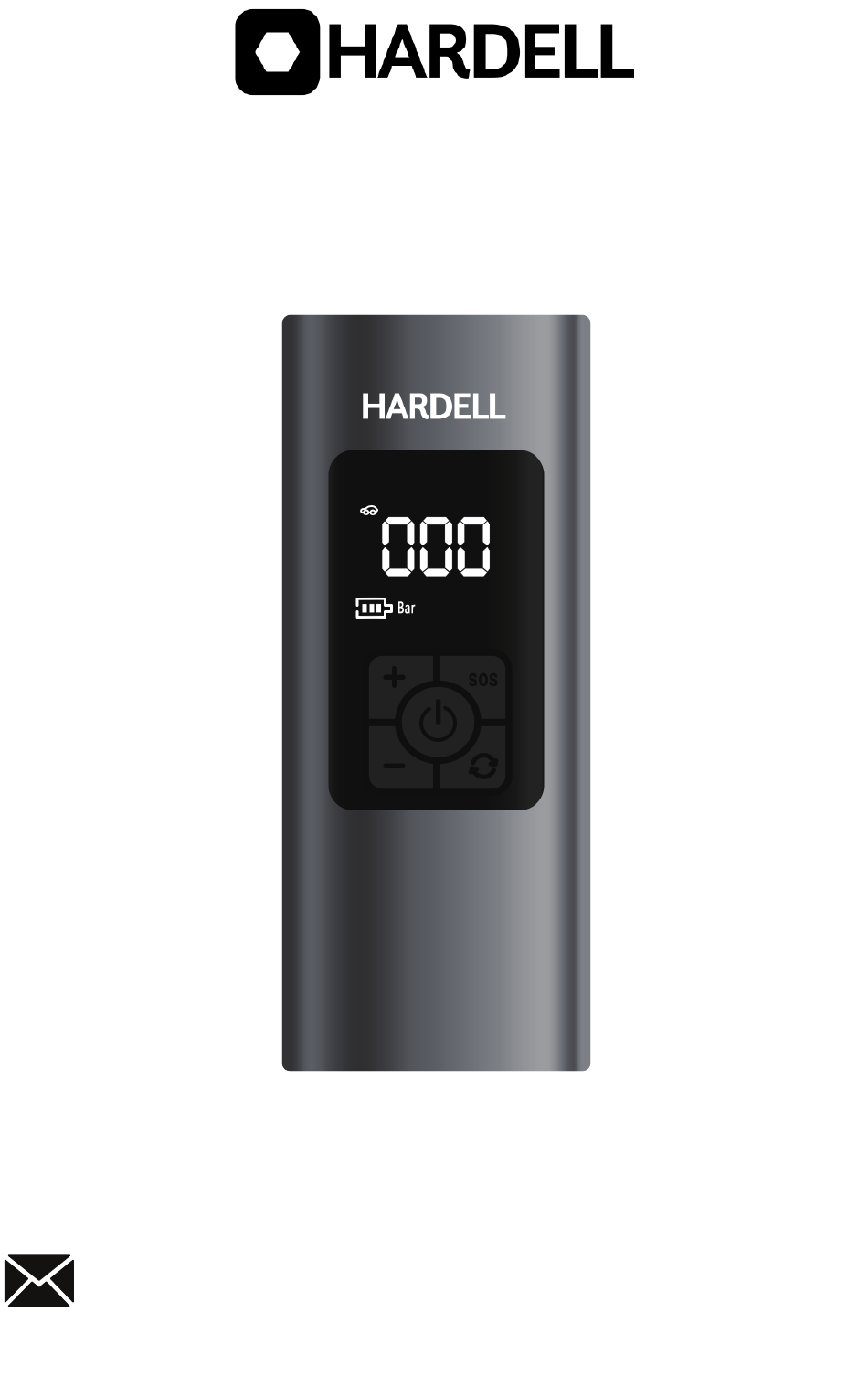

- Page 1 Thank you for purchasing this product. To ensure proper use and trouble-free operation, please read this guide carefully before operat- ing. If there is any issue, please contact us via Amazon or email: hardell.service@gmail.com, we will help you within 12 hours.
-
Page 2: Product Details
PRODUCT DETAILS heat dissipation hole tire pressure display LED light/ increase the preset SOS light/ air pressure flash button on/off button unit switch/ reduce the preset mode switch air pressure button Discharging port inflation port charging port LED light 12V DC vehicle power supply... -
Page 3: Technical Data
TECHNICAL DATA Mode CZCQ-101 Input Voltage Max Power Max Current ＜6A Output Volume 25L/MIN LED Total Lumen 20LM Max Inflating Pressure 150PSI Measurement Accuracy ±1.5PSI Pressure Unit PSI, BAR, KPA, KG/CM² Air Hose Long 100MM±10MM Working Teamperature 20℃~60℃ Product Size 17*6.9*5CM/6.69*2.72*1.97"... -
Page 4: Product Accessories
PRODUCT ACCESSORIES Type-C Charging Cable x 1 Storange Bag x 1 Cigarette Lighter Cable x 1 Bike Air Nozzle x 1 Rubber boat conversion head x 1 6 Ball Air Needle x 1 Swimming Ring Nozzle x 1 Inflatable Tube x 1... - Page 5 PRODUCT ACCESSORIES Recommend Using scene Product type Preset mode pressure range 2.1 Bar Bicycle 30-60 PSI 1.5-2.5 Bar 2.2 Bar Motorcycle Vehicle 2.5 Bar 0.6 Bar Ball 2.0-2.8 Bar 5-20 PSI...
- Page 6 INSTRUCTION 1. Turn on and turn off Press the on/off button for 3 seconds until the machine start to work. In the power-on state, if there is no operation within 1 minutes, it will shut down. In the working state, long press the on/off button for 3 seconds to shut down the machine.
- Page 7 INSTRUCTION 6. Charging inform Insert the USB charger into the USB port and connect it to the USB charger port on the inflator. When " " flashes on the inflator, the battery is being charged. When " " flashes stop and the display shows 3 grids indicating fully charged.
- Page 8 INSTRUCTION Warning Please be careful, the temperature of the high-pres- sure air tube and the host will rise while the inflation 8. Detect air pressure In the inflator on state, connect the high-pressure air inflation tube with the object, and the number displayed on the inflatable pump display is the current pressure.
- Page 9 SAFTY NOTE fire, spontaneous combustion, or explosion if the Lithium battery is overheating, impacting, or water ingress. Please avoid exposure to high temperatures such as in the car. 3. The storage temperature of the product should not be lower than-10 degrees or higher than 45 degrees, too cold or overheating will shorten the life of the product, or damage the built-in battery.
- Page 10 SAFTY NOTE Warning 1. In thunderstorm weather, please disconnect the external charger to avoid being damaged by lightning. 2. Stay away from heat sources and maintain ventila- tion. 3. It is forbidden to put the equipment in high temperature or throw it into the fire to avoid explo- 4.
- Page 11 FAULTRESOLUTION Fault Exclusion method 1. Check whether the power is sufficient 2. Check whether the air inflation tube is leaking 3. Check whether the Slow inflation connection parts at both ends of the tube are tightened 4. Check whether the inflated objects are leaking 1.
- Page 12 FAULTRESOLUTION Fault Exclusion method The power lithium battery has The power level icon a significant voltage drop during the discharge process in the charging state is inconsistent with so the inconsistency between the battery level icon and the the standby state standby state is not a fault.
Need help?
Do you have a question about the CZCQ-101 and is the answer not in the manual?
Questions and answers
My unit is fully charged but won't start
If the HARDELL CZCQ-101 unit is fully charged but won't start, possible issues include:
1. The charged device may not be suitable.
2. The unit may be in an inflated state and cannot be used as a power bank or to charge other devices.
3. The original charging cable may not be used.
4. The machine may need to be restarted.
5. There may be abnormal noise or overheating—if so, shut down immediately.
6. The storage temperature may be outside the recommended range (-10°C to 45°C), affecting battery performance.
7. The built-in battery may be damaged due to long periods without use.
Check all these conditions to troubleshoot the issue.
This answer is automatically generated
My unit is fulltime charges but won't start
If the HARDELL CZCQ-101 unit is fully charged but won't start, possible issues include:
1. The device being in an inflated state, which prevents it from being used as a power bank or for charging other devices.
2. Use of a non-original charging cable; only the original cable should be used.
3. The need to restart the machine if it is unresponsive.
4. The charged device may not be suitable.
5. Internal battery damage due to long periods of non-use, high temperatures, or other improper storage conditions.
Restarting the machine and checking all connections and conditions is recommended.
This answer is automatically generated
Puedo cargar **** energía 220
No, the HARDELL CZCQ-101 cannot be charged directly with 220V. It has an input voltage of 12V, so it requires a compatible adapter that converts 220V AC to 12V DC.
This answer is automatically generated
can i buy a part 8 - air hose?
What does the code CA1on the display mean? The unit won’t charge.
