- Page 1 NYHILL ® UM-2 Electric Kick Scooter User’s Manual...
- Page 3 11 MAIN COMPONENTS from page 13 ANYHILL APP from page 16 from page 17 CARE AND MAINTENANCE SPECIFICATIONS from page 18 CERTIFICATIONS from page 19 TRADEMARKS AND PATENTS from page 20 - 1 - UM-2 ELECTRIC KICK SCOOTER...
-
Page 4: About This Manual
SERVICE INFORMATION.Read this manual thoroughly before you take the first ride on your new ANYHILL UM-2, and keep it for reference. Whenever you ride this electric kick scooter, you risk serious or fatal injury from loss of control, collisions, and falls. When riding, USE COMMON SENSE AND GOOD JUDGMENT. -
Page 5: Safety Instructions
The ANYHILL UM-2 is designed for personal use only. DO NOT take any passengers or animals during the ride. DO NOT carry objects on the handlebar. ALWAYS wear a helmet when riding. - Page 6 Any tuning measures will void the Limited Warranty and make your ANYHILL UM-2 unsuitable for riding on public roads. DO NOT put your scooter outdoors for a long time. Excessive sunlight, overheating and overcooling will accelerate tire aging and compromise the scooter and the battery pack's lifespan.
-
Page 7: Scope Of Delivery

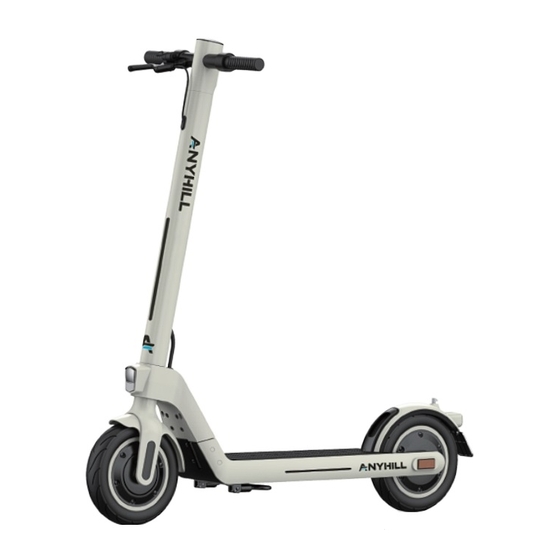

SCOPE OF DELIVERY Presentation of the assembled ANYHILL UM-2 The scope of delivery includes the following： User’s Manual ×1 Valve extension ×1 Wrench ×1 Screws (M5 x 10 mm) ×4 Charger ×1 Battery key ×1 - 5 - UM-2 ELECTRIC KICK SCOOTER... - Page 8 SCOPE OF DELIVERY ANYHILL UM-2 Complete Overview Power Button Electronic Brake Dashboard Pedestrian Bell Electronic Throttle Drum Brake Lever Folding Mechanism Headlight Drum Brake Battery Compartment Charging Port Connector Kick-Stand Rare Light Hub Motor - 6 - UM-2 ELECTRIC KICK SCOOTER...
- Page 9 Please pay close attention to the following assembly information. Correct assembly is relevant to safety and should be carried out exactly under these operating instructions. 1.Attach the handle bar to the stem. 2.Tighten the screws onto both sides of the stem with the wrench. - 7 - UM-2 ELECTRIC KICK SCOOTER...
-
Page 10: Folding And Unfolding
Press the button on the connector to remove it from the brake cover, erect the handlebar and lock the folding structure. Open Fold - 8 - UM-2 ELECTRIC KICK SCOOTER... -
Page 11: Security Check
Test the front brake with the scooter turned on, ride at a low riding speed (between 2.5 to 5 mile/h). Press the brake lever completely with your left thumb. Your ANYHILL UM-2 should fully stop within three meters. - 9 -... -
Page 12: Riding Instructions
Your ANYHILL UM-2 has a kickstand. You can fold it down and up with your foot. Only park your ANYHILL UM-2 on solid and even ground. - Page 13 BATTERY BATTERY CHARGING INSTRUCTIONS Your ANYHILL UM-2 should only be charged with the supplied and manufacturer-approved external charger. Make sure that the contacts of the charging cable and the charging socket are dry, and only be charged in a dry and clean environment.
- Page 14 An electric shock can lead to serious injuries and damage the scooter. Put your ANYHILL out of operation after a fall or severe impact, and watch the battery for at least 24 hours. If there is an unusual smell, excessive heat, or visibly leaky liquids, turn off the scooter, disconnect it from the charger and ventilate it immediately and sufficiently.
-
Page 15: Main Components
MAIN COMPONENTS LCD Display Your ANYHILL UM-2 has an LCD display that shows all the important information. Driving Speed Mode Energy Power Performance Speedometer Bluetooth Headlight Cruise Control Mode Battery Level OPERATION - 13 - UM-2 ELECTRIC KICK SCOOTER... - Page 16 For this scooter, it has 2 independent brake system. One is the electric brake (left throttle) to control the rear wheel, the other is drum brake (brake lever on the handlebar) to control the front wheel. - 14 - UM-2 ELECTRIC KICK SCOOTER...
- Page 17 MAIN COMPONENTS Battery charge indicator Your ANYHILL UM-2 has a battery charge indicator consisting of five bars. When all five bars are displayed, it indicates the battery is fully charged. If only one bar is displayed, it indicates the battery is running low, please charge as soon as possible.
- Page 18 ANYHILL APP You can connect your ANYHILL UM-2 to a Smartphone via Bluetooth connection. The app must be installed manually on an Android Smartphone before pairing. Please download the installation file from www.anyhill.com to your Smartphone, and install the app.
-
Page 19: Care And Maintenance
Have your ANYHILL checked regularly; only original and approved replacement parts and components may be used. If you use unapproved parts, the full functionality and safety of your ANYHILL can no longer be guaranteed. This can lead to the loss of warranty claims. Contact support@anyhill.com for replacement parts. -
Page 20: Specifications
Rated power (W) Wheel Motor Max. power (W) Max. Torque (N.m)/(ft.lb) 22N.m/16.23ft.lb Output power (W) Input voltage (VAC) 100-240 Output voltage (VDC) Charging adapter Output current (A) Charging time(FULL)(h) Approx. 5 Charging time(80%)(h) Approx. 4 - 18 - UM-2 ELECTRIC KICK SCOOTER... - Page 21 Council. This product meets the requirements and other relevant provisions of the directives 2006/42/EC, 2014/35/EU, 2014/30/EU. North American Market ANYHILL products sold in North America comply with the FCC Rules and UL standard. The battery complies with UN/DOT 38.3. The charger complies with EMC requirements under EN 61000-6-1:2007 and EN 61000-6-3:2007+A1:2011.
-
Page 22: Trademarks And Patents
TRADEMARKS AND PATENTS ANYHILL and the logo icon are trademarks of Lightwalker Tech Co. Ltd. The ANYHILL UM-2 is covered by relevant patents. For patent, information please go to http://www.anyhill.com. We have attempted to include descriptions and instructions for all the functions of the scooter at the time of printing. - Page 23 - 21 - UM-2 ELECTRIC KICK SCOOTER...
- Page 24 ANYHILL and Lightwalker Tech Co. Ltd. reserve the right to make changes to the electric kick scooter, release firmware updates, and update this manual at any time. Visit www.anyhill.com for the latest updates and safety instructions. For more information, please contact support@anyhill.com.
