Summary of Contents for Pinecone Swiss Pinion

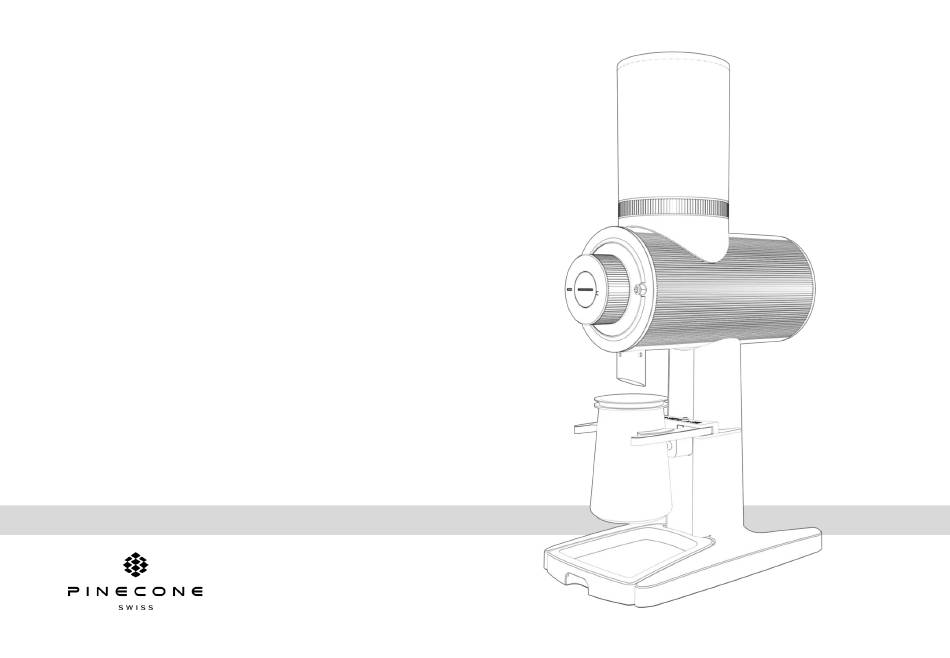

- Page 1 PINECONE PINION Coffee grinder User manual English...
- Page 2 Overview...
- Page 3 Delivery scope Bean hopper lid Dosing cup holder platform Bean hopper Dosing cup Hopper lock ring On/Off switch Grind size scale Overcurrent protector Grind size adjustment knob Spout Portafilter holder Portafilter support adjustment screw Demand button Portafilter support Drip tray...
-
Page 4: Table Of Contents
Contents General information Maintenance Reading and retaining the instruction manual Replacing the grinding discs Glossary and explanation of symbols in the instruction manual Replacing the flapper Safety Troubleshooting 20-21 Technical data Intended use Disposal Safety information Before initial operation Support & Service Functioning and basic settings Validating the grinder and scope of delivery Setting up the grinder and inserting the bean hopper... -
Page 5: General Information
The Pinion coffee grinder will hereafter be referred to only as “grinder” for simplicity. Keep this instruction manual for future reference and pass it on to subsequent owners and users of this grinder. -
Page 6: Safety
Safety Intended use The grinder is only suitable to grind whole roasted coffee beans. Do not use the grinder to grind other substances or objects. The grinder is intended for commercial use but not for continuous mass production. Servicing the grinder is permitted exclusively for trained personnel. - Page 7 Safety WARNING! Danger of electric shock (2/2) Always switch off the grinder (main switch (14) in 0 position) before you remove the power plug. ▪ Install the grinder only in places where handling & operation of the grinder can be supervised by trained personnel. ▪...
- Page 8 Safety WARNING! Danger for children and persons with reduced physical, sensory or mental capabilities (e.g. partially disabled or elderly persons) or a lack of experience or knowledge (e.g. older children or inexperienced users). The grinder is not intended for use by children or people with limited physical, sensory or mental abilities or a lack of ▪...
-
Page 9: Before Initial Operation
Before initial operation Functioning and basic settings The grinder features a removable bean hopper (2) that is locked into place and unlocked by a turnable ring towards its bottom (3). In order to install the bean hopper the ring needs to be placed into “unlock” position. Upon placing the hopper into the grinder neck and turning the ring to “locked”... -
Page 10: Setting Up The Grinder And Inserting The Bean Hopper
Before initial operation Setting up the grinder and inserting the bean hopper Place the grinder on a level and stable surface. Make sure the grinder is switched off (On/Off switch (14) in middle position 0) and connect the grinder to the mains by inserting the mains plug in a properly installed earthed socket. -
Page 11: Operation
Operation Note! Risk of overheating! Exceeding the maximum permissible operating cycle can cause the grinder to overheat. Do not exceed the maximum operating cycle and observe recommended pauses when the maximum operating cycle is reached (see chapter “Technical Data”). Information The grinder applies a thermal overcurrent circuit breaker (15) that interrupts the grinder's circuit in the event of ▪... -
Page 12: Switching On The Grinder
Operation Switching on the grinder Ensure the grinder is plugged into a properly installed protective contact socket. The grinder is powered and ready to grind as soon as it is plugged in. Setting and changing the grind size Turn the grind size adjustment knob (5) to the desired position on the grind size scale (4). Turning the grind size adjustment knob (5) clockwise will yield a finer grind size (position 1 indicates the finest position), whereas turning counterclockwise will yield a coarser grind size (position 5 indicates the coarsest position). -
Page 13: Changing Coffee Beans
Operation Changing coffee beans Close the bean shutter by setting the bean hopper locking ring (3) to “unlocked” position and leave the hopper engaged on top of the grinder. Operate the grinding process until the grinder runs empty. Lift the bean hopper (2) upwards from the grinder (the grinder will shut off as soon as the hopper is disengaged from the top of the grinder). -
Page 14: Cleaning
Cleaning CAUTION! Risk of injury! The grinder may tip over and cause injury when moved. Always place the grinder on a stable surface that is safe from tipping over before cleaning. ▪ Consult for help if the grinder is too heavy or bulky to move alone. ▪... -
Page 15: Cleaning The Grinder Auxiliary Components
Cleaning Cleaning the grinder installation surface Switch off the grinder (On/Off switch (14) in the middle position 0) and remove the power plug from the socket. Lift the grinder by its body casing using both hands and place it on a stable and clean surface. Clean the installation surface and the underside of the grinder with a damp cloth and dry the surfaces (surfaces must be dry and free of oil and grease). -
Page 16: Cleaning The Bean Hopper
Cleaning Cleaning the bean hopper Close the bean shutter by setting the bean hopper locking ring (3) to “unlocked” position and leave the hopper (2) engaged on top of the grinder. Operate the grinding process until the grinder runs empty. Lift the bean hopper (2) upwards from the grinder (the grinder will shut off as soon as the hopper is disengaged from the top of the grinder). -
Page 17: Cleaning The Grinding Mechanism Manually
Cleaning Cleaning the grinding mechanism manually The grinder requires cleaning every 1-2 weeks for best taste and operation. Wear gloves while cleaning the grinding mechanism manually. The grinding discs do not have to be removed from to clean the grinding mechanism. Switch off the grinder (On/Off switch (14) in the middle position 0) and remove the power plug from the socket. -
Page 18: Maintenance
Maintenance Information Grinding discs should be replaced after grinding ca. 800 kgs of whole roasted coffee beans. The grinding ▪ volume until replacement depends on grind size, roast degree, bean type and condition of the grinding discs. Wear gloves when changing the grinding discs to avoid injury. ▪... -
Page 19: Replacing The Flapper
Maintenance Information The flapper should be replaced if it is porous, deformed or very dirty. ▪ Replacing the flapper Remove the bean hopper (2) from the grinder (see chapter “Cleaning the bean hopper”, steps 1–3). Switch off the grinder (On/Off switch (14) in the middle position 0) and remove the power plug from the socket. Turn the grind size adjustment knob (5) to its coarsest position 5. -
Page 20: Troubleshooting
Troubleshooting Problem Possible cause Remedy The grinder is not The power plug is not Insert the power plug into a properly installed socket. grinding plugged into a socket. The bean hopper is not Install the bean hopper (see chapter on "Setting up the grinder and inserting the installed. - Page 21 Troubleshooting Problem Possible cause Remedy The grinder is not The grinding discs reached Clean or replace the grinding discs or adjust the grinding discs to a finer grind grinding fine enough. end of life or need calibration. size. The grinder does not The demand button is Contact your service partner..
-
Page 22: Technical Data
Technical data Model Pinion Voltage / frequency 100-120V, 50/60 Hz, 350W 220-240V, 50/60 Hz, 350W Grinding output 5-6 g/sec Measured at ca. 250 µm. Output varies according to bean type, roast degree and selected degree of fineness. Motor idle speed ▪... -
Page 23: Disposal
This ensures professional recycling and avoidance of negative impacts on the environment as much as possible. Support & Service Please contact your authorized service partner for PINECONE SWISS products in an event of service of maintenance. For general inquiries and other customer service please contact: www.pineconeswiss.com PINECONE SWISS AG support@pinecone-swiss.com...
