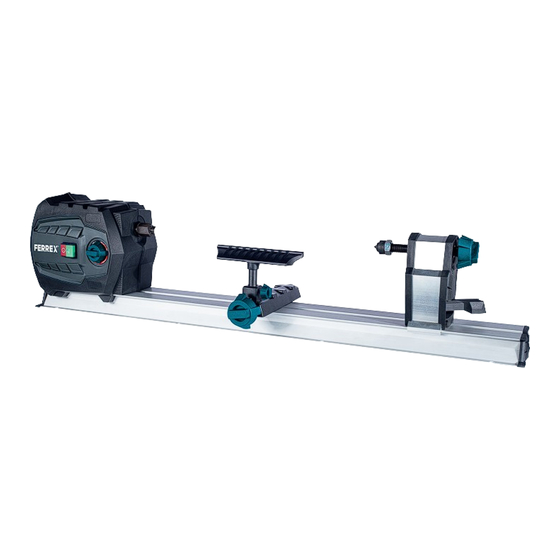

FERREX DM600VARIO User Manual

Wood lathe

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

ALDI guarantees that our exclusive brand products are developed to our

stringent quality specifications. If you are not entirely satisfied with this

product, please return it to the nearest ALDI store within 60 days from the

date of purchase, for a full refund or replacement, or take advantage of our

after sales support by calling the supplier's Customer Service Hotline.

Made in China

FERREX

is a registered trademark of ALDI Stores

DISTRIBUTED BY:

ALDI STORES

1 SARGENTS ROAD

MINCHINBURY NSW 2770

www.aldi.com.au

AFTER SALES SUPPORT

1300 855 831

support@scheppach.com.au

MODEL:

DM600VARIO

702030

05/2023

YEAR

WARRANTY

Table of Contents

Need help?

Do you have a question about the DM600VARIO and is the answer not in the manual?

Questions and answers

Summary of Contents for FERREX DM600VARIO

Page 1 Customer Service Hotline. Made in China FERREX is a registered trademark of ALDI Stores ® DISTRIBUTED BY: ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 www.aldi.com.au AFTER SALES SUPPORT 702030 1300 855 831 support@scheppach.com.au YEAR MODEL: WARRANTY DM600VARIO 05/2023...
Page 2 User Manual WOOD LATHE DM600VARIO...
Page 3: Table Of Contents
Contents Overview ..................3 Package contents/part list ............6 Explanation of Symbols .............. 7 Introduction ................8 Layout ..................9 Scope of delivery ................. 9 Intended use ................10 Safety regulations ..............11 Attachment and operation ............17 Cleaning and maintenance ............21 Technical data ................
Page 7: Package Contents/Part List
Package contents/part list Motor unit, 1x Headstock drive centre, 1x Tool rest, 1x Tool support, 1x Centering pin, 1x Tailstock, 1x Machine bed, 1x Faceplate, 1x Wrench, 2x Clamping lever tool rest, 1x Fastening screws, 8 x Warranty card Instruction manual...
Page 9: Explanation Of Symbols
Explanation of symbols Kapitelüberschrift Explanation of Symbols The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly un- derstood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.
Page 10: Introduction
Kapitelüberschrift Introduction Introduction Congratulations on choosing to buy a FERREX product. ® All products brought to you by FERREX are manufactured to the highest standards ® of performance and safety, and as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.
Page 11: Layout
Layout/Scope of delivery Kapitelüberschrift Layout (Fig. 1-5) Motor unit On/Off switch Speed control 4. Headstock drive centre 5. Tool support 6. Tool rest Centering pin 8. Counter nut Tailstock 10. Handwheel 11. Clamping lever tailstock 12. Machine bed 13. Locking screw 14.
Page 12: Intended Use
Kapitelüberschrift Scope of delivery/Intended use Open the packaging and take out the equipment with care. • Remove the packaging material. • Check that all listed contents are present. • Inspect the equipment and parts for any damage. Please contact the helpline if •...
Page 13: Safety Regulations
Safety regulations Kapitelüberschrift Safety regulations General power tool safety warnings m WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Page 14 Kapitelüberschrift Safety regulations risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use re- duces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Page 15 Safety regulations Kapitelüberschrift used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A care- less action can cause severe injury within a fraction of a second. 4) Power tool use and care a) Do not force the power tool.
Page 16 Kapitelüberschrift Safety regulations safe handling and control of the tool in unexpected situations. 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Operational Safety Instructions for the Wood Turning Lathe •...
Page 17 Safety regulations Kapitelüberschrift make it as round as possible. This minimizes the vibrations while the piece is being turned. Always fasten the workpiece securely to the faceplate. Failure to do so could result in the workpiece being thrown away from the lathe. •...
Page 18 Kapitelüberschrift Safety regulations occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. Additional safety instructions for the use of faceplates •...
Page 19: Attachment And Operation
Safety regulations/Attachment and operation Kapitelüberschrift which are not yet evident may still be present. • Remaining hazards can be minimized by following the instructions in “Safety Precautions“, “Proper Use“ and in the entire operating manual. • Before carrying out any adjustment or maintenance work, switch off the device and disconnect the mains plug.
Page 20 Kapitelüberschrift Attachment and operation Setting the tool rest (Fig. 1; 4) 1. The height of the tool rest (6) can be set by loosening the locking screw (13). 2. In order to set the length of the tool rest (6), loosen the clamping lever for tool rest (14).
Page 21 Attachment and operation Kapitelüberschrift does not come into contact with the tool support (6). Using the faceplate: (Fig. 3) To use the faceplate: • The faceplate (15) offers solid and secure support for a variety of turned objects such as platters, bowls, pots and round pieces. Installing the faceplate: 1.
Page 22 Kapitelüberschrift Attachment and operation Switching on and off (Fig. 1) • Press the On switch (2/”I“)to start the machine. • Press the Off switch (2/“0“) to stop the machine. Caution: The device starts running immediately at the set speed. Speed adjustment (Fig. 1) The correct speed must be set to suit the workpiece to be processed.
Page 23: Cleaning And Maintenance
Cleaning and maintenance Kapitelüberschrift increase it with increasing size and weight of the workpiece being turned. • Do not use wooden disks with contraction cracks, since they pose a high risk of bursting under the impact of centrifugal forces. • Do not exceed the maximum workpiece sizes. •...
Page 24: Technical Data
Kapitelüberschrift Technical data Technical data AC motor 220 - 240 V~ 50 Hz Power 550 Watt Operating mode S1 * Spindel speed 800 - 3000 min Max. workpiece length 600 mm Max. workpiece diameter 250 mm Headstock thread M 18 x 1.5 Weight 6.7 kg Dimensions L x W x H mm...
Page 25: Storage And Transport
Storage and transport/Disposal and recycling Kapitelüberschrift Storage and transport Storage: Store the device and its accessories in a dark, dry and frost-free place that is inacces- sible to children. The optimum storage temperature lies between 5 and 30 °C. Store the electric tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture.
Page 26: Troubleshooting
Kapitelüberschrift Troubleshooting Troubleshooting The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.
Page 27: Warranty Details
WOOD LATHE Warranty Details TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.
Page 28: Repair And Refurbished Goods Or Parts Notice
WOOD LATHE Repair and Refurbished Goods or Parts Notice TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. ...
