Anderson 1309G2 Assembly Instructions

Ckit

NOTE: Instructions are included with each crimp tool for terminating specific contacts. Use of non-Anderson crimp tools

can affect UL & CSA approval. See website for comprehensive tooling data.

The 1309G8 Tool Kit has three die sets, three locators and one frame for crimping 15/45 Amp Anderson Power™

contacts (see figure 1). The following instructions describe how to change the configuration from the 1309G2, 1309G3

and 1309G6 configurations.

The dies and locators are color coded to identify the components required for each configuration (see figure 2). See

table below for configurations.

Figure 2

Modification Procedure

Step 1

Remove the nut, wavy washer and locator.

Step 2

Unscrew the top and bottom die screws.

Step 3

Remove the dies from the frame. The tool can now be assembled with a different configuration.

1309G8 Tool Kit Assembly Instructions

Used to make tools 1309G2, 1309G3 or 1309G6

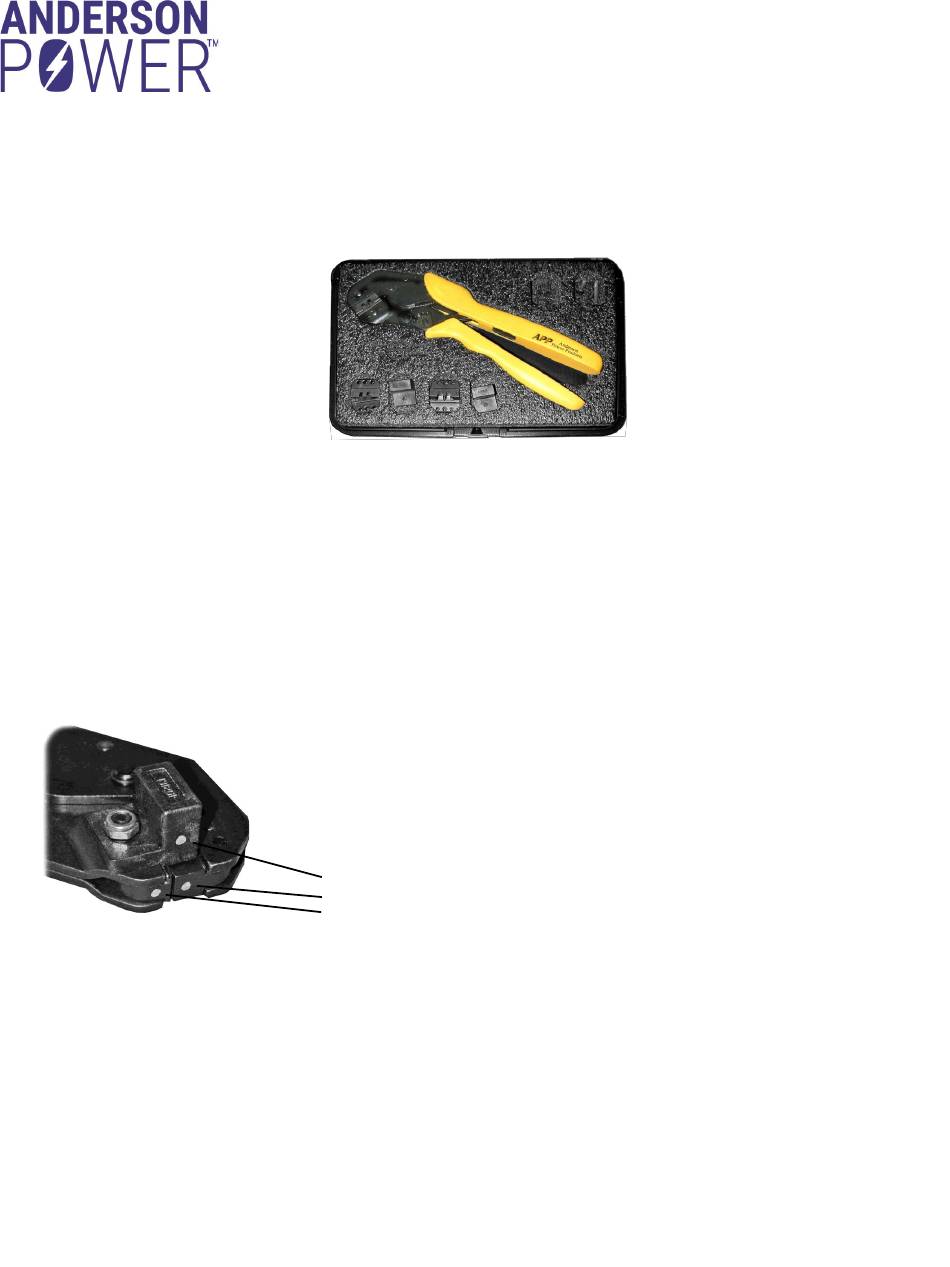

Color coded dies

and locator

Figure 1

Table of Contents

Do you have a question about the 1309G2 and is the answer not in the manual?

Page 1 UL & CSA approval. See website for comprehensive tooling data. The 1309G8 Tool Kit has three die sets, three locators and one frame for crimping 15/45 Amp Anderson Power™ contacts (see figure 1). The following instructions describe how to change the configuration from the 1309G2, 1309G3 and 1309G6 configurations.
Page 2 Reassemble Step 1 Assemble the desired die in the top position with the supplied screw. Place the bottom anvil die in the frame (see figure 3). Step 2 Tighten the screws until they bottom on the frame and loosen ½ turn. Step 3 Place the locator, wavy washer and nut on the screw, in that order (see figure 4).
Page 3 1309 Crimp Tool Series Operating Procedure Step 1 Strip cable according to manufacturer’s specifications. Step 2 Select the appropriate tool cavity for the contact being crimped. Step 3 Place contact in die end of modular locator. Insert contact fully until the wire stops on the contact are recessed into the locator (see figure 7).
Page 4 Anderson™ makes no warranty or representation as to its accuracy. Content in the instruction sheet may contain technical inaccuracies, typographical errors and may be changed or updated without notice. Anderson™ may also make improvements and/or changes to the products and/or to the programs described in the content at any time without notice.
