- Page 1 Operation Manual Doner Kebab Grill with Gas Moving Body & Reversible Motor KLG 150, KLG 151, KLG 152, KLG 156 To avoid the risk of accidents or damage to the appliance it is essential to read these operating instructions before it...
-
Page 2: Table Of Contents
List of Contents Presentation of Appliance ..........KLG 151 . -
Page 3: Presentation Of Appliance

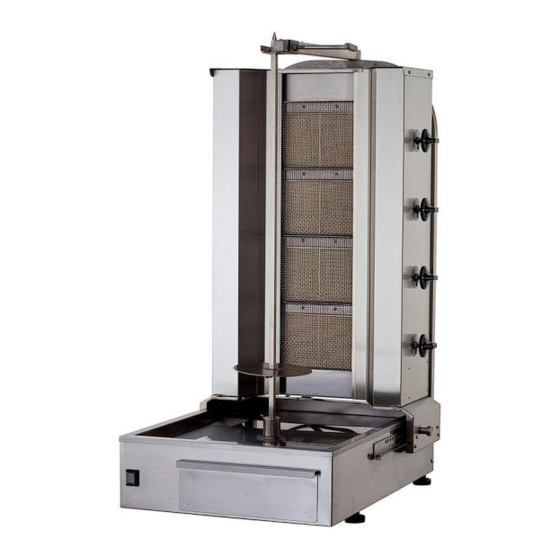

Presentation of Appliance KLG 151 Gas Doner Grill - 4 Burners Moving Frame Heater Mechanism (RADIANT) Heater Mechanism, On / Off Knob Burner Cover Termocouple Lower Plate Motor Control (On / Off) knob Oil Drawer Sword (Skewer) Upper-Skewer Lock Mechanism Bottom-Skewer Lock Mechanism Doner Kebab Meat Fixing Disk... -
Page 4: Definition Of The Appliance, Pictures Of The Appliance, Working Principle Of The Appliance
Model No : KLG 151 Other Model No : KLG 150, KLG 151, KLG 152, KLG 156 Definition of the appliance The appliance consists of stainless steel frame, safety valve, moving body and lower reversible motor, working with gas (natural gas or LPG), and used for grilling foods such as Doner kebab meat wrapped around spits, etc. -
Page 5: Safety Recommendations And Advices
( fuse, voltage and frequency). If you hesitate, please consult a qualified electrician. ➢ If the main cord is damaged, it must be replaced by KEBAB KING or an authorised technical service of KEBAB KING. ➢... -
Page 6: Rules Of Operation
Safety Recommendations and Advices ➢ Defective parts may only be replaced by original KEBAB KING spare parts. We as manufacturer may only assure you that you shall operate your appliance with these parts completely in safe. ➢ The manufacturing firm is not responsible for any damages that may be caused by improper mounting or connection of the appliance. -
Page 7: Protection Against Burns
➢ All repair operations should be performed by Authorized Service Center. Any repairs to be performed by persons other than Authorized Service Centers may cause personal injury and appliance damage. Repairs should be performed by KEBAB KING. Authorized Service Centre during warranty period. Otherwise, repair of troubles that may subsequently occur shall not be covered by the warranty. -
Page 8: Movement, Transportation And Storage
Things to be done before First Operation Transportation and Storage ➢ If you need to transport the appliance, then move it in its original container and comply with the movement marks on the container. ➢ If the original container of the appliance is not available, fix the moving parts (Sword (or spits), fixing handle, Moving Body Frame and Oil Drawer) by using an adhesive tape. -
Page 9: Operation
Operation ➢ To turn the motor on, press " I " or " II " on knob of the switch. Rotation left or right direction could be set by these positions. ➢ To turn the motor off, bring knob to " 0 " position. Operation ➢... -
Page 10: Cleaning And Maintenance
Operation ➢ To operate heaters at low heat, turn “On-Off “ key (3.) " small flame mark shows “on” position. until " ➢ When Doner Kebab cooking is completed, turn “On-Off “ key (3. to “off ” position. ➢ When the appliance is not used for a long time, ➢... -
Page 11: Technical Information
Troubleshooting Problem Possible Cause Solution * Appliance does not * Inlet Valve connected to inlet of the * Open the Inlet Valve heat or burners appliance is closed. do not operate * Burner is out of order * Please contact our Customer Service Team. -
Page 12: Electric Cable Connection
FLEXIBLE CABLE (CORD) NEUTRAL (BLUE) LIVE (BROWN) PE : EARTH (GREEN AND YELLOW T echn ica l Sp ecif ica tion KLG 150 KLG 151 KLG 152 KLG 156 ( 3 Burners ) ( 4 Burners ) ( 5 Burners ) -
Page 13: Injector Replacement
Technical Features Injector Replacement ➢ Dismantle Radian Gas Supply Pipe-Valve Connection Sleeve (Figure 2). ➢ Pull and Remove Bushing Pin (Figure 3). ➢ Pull and Remove Gas Supply Pipe from radian gas inlet slot (Figure 4). ➢ Dismantle current injector, and insert a new injector appropriate to gas system intended to use instead of it (Figure 5). -
Page 14: Electrical Circuit Diagram
Technical Features Electric circuit diagram... -
Page 15: Warning Signs And Warranty
KEBAB KING. 6. The warranty does not cover normal wear of the Product or parts and the parts that could be used as spare parts. -
Page 16: Customer Services
Customer Services ➢ Service operation is performed at the plant facility. Service Center Address: Firm Address: Rights of Modification Reserved.
