Summary of Contents for Ideal Vacuum COMMAND VALVE P1012593

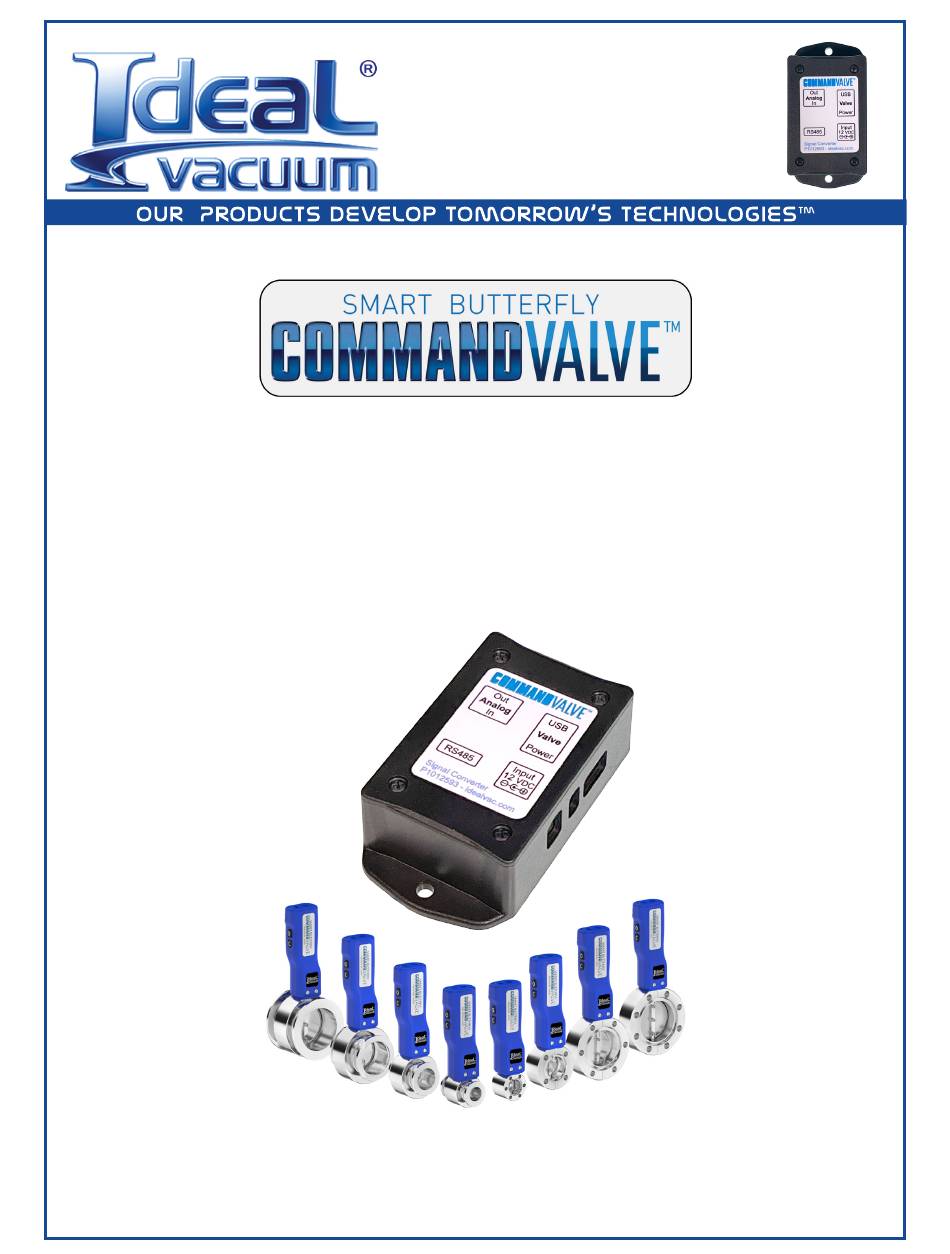

- Page 1 SIGNAL CONVERTER (Ideal Vacuum Product Number: P1012593) USER MANUAL For All CommandValves SVSC-04102023- V 1.0.2...
-
Page 2: Warranty
Ideal Vacuum warrants to the original purchaser, this product to be free from defects in workmanship and materials for a period of one year from the original delivery date. The liability of Ideal Vacuum, under this warranty, is limited to servicing, adjusting, repairing or replacing any unit or component part which, at Ideal Vacuum’s sole discretion, is determined to have failed during normal, intended... -
Page 3: Table Of Contents
Table 8 - Holding Registers .......................8 SAFETY Thank you for purchasing this equipment from Ideal Vacuum Products. Please operate it safely. h Read this manual and all associated equipment manuals before installing or operating this equipment. Failure to follow the warnings and instructions may result in serious injury or equipment damage. -
Page 4: Overview
CAD files are available at https://www.idealvac.com/pp/P1012593. Figure 1 - Dimensions Copyright © 2023, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com SVSC-04102023 - V 1.0.2... -
Page 5: Connections
Figure 3 - Analog and RS-485 Modbus Ports Description Ground Reserved Reserved TX- (D-, A) TX+ (D+, B) Ground 6 5 4 3 2 1 Table 2 - RJ11 jack pinout Copyright © 2023, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com CVSC-04102023 - V 1.0.2... -
Page 6: Analog Usage
(Table 5, p. Per the Modbus standard, it is recommended to have a minimum 2ms pause between transactions on the RS 485 line. Copyright © 2023, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com SVSC-04102023 - V 1.0.2... -
Page 7: Modbus Register Tables
(Non-volatile) Default: 0.5 – 4.5 V (See Analog Modes Table 3) Baudrate Mode Input Voltage x 100. (0 – 500) Modbus Slave Address Output Voltage x100. (0 – 500) Table 5 - Holding Registers Copyright © 2023, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com www.idealvac.com CVSC-04102023 - V 1.0.2... -
Page 8: Modbus Configuration Tables
Table 7 - CommandValve Model IDs ID Index Baud Rate Modes 9600 (Default) 14400 19200 28800 38400 57600 115200 Table 8 - Baud Rate Modes Copyright © 2023, Ideal Vacuum Products, LLC | (505) 872-0037 info@idealvac.com | www.idealvac.com SVSC-04102023 - V 1.0.2... - Page 9 Ideal Vacuum Products, LLC. 5910 Midway Park Blvd NE Albuquerque, NM 87109 Phone: (505) 872-0037 Fax: (505) 872-9001 Web: idealvac.com...
