INPRO UltraCube Suspended Track Installation Instructions

Installation Instructions
UltraCube® Suspended Track

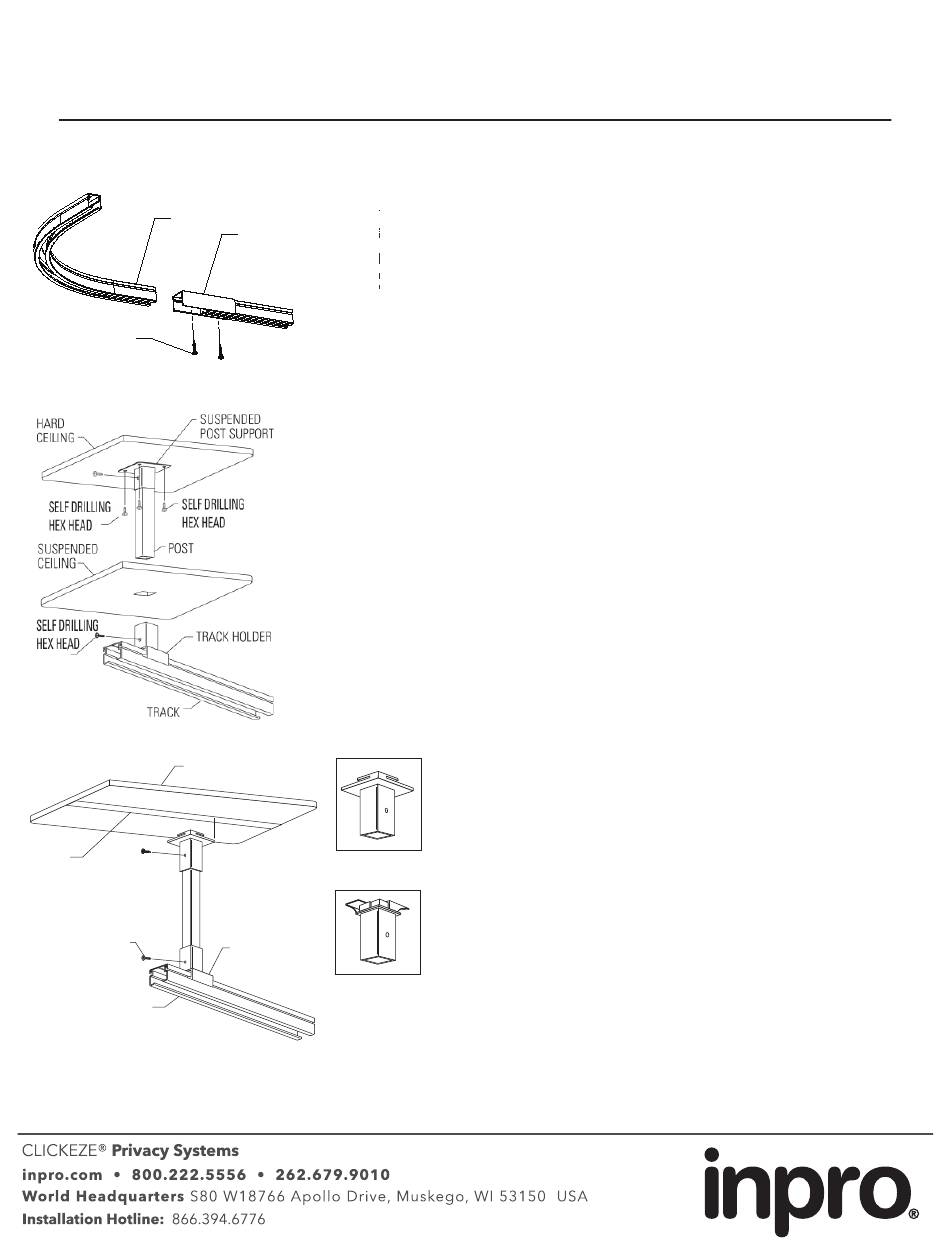

FIG. 1
TRACK
PAN HEAD SHEET
METAL SCREW
FIG. 2
FIG. 3
SUSPENDED
CEILING
CEILING
GRID
SELF DRILLING
HEX HEAD
TRACK
ULTRA CUBE
SPLICE
Suspended
Flush Gridclip
TRACK HOLDER
Suspended
Tegular Gridclip
Note: Verify the drop ceiling is installed and functioning
properly before installing track.
1. Layout track sections and bends on the floor. Join bends
to straight sections of track with a splice. Attach splice
to track with sheet metal screws. Trim track sections as
required by layout. SEE FIG. 1
Mounting to a hard ceiling. SEE FIG. 2:
A1. Attach top support bracket to the hard ceiling with the
appropriate fasteners for the substrate e.g. drywall screws
on drywall. Supports should be located at splices and
spaced 2 feet apart on straight runs.
A2. Cut post to appropriate length (maximum
recommended length is 2-feet) and attach it to the top
support bracket.
A3. Cut square holes through the ceiling for the posts.
Screw the bottom track holder to the post.
A4. Attach the track assembly to the bottom track holder
on the post.
A5. Attach L-Bracket where the track meets the wall. Drill
holes in L-bracket and attach it to the wall with two #10
x 1-3/4" sheet metal screws and alligator anchors. Fasten
the track to the L-Bracket with one #8x1/2" hex head self-
drilling screw. SEE FIG. 4.
With suspended support gridclips attached to the
suspended ceiling grid. SEE FIG. 3:
B1. Attach suspended support gridclips on the ceiling grid
with one clip every 2 feet. Use suspended flush gridclips
for flush ceiling tiles and suspended tegular gridclips for
tegular edge ceiling tiles.
B2. Cut post to appropriate length and attach it to the
gridclips.
B3. Screw the bottom track holder to the post.
B4. Attach the track assembly to the bottom track holder on
the post.
B5. Attach L-Bracket where the track meets the wall. Drill
holes in L-bracket and attach it to the wall with two #10
x 1-3/4" sheet metal screws and alligator anchors. Fasten
the track to the L-Bracket with one #8x1/2" hex head self-
drilling screw. SEE FIG. 4.
IPC.520/REV.13
