Summary of Contents for AudioControl PNW-XN3

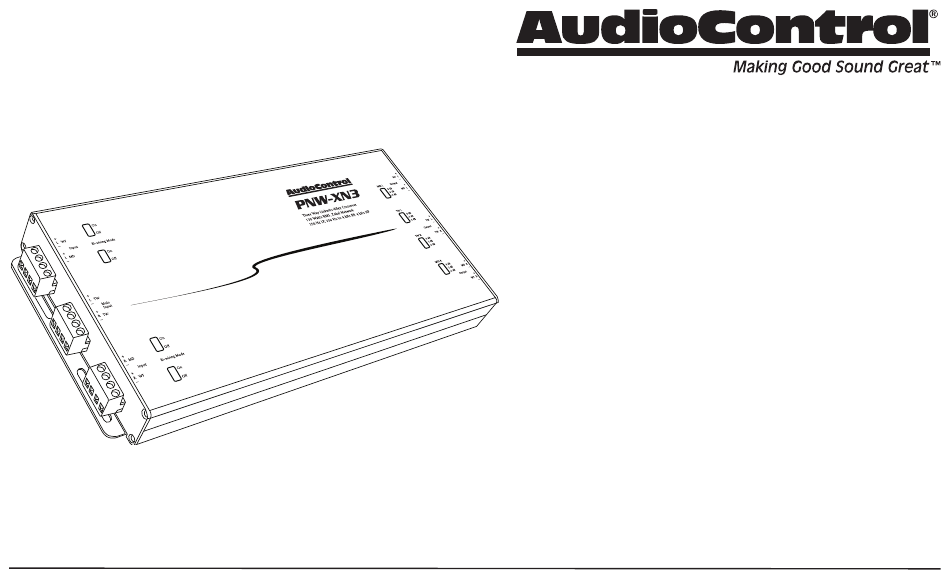

- Page 1 FEATURES • Audiophile-grade high-fidelity components • Three-way 2nd order Linkwiz-Riley • L-Pad network -0dB / -3dB / -6dB • Bi-wiring mode • Umbrella not included PNW-XN3 HIGH-FIDELITY 3-WAY PASSIVE X-OVER NETWORK User Guide...
-
Page 2: Important Safety Instructions
PNW-XN3 Important Safety Instructions Read these instructions. The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance Keep these instructions. (servicing) instructions in the literature accompanying the Heed all warnings. - Page 3 Crossover Talk Overall, the benefits of the second-order Linkwitz-Riley filter include a Right on! You got yourself a shiny new AudioControl crossover. After you steep slope, flat frequency response, and linear phase response, resulting in are done admiring the quality workmanship and attention to detail, you improved sound quality, better power handling, and improved imaging and need to get this bad-boy installed.
-
Page 4: Specifications
PNW-XN3 Specifications Dimensions Crossover Type ............2nd order Linkwitz-Riley Filter Type ..................HP / BP / LP Length ................10.6 in / 270 mm XO Frequency ..........350Hz LP / 350-4k BP / 4K HP Width (B) .................5.12 in / 130 mm Slope (Octave) ..................-12 dB... - Page 5 In a typical setup with a 2-channel amplifier and non-bi-wiring configuration, amplifier and the speaker and splits the signal into high, mid, and low- PNW-XN3 also incorporates an attenuation feature using L-Pad network which allows precise control of the volume level without affecting the speaker's frequency ranges.
- Page 6 It provides greater control over the tonal balance and enables sound tailoring according to personal preferences or specific requirements of the listening environment. -0 dB Graph represents the actual electrical response of the PNW-XN3 crossover network -3 dB connected to the PNW-69CS2, and PNW-275 speakers. -6 dB...
- Page 7 System Examples Passive Crossover 2 Channel Amp In this example, we are connecting the PNW-XN3 to a ACM 2.300. Each speaker has its own dedicated connection to the PNW-XN3. For example: Channels 1 and 2 are connected to the positive and negative of the PNW-XN3 Main Input terminals (TW).
- Page 8 PNW-XN3 Passive Crossover 4 Channel Amp In this example, we are connecting the PNW-XN3 to a ACM 4.300. Each speaker has its own dedicated connection to the PNW-XN3. For example: Channels 1 and 2 are connected to the PNW-XN3 TW positive and negative terminals.
- Page 9 System Examples Continued Passive Crossover 6 Channel Amp In this example, we are connecting the PNW-XN3 to a ACM 4.300, and a ACM 2.300 Each speaker has its own dedicated connection to the PNW-XN3. For example: ACM 4.300 Channels 1 and 2 are connected to the PNW-XN3 TW positive and negative terminals.
- Page 10 Months of waiting around. Well, fear no more. This warranty is designed to dealer installs your AudioControl product, the warranty is extended to make you rave about AudioControl. It’s a warranty that looks out for you and two (2) years.
- Page 11 Promises of how well your AudioControl product will work are not implied by this warranty. Other than what we’ve said we’ll do in this warranty, we have no obligation, express or implied.
- Page 12 The End ( Thanks for hang'n in there) PNW-XN3 User Guide PN 913-189-0 Rev A...
