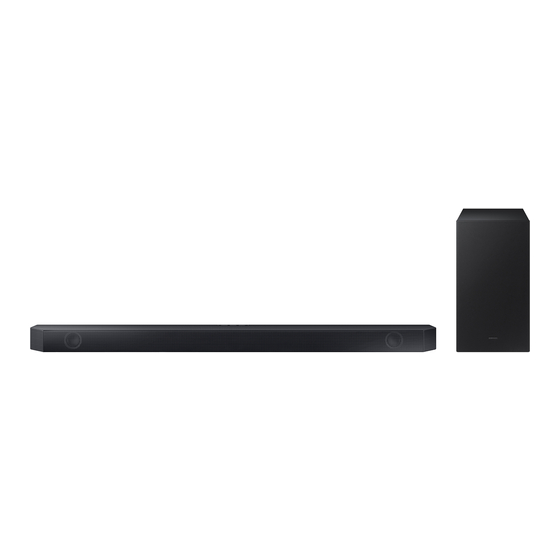

Samsung HW-Q600C Full Manual
Hide thumbs
Also See for HW-Q600C:
- User manual (29 pages) ,
- Full manual (127 pages) ,
- Full manual (90 pages)
Related Manuals for Samsung HW-Q600C
Summary of Contents for Samsung HW-Q600C
- Page 1 FULL MANUAL HW-Q600C Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
- Page 2 • This apparatus shall always be connected to a Refer to the table below for an explanation of AC outlet with a protective grounding symbols which may be on your Samsung product. connection. • To disconnect the apparatus from the mains,...
- Page 3 However, if there is no alternative to cutting off the 2. During thunderstorms, disconnect the AC plug, remove the fuse and then safely dispose of plug from the wall outlet. Voltage peaks due the plug. Do not connect the plug to a mains to lightning could damage the unit.
-
Page 4: Table Of Contents
Adjusting the Soundbar volume with a TV remote control ------------------------- Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting the Samsung Wireless Rear Kit to your Soundbar ------------------------- Connecting to a TV Method 1. Connecting with HDMI ------------------------- Method 2. Connecting using an Optical Cable ------------------------- Method 3. - Page 5 Connecting a USB drive Connecting a Mobile Device Connecting via Bluetooth ------------------------- Using Tap Sound ------------------------- Installing the Wall Mount Installation Precautions ------------------------- Wallmount Components ------------------------- Installing the Soundbar in front of TV Software Update USB Update ------------------------- Reset ------------------------- Troubleshooting Licence Open Source Licence Notice...
-
Page 6: Checking The Components
• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Centre or Samsung Customer Care. -
Page 7: Product Overview
02 PRODUCT OVERVIEW Front Panel / Top Panel of the Soundbar Top Panel Display Displays the product’s status and current mode. (Power) Button Turns the power on and off. • Auto Power Down Function The unit turns off automatically in the following situations: –... -
Page 8: Bottom Panel Of The Soundbar
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound. • If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and change the TV speaker to External Speaker. -
Page 9: Using The Remote Control
03 USING THE REMOTE CONTROL Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) so that their orientation is correct. Slide the back cover back into position. - Page 10 WOOFER By pressing the button, you can adjust the volume of the each speaker. TONE SOUND CH LEVEL • Press the button to select CENTER LEVEL or TOP LEVEL and then adjust the volume CONTROL MODE between -6~+6 by using the Up/Down buttons. CH LEVEL •...
- Page 11 Press the indicated areas to select Up/Down/Left/Right. Up/Down/ PAIR Left/Right Press Up/Down/Left/Right on the button to select or set functions. SOUND MODE • Repeat To use the Repeat function in “USB” mode, press the Up button. • Music Skip WOOFER Press the Right button to select the next music file.
- Page 12 SOUND MODE WOOFER SOUND WOOFER MODE TONE CH LEVEL CONTROL (BASS) LEVEL Push the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to +6. To set the woofer (bass) volume level to 0 (Default), press the button. WOOFER By pressing the button, you can adjust the volume of the treble or bass sound.
-
Page 13: Using The Hidden Buttons (Buttons With More Than One Function)
3.1.2 ch 5.1.2 ch • The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from. • When the input source is Dolby Atmos®, DTS:X, the Subwoofer-only setup provides 3.1.2 channel audio, while the Subwoofer &... -
Page 14: Adjusting The Soundbar Volume With A Tv Remote Control
• Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA 1. Turn Off the Soundbar. 2. Push up and hold the WOOFER button for 5 seconds. -
Page 15: Connecting The Soundbar
04 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order: • For more information about the required electrical power and power consumption, refer to the label attached to the product. - Page 16 Manually connecting the Subwoofer if automatic connection fails Before performing the manual connection procedure below: • Check whether the power cables for the Soundbar and subwoofer are connected properly. • Make sure that the Soundbar is turned on. 1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds. •...
- Page 17 Red and blue See the contact information Blinking Malfunction for the Samsung Service Centre in this manual. NOTES • Before moving or installing this product, be sure to turn off the power and disconnect the power cord. • If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear of the sub-woofer will turn red after blinking blue several times.
-
Page 18: Connecting The Samsung Wireless Rear Kit To Your Soundbar
Wireless Rear Speakers (sold separately) are clear of any obstructions. Connecting the Samsung Wireless Rear Kit to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9200S sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit manual. -
Page 19: Connecting To A Tv
05 CONNECTING TO A TV Method 1. Connecting with HDMI Connecting the TV that supports HDMI ARC/eARC (Audio Return Channel/ Enhanced Audio Return Channel) CAUTION • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. •... - Page 20 • To connect with eARC, the eARC function in the TV menu should be set to On. Refer to the TV user manual for details on setting. (e.g. Samsung TV : Home ( ) → Menu → Settings ( ) →...
-
Page 21: Method 2. Connecting Using An Optical Cable
Method 2. Connecting using an Optical Cable Pre-connection Checklist • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • When you use an optical cable and the terminals have covers, be sure to remove the covers. Bottom of the Soundbar Optical Cable (not supplied) - Page 22 Using the Q-Symphony Function For Q-Symphony, the Soundbar syncs with a Samsung TV to output sound through two devices for optimum surround effect. When the Soundbar is connected, the menu, “TV+Soundbar” appears under the Sound Output menu of the TV. Select the corresponding menu.
-
Page 23: Method 3. Connecting Via Bluetooth
Method 3. Connecting via Bluetooth When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling. • Only one TV can be connected at a time. BT PAIRING The initial connection 1. Press the PAIR button on the remote control to enter the “BT PAIRING”... - Page 24 Disconnecting the Soundbar from the TV Press the (Source) button on the top panel or on the remote control and switch to any mode but “BT”. • Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.) •...
-
Page 25: Connecting An External Device
06 CONNECTING AN EXTERNAL DEVICE Method 1. Connecting using an HDMI Cable (Capable of Dolby Atmos®/DTS:X decoding and playback) Pre-connection Checklist • If the Audio Output options include Secondary Audio, make sure Secondary Audio is set to Off. • Make sure that the content supports Dolby Atmos®/DTS:X. Bottom of the Soundbar HDMI HDMI OUT... -
Page 26: Method 2. Connecting Using An Optical Cable
Open the audio output options on the settings menu of your BD player or other device and make sure that “No Encoding” is selected for Bitstream. For example, on a Samsung BD Player, go to Home Menu → Sound → Digital Output and then select Bitstream (unprocessed). -
Page 27: Connecting A Usb Drive
07 CONNECTING A USB DRIVE You can play music files located on USB drive through the Soundbar. USB port HDMI USB (5V 0.5A) HDMI TO TV (eARC/ARC) DC 24V DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) 1. Connect the USB drive to the USB port on the bottom of the product. 2. -
Page 28: Connecting A Mobile Device
Soundbar for more than 5 seconds to display “BT PAIRING”. 2. On your device, select “[AV]Samsung Soundbar Q6C-Series” from the list that appears. • When the Soundbar is connected to the Mobile device, [Mobile Device Name] → “BT” appears in the front display. - Page 29 If the device fails to connect • If you have an existing Soundbar (e.g., “[AV]Samsung Soundbar Q6C-Series”) on the list of speakers on the Mobile device, delete it. • Then repeat steps 1 and 2. What is the difference between BT READY and BT PAIRING? •...
- Page 30 • A Bluetooth device may experience noise or malfunction under in the following conditions: – When the body is in contact with the signal transceiver on the Bluetooth device or Soundbar – In corners or when there is an obstacle in proximity, such as a wall or partition, where electrical changes may occur.
- Page 31 (A device that is not currently playing will be disconnected.) • Only one Samsung TV, or 2 Bluetooth devices can be connected at the same time. • The Soundbar will be disconnected from Bluetooth devices when it receives a connection request from a Samsung TV.
-
Page 32: Using Tap Sound
Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar. • This function may not be supported, depending on the mobile device. • This function is only compatible with Samsung mobile devices with Android 8.1 or later. SmartThings App Top of the Soundbar TAP ... -
Page 33: Installing The Wall Mount
09 INSTALLING THE Wallmount Components WALL MOUNT Wall Mount Guide Installation Precautions • Install on a vertical wall only. (M4 x L10) • Do not install in a place with high Holder-Screw Screw temperature or humidity. • Verify whether the wall is strong enough to support the product’s weight. - Page 34 2. Align the Wall Mount Guide’s Centre Line 5. Push a screw (not supplied) through each with the centre of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.
-
Page 35: Installing The Soundbar In Front Of Tv
10 INSTALLING THE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the SOUNDBAR IN Bracket-Wall Mounts on the Holder-Screws on the wall. FRONT OF TV Wall Place the Soundbar on a TV stand. 8. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws. -
Page 36: Software Update
Soundbar power cord. firmware update to fail. • When the latest version is installed, no 2. Go to (www.samsung.com) → search for the update is performed. model name from the customer support menu • Depending on the USB type, update may not option. -
Page 37: Reset
Reset Top of the Soundbar INIT OK With the Soundbar on, press the (Volume) buttons on the top of the Soundbar at the same time for at least 5 seconds. “INIT OK” appears on the display and then the Soundbar is reset. CAUTION •... -
Page 38: Troubleshooting
; For sound output of the TV, select Place the Soundbar far from such devices that Soundbar. (Samsung TV: Home ( ) → can cause radio interference. (E.g., wireless router) Menu →... - Page 39 → Sound Output → Bluetooth Speaker List) ; HDMI-CEC may not be activated on the TV. ; The automatic TV connection may be Turn on the CEC on the TV menu. (Samsung disabled. While the Soundbar is in “BT TV: Home ( ) →...
-
Page 40: Licence
; When you turn off the Soundbar while registered trademarks owned by Bluetooth SIG, watching TV, power synchronization with Inc. and any use of such marks by Samsung the TV is disabled. First turn off the TV. Electronics Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. -
Page 41: Open Source Licence Notice
– The product can wake with a button press on the chassis from sleep mode. ENERGY STAR qualified model only (The other models) – As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency. -
Page 42: Specifications And Guide
Port deactivation method function. NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. • Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements. The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the... - Page 43 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit: www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/...
- Page 44 EIRE UNITED KINGDOM EIRE his Samsung product is warranted for the period of twelve (12) months from the origi- his Samsung product is warranted for the period of twelve (12) months from the origi- beyond the control of Samsung. beyond the control of Samsung.
- Page 45 © 2023 Samsung Electronics Co., Ltd. All rights reserved. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre. Country Samsung Service Centre Web Site Country Samsung Service Centre ...
