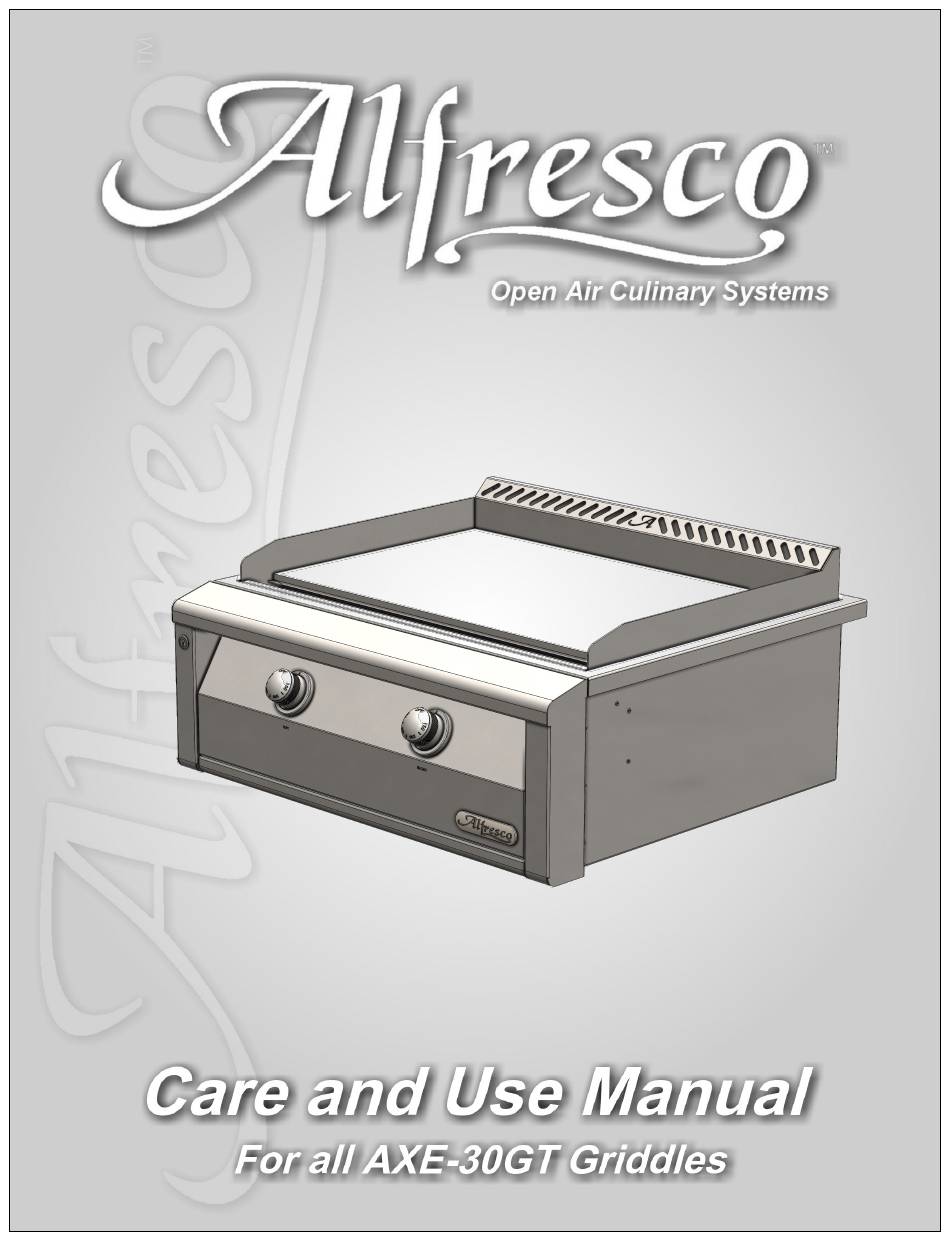

Summary of Contents for Alfresco AXE-30GT
-
Page 2: General Safety Precautions
ALFRESCO™ Gourmet Grills A division of Superior Equipment Solutions, Inc. 1085 Bixby Drive City of Industry, CA. 91745 Ph.: (888) 383-8800 3020914 Fax: (323) 726-4700 Web: www.alfrescogrills.com GENERAL SAFETY PRECAUTIONS: DANGER WARNING IF YOU SMELL GAS: 1. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE LIQUIDS OR VAPORS IN THE VI- 1. -
Page 3: California Proposition 65 Warning
AVERTISSEMENT AVERTISSEMENT PIÈCES ÉLECTRIQUES ET COMPOSANTS. GAZ INFLAMMABLE DÉBRANCHER TOUS LES GAZ PROPANE OU DÉBRANCHER TOUS LES BLOCS D'ALIMENTA- GAZ NATUREL DE CET APPAREIL AVANT DE TION ET LES PILES AVANT DE LES RÉPARER. PROCÉDER À L'ENTRETIEN. ANSI Z21.58-2018 / CSA 1.6-2018 TESTED IN ACCORDANCE WITH: The Standard for Outdoor Cooking Gas Appliances. - Page 4 GRIDDLE TO REDUCE THE RISK OF FIRE, BURN HAZARD OR OTHER INJURY. KEEP THIS MAN- UAL FOR FUTURE REFERENCE. When properly cared for, your Alfresco™ Griddle will give safe, reliable service for many years. Howev- er, extreme care must be used since the Griddle produces intense heat, which can increase accident po- tential.
- Page 5 (Safety, cont.) Never lean over a hot pot or pan while being heated on top of the Griddle. When lighting a burner, always pay close attention to what you are doing. Be certain you are turning the knob labeled for the burner you intend on using on the left or right side of the Griddle. When using the Griddle do not touch the Griddle cooking surface or immediate surrounding areas as these areas become extremely hot and could cause burns.
-
Page 6: Built-In Models
3” around the Griddle to allow heat to escape freely while cooking. ASSEMBLY BUILT-IN MODELS: To locate your Alfresco™ Griddle into your enclosure, complete the following steps: 1. Remove all packaging materials 2. Install and secure the body of the Griddle to your counter’s enclosure. -
Page 7: Electrical Requirements
CART MODELS: Please follow the instructions supplied with the unit in order to mount and connect all required piping that comes with the unit. ELECTRICAL REQUIREMENTS: The AXE-30GT Griddle is equipped with electrical igniters for the burners and accent lights on the front panel of the unit. The electrical system is designed to be operated at: 115 VAC - 50 / 60 Hz. - Page 8 There is also a secondary high capacity, hose/regulator assembly for connection to a standard 20 Lb. LP cylinder. The LP gas pressure regulator and hose supplied with this unit must be used without alteration. If this assembly needs to be replaced use only the type specified by ALFRESCO™ for this appliance.
-
Page 9: Natural Gas Connection
Ensure that the service pipe supplying the Griddle is fitted with a shut off valve conveniently positioned and easily accessible as an emergency gas shutoff. Your ALFRESCO™ Griddle for use with Natural Gas comes equipped with its own regulator which MUST NOT be removed. If this regulator needs to be... - Page 10 0.5 psi (3.5 kPa). The ALFRESCO™ Griddle must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures...
-
Page 11: Leak Testing
LEAK TESTING GENERAL: Although all gas connections on your ALFRESCO™ Griddle are leak tested at the factory prior to ship- ment, a complete gas tightness check must be performed at the installation site due to possible mishan- dling in shipment, or excessive pressure unknowingly being applied to the unit. -
Page 12: Lighting Instructions
The cooking Griddle assembly is very heavy (approx. 61 lbs.) and it must be done carefully by two people. If you are unable to lift the cooking surface because of its weight, we strongly suggest contacting Alfresco customer service. Figure # 6... - Page 13 STEP 1: The first step is to remove grease trough (Figure # 6) by lifting it up from the Griddle front area. STEP 2: 1/4-20 x 1/2” BOLT Using a 7/16” wrench or socket, remove the (2) 1/4-20 x 1/2” bolts at the front of the Griddle. (Figure # 7).
-
Page 14: Adjustment Test
NOTE: BE CAREFUL, AS THE BURNER WILL BECOME VERY HOT AFTER LIGHTING IT. ADJUSTMENT TEST: Always keep your face away from the Griddle or Burners as far as possible. • Turn the control knob to at least 150°F or higher to light the burner. This will turn on the •... -
Page 15: Troubleshooting
TROUBLESHOOTING If the burner glow igniter does not light up when turning the knob (150°F when cold or higher when hot) then check to see if there is power to the unit. If there is power but the glow igniter will not turn ON, con- tact your service representative. - Page 16 10. Place the cover over Griddle once it has cooled down to further protect the cooking surface. If the preceding guidelines are adhered to, your Alfresco™ Griddle should offer excellent life and should live up to its reputation of being “stainless”.
-
Page 17: Maintenance And Troubleshooting
RUST-BROWN MARKS: When this type of staining occurs it is unlikely that rusting of the stainless steel itself caused the marks. Similar marks can be found with both porcelain and plastic sinks. The rust marks are more likely to be the result of small particles of “ordinary-steel”... -
Page 18: Gas Smell
BEFORE CALLING FOR SERVICE: If your Alfresco™ Griddle does not function properly use the following checklist before contacting your dealer for service. You may save the cost of a service call and the inconvenience of being without your Griddle. Additional troubleshooting tips can be found on our website at: www.alfrescogrills.com. - Page 19 ADDITIONAL IMPORTANT CLEANING AND STORAGE CONSIDERATIONS: In order to maintain your Griddle in clean working order, it will be necessary, under certain conditions, to take additional precautions. If your Griddle is located in a coastal area, it will be exposed to salty air which is corrosive.
-
Page 20: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact our Alfresco™ Gourmet Grills authorized service agency at: (866) 203-5607 Please provide: Model Number •... - Page 21 NOTES:...
- Page 22 NOTES:...
-
Page 23: Limited Lifetime Warranty
Limitations & Exclusions: 1. Alfresco’s warranty applies only to the original purchaser and may not be transferred. 2. Alfresco’s warranty is in lieu of all other warranties, expressed or implied and all other obligations or liabilities related to the sale or use of its grill products. 3. Alfresco’s warranty shall not apply and Alfresco is not responsible for damage resulting from misuse, abuse, alteration of or tampering with the appliance, accident, hostile environment, flare-up fires, improper installation, or installation not in accordance with the instructions contained in the User Manual, or the local codes.
