Summary of Contents for SIMPLIHOME WyndenHall Brooklyn+Max AXCART17-HB

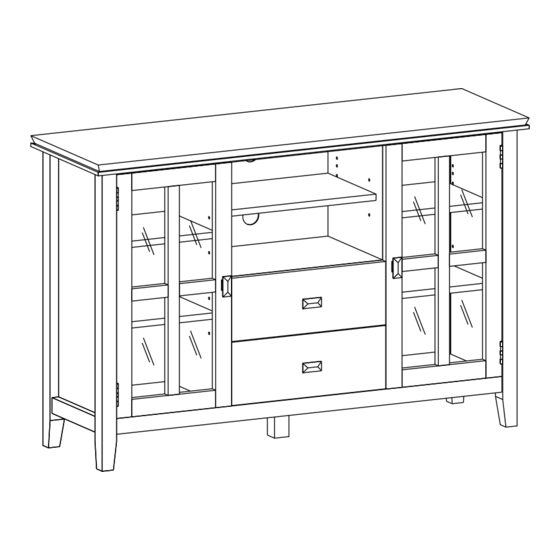

- Page 1 SIMP HOME ® L I F E B Y D E S I G N ARTISAN / HOLDEN / STRATFORD TALL TV MEDIA STAND MODEL # AXCART17-HB 1/22...
- Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCART17-HB PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER CENTRE SHELF BOTTOM SHELF QTY 1 QTY 1 QTY 1 DOOR (L&R Same) RIGHT DIVIDER SHELF PART QTY 2 QTY 1 QTY 4 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCART17-HB PARTS DESCRIPTION BACK PANEL SHELF PART BACK PANEL QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL DRAWER FRONT QTY 1 QTY 1 QTY 2 RIGHT DRAWER SIDE DRAWER BACK LEFT DRAWER SIDE QTY 2 QTY 2...
-
Page 7: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCART17-HB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 26 QTY 20 SETS PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15 mm M3 X 12 mm M4 X 15 mm QTY 8... - Page 8 COMPONENTS – KEY DIAGRAM MODEL # AXCART17-HB 8/22...
- Page 9 ASSEMBLY MODEL # AXCART17-HB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Left Drawer Front L . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides ML , MR . 3. Insert 2 Cam Locks 2 into guide holes on each Drawer Side ML , MR . 4.
- Page 10 ASSEMBLY MODEL # AXCART17-HB STEP 3 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot. 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen Key 3 to tighten screws. Do not over tighten. STEP 4 1.
- Page 11 ASSEMBLY MODEL # AXCART17-HB STEP 5 1. Attach 3 Cam Lock Pins 2 to each Divider EL , ER . 2. Align Cam Lock Pins with guide holes and attach Center Shelf C . 3. Insert 6 Cam Locks 2 into guide holes on Center Shelf C . 4.
- Page 12 ASSEMBLY MODEL # AXCART17-HB STEP 6 1. Attach Dividers EL , ER to Bottom Shelf D using 6 Allen Key Screws 1 through guide holes. 12/22...
- Page 13 ASSEMBLY MODEL # AXCART17-HB STEP 7 1. Attach 6 Cam Lock Pins 2 to 2 Sides BL , BR using pre-drilled holes. 2. Align Cam Lock Pins with guide holes on Bottom Shelf D and attach Bottom Shelf D . 3.
- Page 14 ASSEMBLY MODEL # AXCART17-HB STEP 8 1. Attach Bottom Support Leg P to Bottom Shelf D using 4 Phillips Screws 10 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. 14/22...
- Page 15 ASSEMBLY MODEL # AXCART17-HB STEP 9 1. Attach Top A to 2 Sides BL , BR and 2 Dividers EL , ER using Allen Key Screws 1 through guide holes. 2. Use Allen Key 3 to tighten screws. Do not over-tighten. 15/22...
- Page 16 ASSEMBLY MODEL # AXCART17-HB STEP 10 Note: The back of the tv frame does not have pre-drilled holes to a ach the back panels. Warning Label 1. Use Phillips screws Round Head 6 to attach Back Panels I , J , KL , KR through guild holes.
- Page 17 ASSEMBLY MODEL # AXCART17-HB STEP 11 Last Step ( after adjust the door ) First Step 1. Attach hinges on Doors F to Sides BL , BR using Phillips Screws 4 into pre-drill holes: - Using Phillips screwdriver to attach Screws 4 at middle hole of hinges for both top & bottom hinges.
- Page 18 ASSEMBLY MODEL # AXCART17-HB STEP 12 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 9 for each Shelf H or G in desired location . 2. 2 Shelf Supports 9 may be used on back top of each Shelf H or G as a tipping restraint.
- Page 19 ASSEMBLY MODEL # AXCART17-HB STEP 13 1. Insert assembled drawers into glides on assembled Tall TV Media Stand. 19/22...
- Page 20 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 21 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 22: Warranty
SIMP HOME ® L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
