Avanti AV-AB-03 Owner's Manual & Safety Instructions
  1. Manuals
  2. Brands
  3. Avanti Manuals
  4. Airbrushes
  5. AV-AB-03
  6. Owner's manual & safety instructions

Avanti AV-AB-03 Owner's Manual & Safety Instructions

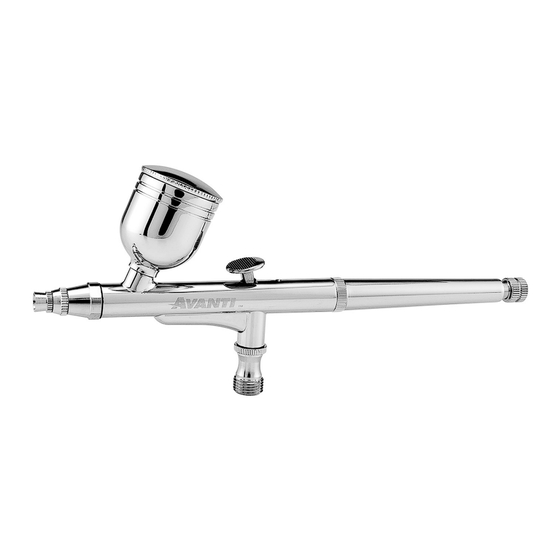

0.3mm gravity feed dual-action airbrush
Hide thumbs

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
NOTICE
NOTICE
clean iMMeDiately
clean the airbrush
iMMeDiately after use.
Delayed or inadequate cleaning will
permanently clog the airbrush.
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22j

Advertisement

loading
Need help?

Need help?

Do you have a question about the AV-AB-03 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avanti AV-AB-03

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. table of contents Safety ............2 Maintenance ..........12 Specifications ..........6 Parts List and Diagrams ......15 Setup ............6 Warranty ............ 16 Operation ............

  • Page 3: Safety

    NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. b. Do not expose compressor to rain or wet b. Do not use the compressor if the switch conditions. Water entering a compressor does not turn it on and off. Any compressor will increase the risk of electric shock.
  • Page 4 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. 6. Read all of the information concerning 17. All air line components, including hoses, pipe, coating products and cleaning solvents. connectors, filters, etc., must be rated for a minimum Do not use chlorinated solvents working pressure of 150 PSI, or 150% of the (e.g.
  • Page 5 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. Symbol Definitions WARNING marking concerning Risk Pounds per square inch of pressure of Eye Injury. Wear ANSI‑approved eye protection. Cubic Feet per Minute flow WARNING marking concerning Risk of Respiratory Injury.

  • Page 6: Specifications

    NOTICE clean the airbrush iMMeDiately after use. Delayed or inadequate cleaning will permanently clog the airbrush. Specifications Working Air Pressure 15‑30 PSI 1/8″ Airbrush Hose Air Inlet (M10 x 1.0 thread) Cup Capacity 0.3 oz Nozzle/Needle Size 0.3mm Setup - Before Use: read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

  • Page 7: Operation

    NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Work area Set Up 1.
  • Page 8 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. General airbrush Operation tO preVent SeriOUS inJUry: Do not adjust or tamper with any control or component in a way not specifically explained within this manual. improper adjustment can result in tool failure or other serious hazards.
  • Page 9 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. painting 1. air note: Practice painting techniques on scrap workpiece. 1. Plug air compressor into grounded 120VAC outlet. Turn air compressor on. 2. paint 2.
  • Page 10 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. cleaning WarninG! tO preVent SeriOUS inJUry: tO preVent Fire, iF a FlaMMaBle SOlVent neeDS tO Be USeD, aDHere tO tHe FOllOWinG: a. Follow solvent manufacturer’s clean up c.
  • Page 11 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. clean after every Use 1. Designate small container for cleaning parts. f. Add solvent to small container to cover parts. Soak no longer than 10 minutes. 2.

  • Page 12: Maintenance

    NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOUS inJUry FrOM acciDental OperatiOn: turn the power Switch “OFF”...
  • Page 13 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. troubleshooting problem possible causes likely Solutions Sputtering spray Low paint level. Refill Bottle. Improper trigger technique. Practice stop‑start technique (see page 9). Does not spray 1.
  • Page 14 NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. pleaSe reaD tHe FOllOWinG careFUlly THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 15: Parts List And Diagrams

    NOTICE Clean the Airbrush IMMEDIATELY after use. Delayed or inadequate cleaning will permanently clog the Airbrush. parts list and Diagrams parts list part Description part Description Needle Cap Spring Nozzle Cap Spring Case O‑Ring Needle Chucking Nut Head Cap Needle Small Nozzle Handle Big Nozzle...

  • Page 16: Warranty

    limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
