Mini Robot Metal Fighter Quick Manual

Metal Fighter & ROBONOVA Ⅱ Operating Notice (v 1.1)

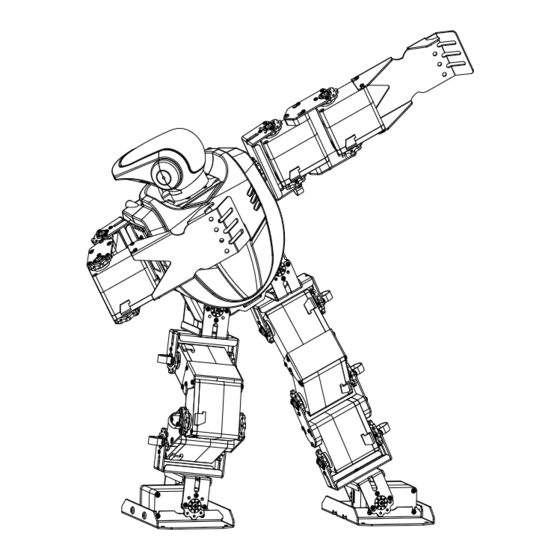

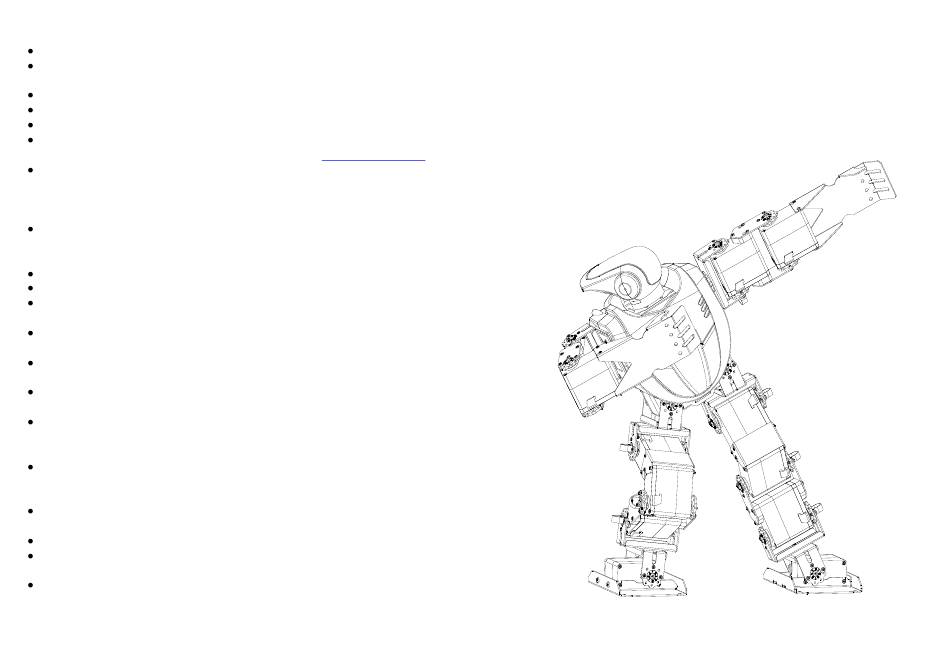

Metal Fighter
To assemble the MF tool like +type no.1 driver can be used.
The MF assembling method is using a screw bolt ( jointed to servo motor). Screw of motor doesn't
have to be removed completely. But some of screw bolts would be used for some of brackets.
Ⅱ
(ROBONOVA )
Cabling should be clean according to MF manual after assembling the MF
Every motor cable ports should be connected to assignment port on MRC-3024 MF.
It can't be able to service as free of charge when user mistake.
Metal Fighter Quick Guide (v1.1)
If you have any question about the assembly or zero point method, Please call MINIROBOT
(tel.82-32-260-7272, fax:82-32-260-7273) or connect hompage Q&A(http://www.minirobot.co.kr)
MF kit could be worked only after assembling and setting zero point through robobasic MF version.
Basically, robobasic commands and operating method can be known though application course
through robobasic can't be explained.
(because of many of motion sources to be known, please refer to them)
Charging time should be 1 hour, after full of charge, user can operate MF during 5min to 40 min
depending of every motion.
( If the robot running time is to be short, that's condition need to charge)
The MF battery is 6V-NIMH 1000mA with high discharge rate.
The charge is for 6V-NIMH with a charging current 1A. Honest battery have to be used.
The charge would be red lamp during charging, and it would be appear green lamp after full of
charge, the lamp appears to be on end off or put out the light when it has some some problem.
Even if the charge appears green lamp, any charge cannot full. In this case the safe status to
protect the battery and charger. Please reconnect.
If the charge would be green lamp after retrying one or two, this condition is full of charged
condition.
If the condition of charge would be flickering, that would be over electric charged or impossible
condition.
Remote controller shoud be operated by shooting against to MF head part. Also, as operating
system of the remote controller is an infrared rays, it might be unstable under fluorescent lamp or
outdoor.
The MF controller loading basic source program, user can operate various motion. The kind of
motions are entertainment mode, fighter mode, game mode, soccer mode, hurdle mode. User can
operate 120 type of motions.
Enclosed CD would include a user's program source, user can programming through robobasic MF
version.
Included Battery inner kit would not be charged , user should charge it.
User should operate MF motion on the hard flat floor. It could not operate on a lot of frictionized
floor like carpets or rubber floor
If you have any problem, Please check encloused CD
Mini Robot Corp.
