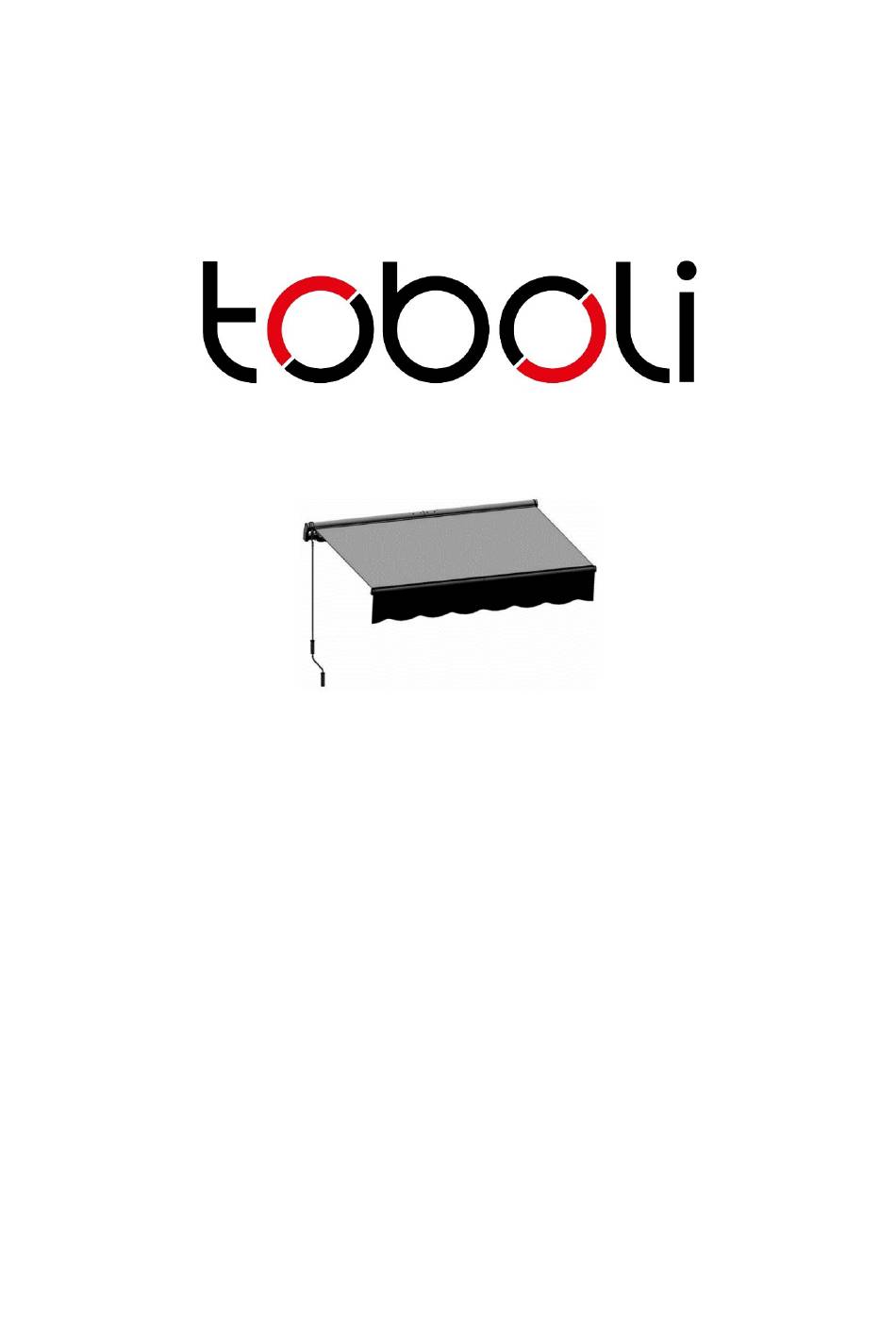

User's Manual
Articulated Arm Awning
63900–63905
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Summary of Contents for toboli 63900
- Page 1 User’s Manual Articulated Arm Awning 63900–63905 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 2 http://www.toboli.com 01 2023-1...
- Page 3 Roller (right) Connecting piece Expansion screw Plastic bolt for cover Roller connector Wall brackets and cord Front bar connector Screw 3×10 Torsion bar connector Screw 14×15 © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 3 http://www.toboli.com 01 2023-1...
- Page 4 Note! The awning over 3.5 m should also include the following parts: Attention! Awning arms can cause injuries. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 4 http://www.toboli.com 01 2023-1...
- Page 5 Do not cut the straps of the awning arms until the awning has been completely assembled! Right Assembly Step 1 Thread the awning cord and cut the cord to the length of the fabric. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 5 http://www.toboli.com 01 2023-1...
- Page 6 Step 2 Connecting the roller and front bar (left) © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 6 http://www.toboli.com 01 2023-1...
- Page 7 Step 3 Mounting the awning fabric and connecting roller and front bar © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 7 http://www.toboli.com 01 2023-1...
- Page 8 Plug the connector into the front bar. 2. Insert part P into the front bar and secure with screw Q. 3. Install the bar caps. Left Right © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 8 http://www.toboli.com 01 2023-1...
- Page 9 2. Insert the roller into the square hole of the gear and the round square of the roller bracket. 3. Connect the two torsion bars and screw them together. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 9 http://www.toboli.com...
- Page 10 You can safely cut the straps that hold the awning arms and torsion bar together. The assembly of the awning is complete. 2. Now proceed to the wall mounting section. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 10 http://www.toboli.com 01 2023-1...
- Page 11 The angle of inclina- tion can only be changed slightly. So keep this in mind when deciding where to put your awning. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 11 http://www.toboli.com...
- Page 12 3 wall brackets, one for each end and one for the Awnings 330–426 cm middle require a total of 4 wall brackets, one for each end and two for the Awnings 426–609 cm middle © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 12 http://www.toboli.com 01 2023-1...
- Page 13 4. Tighten the bolts securely with a 19 mm hex wrench. It is best to use a closed-ended hex wrench rather than an open-ended wrench to avoid damaging the nut if the wrench slips off. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 13 http://www.toboli.com...
- Page 14 6. Your awning is now fully assembled. If you are happy with the height of the front bar (inclination of the awning), you do not need to do anything else. If you are unsatisfied, read the following section. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 14 http://www.toboli.com 01 2023-1...
- Page 15 Every awning comes with a pre-set inclination (angle) that is considered ideal. However, if you need to make an adjustment, it can be done in a few simple steps. Front bar Awning fabric Arm bracket Awning arm Helper © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 15 http://www.toboli.com 01 2023-1...
- Page 16 Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 63900–63905 Page 16 http://www.toboli.com 01 2023-1...
