Summary of Contents for OWLplane Delta Hornet OWL

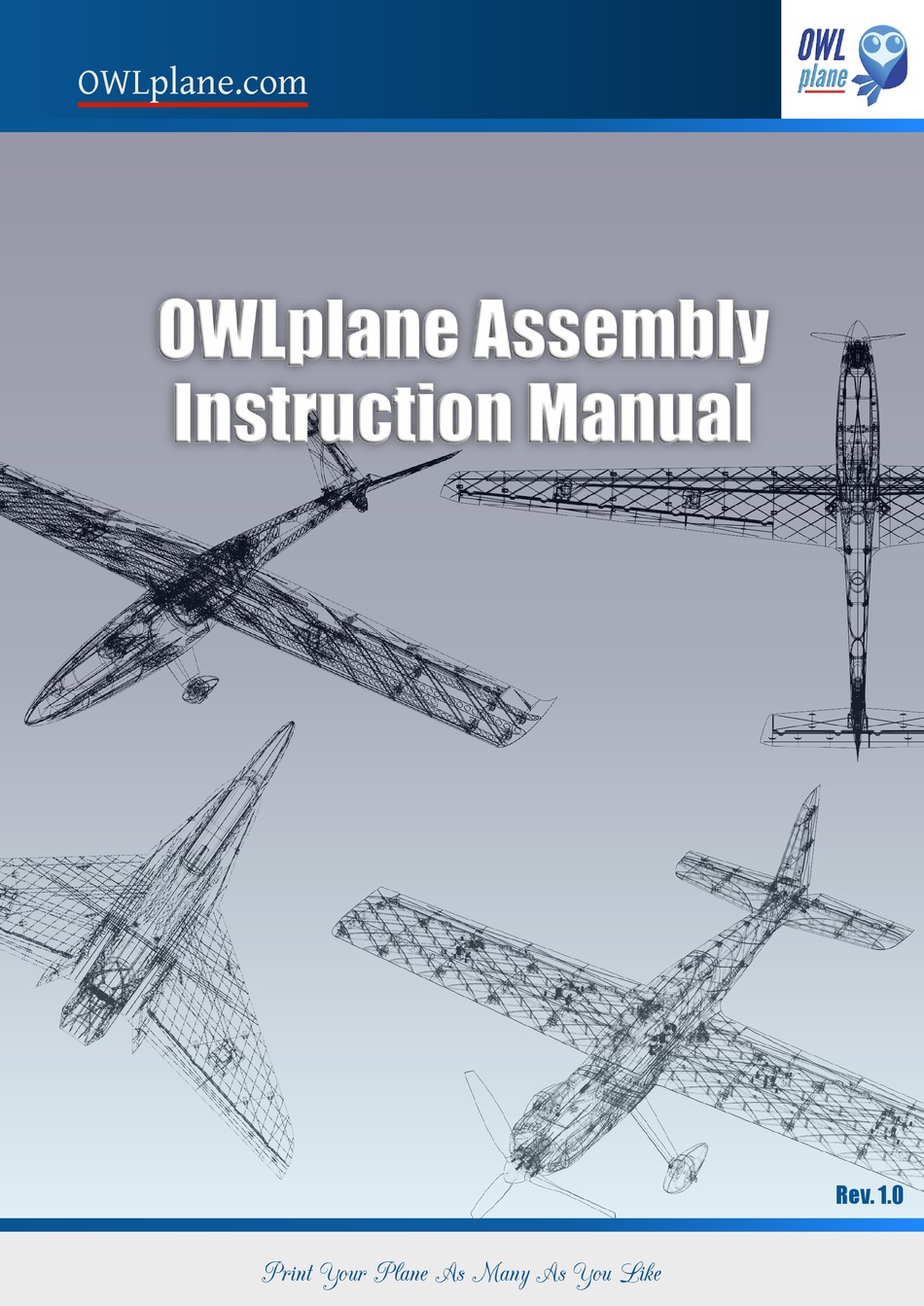

Page 1 OWLplane.com Rev. 1.0 Print Your Plane As Many As You Like...
Page 2: Table Of Contents
OWLplane.com Table of Content Pre-Assembly Processes....................3 Tools Used for Cleaning and Clearing Tolerance Cleaning and Clearing Tolerance Finding and Checking Pin Position Fuselage And Wing Assembly ..................8 Preparing Required Hardware (Fiber Carbon Pin/3D Printed Plastic Pin and Fiber Carbon Spar)
Page 3: Pre-Assembly Processes
Pre-Assembly Processes There are some pre-processes that need to go through before assembling commenced. Once completed, the assembling processes should go without any tolerance and clearance issues. Here are the processes: Cleaning and clearing tolerance processes. Making sure/checking the parts just fit in. Use the following tools: 2.1.
Page 4 OWLplane.com Checking Tolerance (Making Sure it fits) Once you have done cleaning and clearing tolerance processes, need to make sure that now it fits each other when assembling. 15mm and 30mm Pins Clearance Have two options, either utilizing fiber carbon or 3D printed one.
Page 5 Checking Rod Clearance for Attaching CS (Control Surface) Parts Using rod to check that there is no resistance ▷ when inserting the pin. Try to push and pull the rod checking if there is ▷ significant resistances. Reprocess cleaning and clearing shown on the ▷...
Page 6: Finding And Checking Pin Position
OWLplane.com Finding and Checking Pin Position The objective of using pins is to make the assembly processes run smoothly (fit in correctly). The process of finding and checking pin position is to make sure that the pins are well installed/used.
Page 7 Print Your Plane As Many As You Like Page : 7...
Page 8: Fuselage And Wing Assembly
OWLplane.com Fuselage And Wing Assembly All fuselages and wings are designed to be ready with the usage of guide or alignment tools. Please find details below explaining about guide or alignment mechanism utilizing built in pin, fiber carbon tube pin/3D printed plastic pin, fiber carbon spar and push rod.
Page 9: Gluing Two Parts
Guide and/or Alignment Tools or Mechanism for Fuselage and Wing Tools used for fuselage and wing guide and/or alignment are depicted in the figures below: Gluing Two Parts Use thick CA for bonding two parts so that it will also fill ▷...
Page 10: Wing And Fuselage Pin
OWLplane.com Wing And Fuselage Pin To attach wings into the fuselage, OWLplane Models use either screw/nut or 3D printed pin. Please find below details their usage. 3D Printed Plastic Pin The 3D printed plastic pin is inserted into two holes from the fuselage and wing.
Page 11 Print Your Plane As Many As You Like Page : 11...
Page 12: Stabilizer And Control Surface Assembly
OWLplane.com Stabilizer And Control Surface Assembly All stabilizers and control surfaces are designed to use guide or alignment tools. Please find detail below explaining about pin and rod as guide and/or alignment. Preparing Pin and Rods You may need to prepare different size rod ranging from 1.0 mm to 2.0mm OD. Mostly it will fit into with 1.5mm rod size but in some cases (usually when using higher hotend temperature, it only fits with 1.0mm rod).
Page 13: Guide And Alignment Tools And Mechanism
Guide and Alignment Tools and Mechanism Try to understand the relationship among parts by watching provided animation and assembly videos. Once you understood the relationship, the next step is to try identifying the pin locations. Identify Pin Location The two figures on the right side show how to ▷...
Page 14: Gluing Two Parts
OWLplane.com Gluing Two Parts Use thick CA for bonding two parts. ▷ Press firmly so that there is no gap between joining surface. ▷ Use CA accelerator right after joining (faster cure time). ▷ Good practice if you coat the joining surface area with thin CA so that it will add more bonding strength.
Page 15 Print Your Plane As Many As You Like Page : 15...
Page 16: Canopy And Hatch Assembly
Parts, Spring and Pin You can get the spring by purchasing ballpoint pen from your local bookstore. ▷ Make sure that you have printed all parts required shown in OWLplane Model animation and assembly ▷ videos. Print Your Plane As Many As You Like...
Page 17: Inserting Spring And Latch
Inserting Spring and Latch Make sure you have done the clearance ▷ processes. Make sure the spring does fit into its position. ▷ Try to play the latch back and forth to test. ▷ Gluing 3D Printed Parts When gluing the latch part, allow some glue free ▷...
Page 18: Gears And Wheels Assembly
OWLplane.com Gears And Wheels Assembly Like fuselage and wings, gears also use pins as guide and/or alignment. Please start with assembling gears followed by assembling wheels. Preparing Gears and Wheels To cut the required shaft, you may use dremel tool/rotary saw (or similar tool).
Page 19: Assembling Gears And Wheels
The shaft diameter depends on how big is the wheel and also the total weight of the plane (just follow ▷ information in the specific OWLplane Model web page under PRODUCTS tab for the specification). Print Your Plane As Many As You Like...
Page 20: Placing And Locking The Battery
OWLplane.com Placing and Locking The Battery Once you have found the position for the battery where CG (Center of Gravity) can be correctly achieved, install the Velcro to that position by using Velcro sticker/Polyester hook and loop peel-n-stick self-adhesive. Your battery also needs to have Velcro sticker attached.
Page 21 Print Your Plane As Many As You Like Page : 21...
Page 22: Servo Assembly
Servo Assembly All OWLplane Models use 3D printed servo cover and bridge so that it opens any other brand servos. Exception is only applied for some conditions where implementing servo cover or bridge is not practical (for example, VJet OWL stabilizer servos, located at the back of the plane, it has fixed position and also OWL MDM-1 Fox rudder servo).
Page 23: Installing And Assembling Servo And Push Rod Using Servo Cover
Installing and Assembling Servo and Push Rod using Servo Cover Depending on the servo dimension, select suitable thin or thick double tape to fit in. The double tape is to ▷ make sure that the servo is firm in its position. Stop collar is used to put pushrod in fixed position.
Page 24: Installing And Assembling Servo And Push Rod Using Servo Bridge
OWLplane.com Installing and Assembling Servo and Push Rod Using Servo Bridge Just put the servo into the servo bridge location in the fuselage. ▷ Use heated rod to create guided holes to insert the servo screws. ▷ Stop collar is used to put pushrod in fixed position.
Page 25 Print Your Plane As Many As You Like Page : 25...
Page 26: Edf And Motor Mounting
OWLplane.com EDF And Motor Mounting This page explains motor assembly for both Outrunner Motor and EDF. It starts explaining Outrunner Motor first and followed by how to install EDF. Print Your Plane As Many As You Like Page : 26...
Page 27: Installing Outrunner Motor
Installing Outrunner Motor Just follow the steps on the figures below. It should be self explanatory. Print Your Plane As Many As You Like Page : 27...
Page 28: Installing Edf Motor
OWLplane.com Installing EDF Motor Installing EDF into the plane should be straightforward. ▷ Put the EDF into its position / location. ▷ With the help of heated rod, push the rod into provided EDF screw holes to create guided holes so that it ▷...
Page 29 Print Your Plane As Many As You Like Page : 29...
