Bebob B480Cine User Manual

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Features
A high capacity, dual-voltage high load battery, compact and lightweight
Direct fitting to a camera or device via B-Mount
Dual-Voltage 14,4V/4s and 28,8V/8s
475Wh Energy
450W continuous power drain
20A continuous discharge current
23A peak discharge current
Five-step LED power indicator (100% - 80% - 60% - 40% - 20%)
Full capacity status LED (green over 80%; yellow between 60% and 80%; red under 60%)
Enhanced data communication (B-Mount protocol)
bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 (0)89 8563 485-0

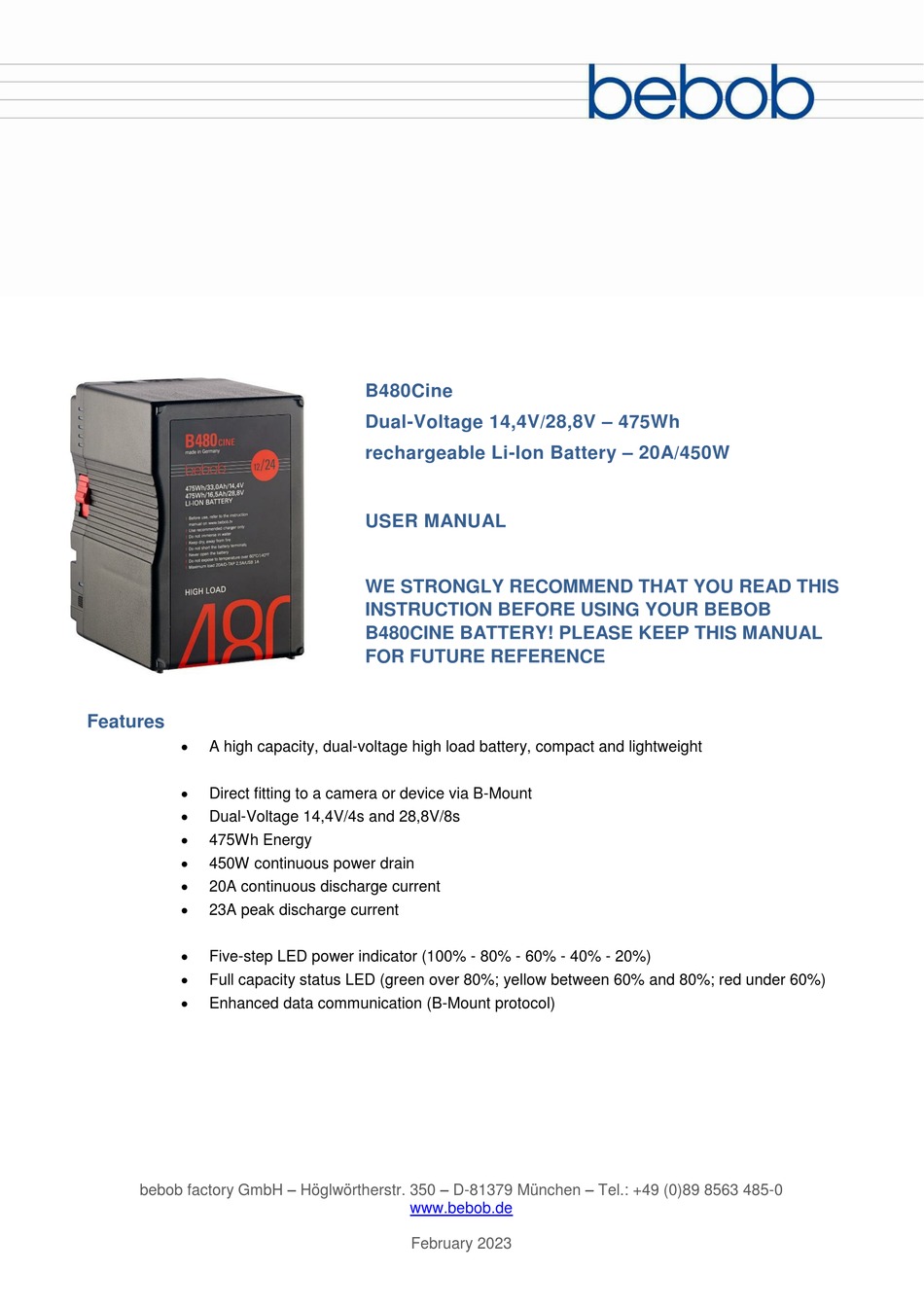

B480Cine
Dual-Voltage 14,4V/28,8V – 475Wh
rechargeable Li-Ion Battery – 20A/450W
USER MANUAL
WE STRONGLY RECOMMEND THAT YOU READ THIS
INSTRUCTION BEFORE USING YOUR BEBOB
B480CINE BATTERY! PLEASE KEEP THIS MANUAL
FOR FUTURE REFERENCE
USER MANUAL
WE STRONGLY RECOMMEND THAT YOU READ THIS
INSTRUCTION BEFORE USING YOUR BEBOB
B290CINE BATTERY! PLEASE KEEP THIS MANUAL
FOR FUTURE REFERENCE
www.bebob.de
February 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the B480Cine and is the answer not in the manual?

Questions and answers

Related Manuals for Bebob B480Cine

Summary of Contents for Bebob B480Cine

  • Page 1  Full capacity status LED (green over 80%; yellow between 60% and 80%; red under 60%)  Enhanced data communication (B-Mount protocol) bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 (0)89 8563 485-0 www.bebob.de February 2023...

  • Page 2: Safety Instructions

     Wait 30 Minutes after discharge before you put the battery on a charger.  The bebob battery can be charged with an external bebob charger (or equivalent using the CC-CV method).  The maximum voltage shall not be exceeded (see Specifications).

  • Page 3: Warranty

    After storage some self-discharge will occur. Before re-use it is advisable to recharge the battery full. Warranty  The B480CINE is covered by a 2 years unconditional warranty on all parts, except the cells.  The cells are covered by a 2-year warranty, 80% of the original capacity.

  • Page 4: Specifications

    Operating Temp. Range Charge: + 10°C ~ + 30°C recommended: Discharge: - 20°C ~ + 55°C Storage:- 20°C ~ + 35°C (<85% RH ) bebob factory GmbH – Höglwörtherstr. 350 – D-81379 München – Tel.: +49 (0)89 8563 485-0 www.bebob.de February 2023...
  • Page 5 Batteries are forbidden in your checked-in luggage 3. Transport as air-, road- and sea-freight  Li-Ion batteries, and so bebob Batteries >160 Wh, when shipped by air, road or sea are classified as dangerous goods class 9 and subject to special UN certified packaging. ...
