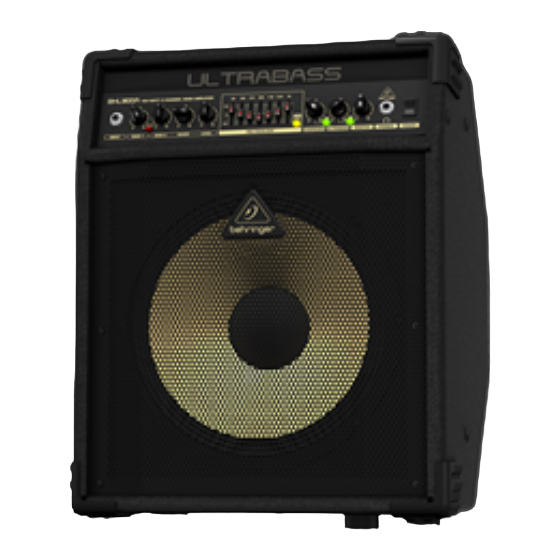

Behringer ULTRABASS BXL1800A Service Manual

180-watt 2-channel bass amplifier with original bugera 12" aluminum-cone speaker, fbq spectrum analyzer, compressor and ultrabass processor
Hide thumbs Also See for ULTRABASS BXL1800A:
Table of Contents

Advertisement

Quick Links

Service Manual
Created: 14 March 2015
ULTRABASS BXL1800A
180-Watt 2-Channel Bass Amplifier with Original
BUGERA 12" Aluminum-Cone Speaker, FBQ Spectrum
Analyzer, Compressor and Ultrabass Processor
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PCB Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
© 2015 MUSIC Group IP Ltd. All third party trademarks mentioned belong to their respective owners and are not affiliated with MUSIC Group IP Ltd. All information (including
drawings and diagrams) contained in this document is the property of MUSIC Group IP Ltd., its subsidiaries or content providers, and is protected by intellectual property (copyright,
trademark, patents, etc) laws, international treaty provisions and other laws. Any unauthorized disclosure, use, application, reproduction, modification, lease, sale, transmission or
any other dealings in the information may violate applicable laws and result in civil and/or (where applicable) criminal liabilities and penalties.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRABASS BXL1800A and is the answer not in the manual?

Questions and answers

Related Manuals for Behringer ULTRABASS BXL1800A

Summary of Contents for Behringer ULTRABASS BXL1800A

  • Page 1 Service Manual Created: 14 March 2015 ULTRABASS BXL1800A 180-Watt 2-Channel Bass Amplifier with Original BUGERA 12" Aluminum-Cone Speaker, FBQ Spectrum Analyzer, Compressor and Ultrabass Processor Specifications ..............2 PCB Schematic .

  • Page 2: Specifications

    - CD input allows you to play along to your favorite music - Dedicated FX Insert for external effects devices (stomp boxes, rack effects, etc.) - High-quality components and exceptionally rugged construction ensure long life - Conceived and designed by BEHRINGER Germany...

  • Page 3: Pcb Schematic

    ULTRABASS BXL1800A PCB Schematic Page 3...
  • Page 4 ULTRABASS BXL1800A PCB Schematic Page 4...
  • Page 5 ULTRABASS BXL1800A PCB Schematic Page 5...
  • Page 6 ULTRABASS BXL1800A PCB Schematic Page 6...

  • Page 7: Parts List

    ULTRABASS BXL1800A Parts List Hi Pcb Assemblies Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC A05-00000-05730 PCB ASSEMBLY;LPA1180;REV:J;HAND INSERT;NO:926020 1.0000 PC A05-36500-05738 PCB ASSEMBLY;LPA1180;BXL1800;REV:J;HAND INSERT;NO:926020 1.0000 PC Q05-36501-04147 A05-36501-04147 PCB ASSEMBLY;BXL1800;PCB:01;FRONT;REV:E;HAND INSERT;NO:902030 1.0000 PC A05-36502-04161 PCB ASSEMBLY;BXL1800;PCB:02;REAR;REV:E;HAND INSERT;NO:903030...
  • Page 8 ULTRABASS BXL1800A Parts List Capacitor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 2.0000 PC CAP E;4.7 mF;50 V;20 %;22X35;10 MM;SNAP-IN [LPA1180:00: {2.0}(C5,C8)] *NOT available in DP 2.0000 PC CAP E;220uF;4V;PITCH:2mm5;5mm x 11mm;VERTICAL 12.7-15-9mm [P0365:01: {2.0}(C9,C24)] *NOT available in DP 1.0000 PC...

  • Page 9: Circuit Protector

    ULTRABASS BXL1800A Parts List Circuit Protector Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC B22-02512-50001 FUSE;500mA;250V;SLOW BLOW;L-TYPE;5mm x 20mm (EU, UL, JP, UK, SAA, BR, AR, HM, SH) 1.0000 PC B22-02512-50001 FUSE;500mA;250V;SLOW BLOW;L-TYPE;5mm x 20mm 1.0000 PC R22-01513-31501 B22-01513-31501 FUSE;3A15;250V;SLOW BLOW;H-TYPE;5mm x 20mm...
  • Page 10 ULTRABASS BXL1800A Parts List Hardware Quantity Unit S.Sku M.Sku Description Reference Designators Notes 180.0000 PC NAIL;CROWN:2mm2;WIDTH:1mm27;THICKNESS:1mm0;LENGTH:25 *NOT available in DP mm;18-GAUGE (0.49*0.40) FINISH;GALVANIZED 4.0000 PC CABLE TIE;NYLON;4in;COLOR: *NOT available in DP 0.6000 G THERM-GREASE;COLOR:WHT;SPEC.NO:09286 *NOT available in DP 0.7000 G SCREWLOCK;SPEC.NO:01090...
  • Page 11 ULTRABASS BXL1800A Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 190.0000 MM SHRINKING TUBE;INNER DIA;2MM;SPEC NO:15747 *NOT available in DP 0.0300 M SHRINKING TUBE;INNER DIA;3mm;SPEC.NO:01097 *NOT available in DP 0.0200 M SHRINKING TUBE;INNER DIA;4mm;SPEC.NO:01098 *NOT available in DP 4.0000 PC...
  • Page 12 ULTRABASS BXL1800A Parts List Metal Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC A62-00000-86290 METAL;P0B29;STEEL 1.0mm;BLUE;FRAME;FR308S02D 1.0000 PC A62-00500-05891 METAL;AMP- CABINET;BXL1800A;DST.NO:005;DPT.NO:05891;(BXL1800A-P_AMP- CABINET-REVE.DWG) 1.0000 PC A62-09400-25947 METAL;BOTTOM;FS112B;CHAMPAGNE;DWG.NO:25947;(R14-GX- FOOTBOTTOM-REVC.DWG ) 1.0000 PC A63-00300-05130 METAL;HEATSINK;P0366;ALU;EXTRUSION;DST.NO:003;DPT.NO:0513; (BXL1800A-HEAT_SINK-REVC.DWG) 1.0000 PC A65-00000-50016 METAL;P0366;SECC 1.2mm;GRILL;STAMPING;POWDER COATING;BLACK;SPEAKER GRILL;REV:B...
  • Page 13 ULTRABASS BXL1800A Parts List Plastic Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 8.0000 PC W51-00300-06264 G51-00300-06264 RUBBER FOOT;ROUND;BIG;DWG.NO:06264;(R14- RUBFOOT_WASHER-REVA.DWG) 7.0000 PC W52-00200-00106 G52-00200-00106 KNOB;POT;BXL450A;W/ INK MARKING;DST.NO:002;DPT.NO:00106;(BXL450A-POTKNOB- REVB.DWG) 7.0000 PC W52-00200-08623 G52-00200-08623 KNOB;FADER;FAD30MMKNOB 1;BLACK;DST.NO:002;DPT.NO:08623;(FADERKNOBBLK1-REVB.DWG) 4.0000 PC W52-00400-05276 G52-00400-05276 KNOB;SWITCH 1;MINI-SERIES;DST.NO:004;DPT.NO:05276;(I00040P- SWITCH_BUTTON1-REVD.DWG)

  • Page 14: Plug Socket

    ULTRABASS BXL1800A Parts List Plug Socket Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC G61-65210-03289 BOX HEADER;POLES:10;2 ROW;STRAIGHT;PITCH:2mm54;SCM-10S [BXL1800:01: {1.0}(X10)] 1.0000 PC G61-75210-05768 CABLE HEADER;POLES:10;2 ROW;IDE;STRAIGHT;PITCH:2mm54;FC- 1.0000 PC G61-85210-08163 TRANSITION PLUG;FLAT CABLE;POLES:10;ROWS:2;STRAIGHT;PITCH:2mm54;BLACK;FD-10P 6.0000 PC W64-01211-03174 G64-01211-03174 PLUG;JACK STEREO 6mm3;STRAIGHT SOLDER;W/O [BXL1800:01: {2.0}(X8-X9)]...
  • Page 15 ULTRABASS BXL1800A Parts List Resistor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC RESISTOR;METAL;221Kohm;1%;0W1;SMD603 [BXL1800:01: {1.0}(R15)] *NOT available in DP 3.0000 PC RESISTOR;CARBON;100ohm;5%;0W063;SMD603 [BXL1800:02: {3.0}(R7-R8,R11)] *NOT available in DP 1.0000 PC RESISTOR;CARBON;200ohm;5%;0W063;SMD603 [BXL1800:01: {1.0}(R101)] *NOT available in DP 1.0000 PC...
  • Page 16 ULTRABASS BXL1800A Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC RESISTOR;CARBON;1Kohm2;5%;0W1;SMD805 [BXL1800:01: {1.0}(R76)] *NOT available in DP 1.0000 PC RESISTOR;CARBON;3Kohm3;5%;0W1;SMD805 [LPA1180:00: {1.0}(R27)] *NOT available in DP 2.0000 PC RESISTOR;CARBON;4Kohm7;5%;0W1;SMD805 [LPA1180:00: {2.0}(R24,R28)] *NOT available in DP 1.0000 PC RESISTOR;CARBON;10Kohm;5%;0W1;SMD805...

  • Page 17: Speaker Part

    ULTRABASS BXL1800A Parts List Speaker Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC H77-00000-85773 WOOFER;4 OHM;P0B2F;TS-12BA1000A4;12 inch;250 watts 1.0000 PC H79-00001-08969 CONE;BLUE;LS-CO250A72_5B 1.0000 PC H79-00001-16133 SURROUND;BLACK;LS-SR298CL2C 1.0000 PC X79-00100-03724 H79-00100-03724 MAGNET;MG140FE42A;140x60x20H;Y30;DST.NO:001;DPT.NO:03724; (LS-MG140FE42A-REVA.DWG) 1.0000 PC H79-00100-07537 VOICE COIL;VC49_5K3_6C;MATERIAL:KAPTON;SV;DIAMETER:49mm5;40H;D C RESISTANCE:3ohm6;WIRE...
  • Page 18 ULTRABASS BXL1800A Parts List Cover Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.3150 M2 J11-80020-39927 CARPET;FELTED;QUALITY:W151;WIDTH:2000mm;COLOR:AGLEAM BLACK Page 18...
  • Page 19 ULTRABASS BXL1800A Exploded Drawing Page 19...
  • Page 20 ULTRABASS BXL1800A Exploded Drawing Page 20...
  • Page 21 ULTRABASS BXL1800A Exploded Drawing Page 21...
  • Page 22 ULTRABASS BXL1800A Exploded Drawing Page 22...
  • Page 23 ULTRABASS BXL1800A Exploded Drawing Page 23...
  • Page 24 ULTRABASS BXL1800A Exploded Drawing Page 24...
  • Page 25 ULTRABASS BXL1800A Exploded Drawing Page 25...
  • Page 26 ULTRABASS BXL1800A Exploded Drawing Page 26...
