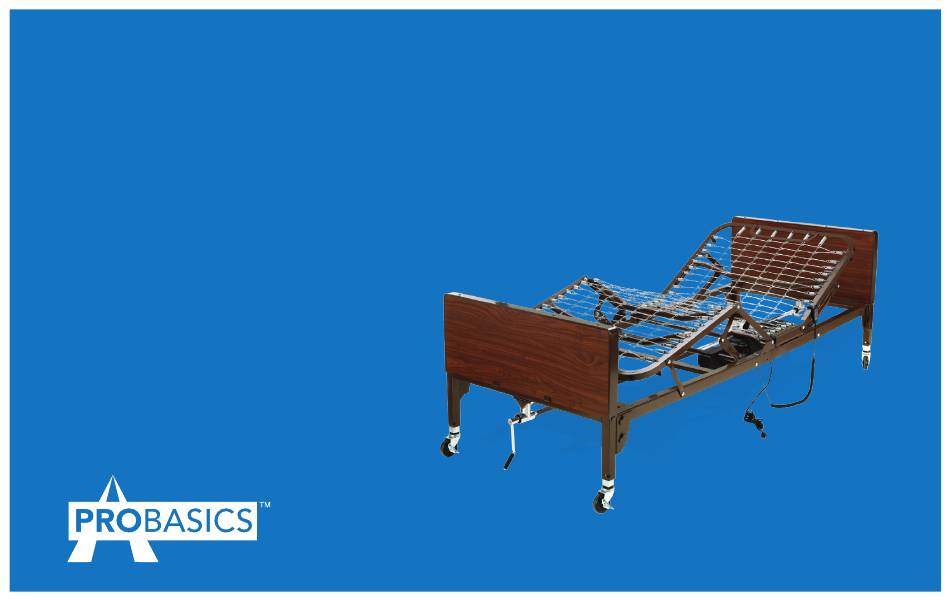

- Page 1 Full-Electric Bed User Manual & Entrapment Guide For use with Item #’s HBFEBED HBFEBE HBFESS This manual should be read in its entirety by bed users, care givers and maintenance personnel prior to assembly or use.
-
Page 2: Table Of Contents
TABLE OF CONTENTS User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 — 16 Warnings . -
Page 3: User Manual
WARNINGS PLEASE READ ALL WARNINGS/CAUTIONS BEFORE USE DO NOT DO NOT • use this bed for patient transport . move the bed while occupied, otherwise injury or damage may result. DO NOT • use in oxygen-enriched environments or near flammable •... - Page 4 • The initial set up of this bed must be performed by a qualified technician. assembled, as this may cause damage to the bed components . • The total weight limit of the ProBasics full-electric bed (including ALWAYS accessories, mattress, occupant and any other person/object positioned •...
-
Page 5: Special Notes
WARNINGS SPECIAL NOTES NOTICE: technicians are permitted to repair these parts. If unqualified individuals perform any work on these beds, the warranty is void. • The information contained in this document is subject to change • After use, some permanent deformation of the bed under load may without notice. -
Page 6: Bed Components
Confirm that all parts are present. Foot Spring Head Spring Head Board Foot Board Hi/Low Shaft Locking Pins (4) Motor Hand Crank* (attached to foot board for shipping) Casters (4) - 2 locking, 2 non-locking Spring Clips (2) Hand Pendant Full Electric Motor *Hand crank only raises/lowers the bed height during a power outage. - Page 7 FRAME ASSEMBLY INSTRUCTIONS NOTE: Spring fabric not shown for clarity • Lay the head and foot section on their sides approximately 90º to each other (See Figure 1). • Slide the sections together until the hook on the head section catches the rivet on the foot section .
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS CONT . Figure 4 Spring-loaded coupler • Install Hi/Low drive shaft to the Hi/Low motor located on the foot section . • Insert the spring-loaded side of the drive shaft into the lower receptacle as shown. - Page 9 ASSEMBLY INSTRUCTIONS CONT . Figure 5 • With bed on side extend the drive shaft until it reaches the full length of bed . The drive shaft adjustment holes are marked for either semi or full beds . Choose the full bed hole .
- Page 10 ASSEMBLY INSTRUCTIONS CONT . Figure 6 Figure 7 • Install the casters by inserting the caster stem into the leg • Install the head end of the drive shaft as shown. receptacle . ALWAYS install 1 locking and 1 non-locking caster ALWAYS on each bed end .
- Page 11 ASSEMBLY INSTRUCTIONS CONT . Figure 8 Figure 9 • Release the spring-loaded coupler on the hi/low motor and insert • Ensure the slot on the spring-loaded coupler fully engages on the the drive shaft into the gear box located on the footboard . roll pin on the foot board gearbox .
- Page 12 MOTOR INSTALLATION Figure 10 Figure 11 • For easier set-up, prior to installing the motor, plug both the • Connect two 9V batteries (not included) to the battery clip hand pendant and Hi/Low motor cables into motor as shown. located on the motor . The battery clip is located in a recess under the motor cover .
- Page 13 Figure 13 Figure 12 Actuator Rod • To install motor, remove both locking caps on top of the motor . • Align the motor with the actuator rod and raise the head spring to the highest position. The motor will be pull towards the bed and lock on the actuator rod .
-
Page 14: Hand Pendant Operation
BED OPERATION Battery Operation The full electric bed can be lowered in an emergency when equipped with two 9V batteries (not included). Battery-powered operation can only be used once and only be used to lower the head and foot sections of the bed. Replace the 9V batteries annually or after battery Raises head section Lowers head section operation has been used to lower the bed. -
Page 15: Head/Footboard Optional Height Adjustment
HEAD/FOOT BOARD MAINTENANCE AND SAFETY CHECKS OPTIONAL HEIGHT ADJUSTMENT To be performed once per year or between placements by a qualified technician . 87 .5” Electronics Check all controls to make sure all functions work properly. • Power cord • Pendant cord 21 .5”... -
Page 16: Bed Schematic
PROBASICS FULL ELECTRIC BED Headboard Footboard Head spring Foot spring Headboard panel frame Footboard panel frame a . Headboard gear assembly b . Footboard dear assembly Sleep surface hook Motor brackets (a, b, c) Hi/Low motor gearbox a . Motor shaft b. -
Page 17: Specifications
Minimum – 15 .5” periodic replacement . (with no mattress) Maximum – 21 .5” • If you have questions about your ProBasics device or this warranty, Bed Frame Weight 169 lbs . please contact an authorized ProBasics dealer or Compass (assembled) Health Brands . - Page 18 Manufactured for 6753 Engle Road Middleburg Heights, Ohio 44130 Tel.: (800) 376-7263 www.compasshealthbrands.com 42-HBFEBED_HBFEBE_HBFESS_05 ©2023 Made in China...
