AES Stealth 7211-460-470 Manual

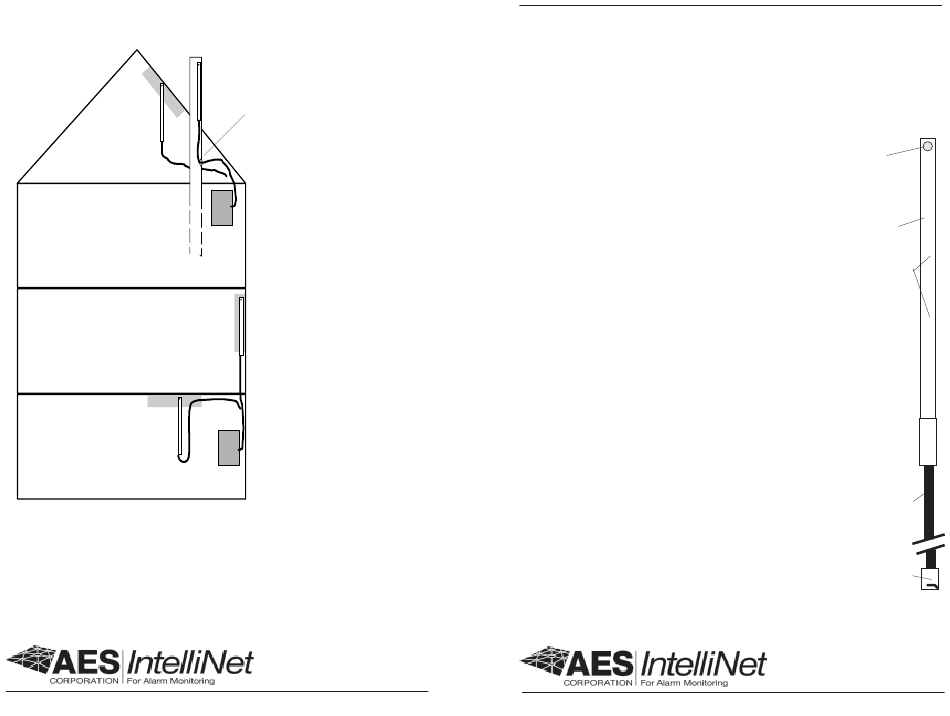

MOUNTING IDEAS

Stealth Antenna
hung from roof rafter
(for non-metal roof)
Subscriber Unit in
climate controlled area
Stealth Antenna hidden in
wall on first floor
Subscriber Unit in
basement with rafter
mounted antenna
Re-Order part # 7211-460-470
Call 800-AES-NETS, (800-237-6387).

ABOVE-ROOF MOUNTING

IN VENT PIPE - Great for
metal roofs
•Make a 5/8" hole in pipe.
Push the antenna up the
pipe, pull to top of pipe
and fasten securely.
Seal access hole to
prevent vapors from
entering house.
•Clip or glue Stealth
Antenna in place
•Entire white area must
be above roof line
•Plastic vent pipe - this
pipe may be extended
for additional height
•Check with plumbing
code if you are unsure
how to pierce a vent pipe
AES Corporation
285 Newbury Street
Peabody, MA 01960 USA
www.aes-intellinet.com
S T E A L T H Antenna
AES Model # 7211-460-470
FREQUENCY: 460 - 470 MHz
Ideal for:
• Low Visibility Installations
• Roof Rafters
• Closet Walls
• Dropped Ceilings
• Inside Plastic Vent Pipe
• Basement Joists
• Build Into Wall of New or Remodeled Construction
• Drop Into Wall For "No Antenna" Installations
• Portable or Temporary Systems
• Surface Mounts Almost Anywhere
...or anywhere you need an
Easy-to-Install High Performance Antenna!

Specifications:

Antenna Length Approx. 18 Inches
Coax Lead 10 Feet
Connector BNC Male
Gain Approx. ~ 3 db
Polarization Vertical
Max Power 50 Watts Intermittent Duty
SWR Less Than 1.8
40-7211-460-470.p; 2/6/08
Hole for
Hanging
Protective
Cover
Antenna
Surface
Low Loss
Coax Cable
Male BNC
Connector
