Summary of Contents for DMP Electronics V-6022WC

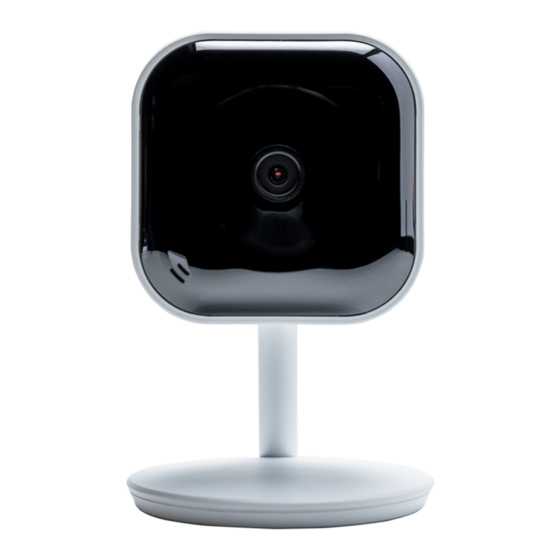

- Page 1 INSTALLATION AND SETUP GUIDE V-6022WC Wireless Cube Camera...
- Page 2 GET STARTED The V-6022WC is a 2 Megapixel indoor video camera that allows users to view live and recorded HD video clips in Virtual Keypad™. To activate the camera, you need an active Dealer Admin account at dealer.securecomwireless.com. Compatibility Any active Virtual Keypad account with Cameras & NVRs enabled ▶...
- Page 3 Ethernet connector. For compatible power supplies, refer to “Accessories”. Note: The V-6022WC does not support POE. Ethernet Reset 5 VDC Power Figure 1: Camera Power Details V-6022WC Installation and Programming Guide | Digital Monitoring Products...
- Page 4 Flashing blue (around once every second) Wi-Fi connection successful Steady blue Wi-Fi connection failed Flashing red (around once every second) Press and hold the reset button Flashing red (around once every second) V-6022WC Installation and Programming Guide | Digital Monitoring Products...
- Page 5 MOUNT THE CAMERA The V-6022WC is suitable for stand, wall, and ceiling mounting applications. Refer to Figure 3 during mounting and camera adjustment. Wall or Ceiling Mount Ceiling mounting will be covered as an example in this section. However, the same steps may be referenced for wall mounting.
- Page 6 Dealer Admin will populate a 4-point rectangle in camera view screen. Click and drag an endpoint to change the size of the region. admin@gmail.com Figure 5: Configure a Motion Detection Region in Dealer Admin V-6022WC Installation and Programming Guide | Digital Monitoring Products...
- Page 7 V-6022WC 2 MP Wireless Cube Camera Accessories V-SD32G 32 GB Replacement SD Card V-SD64G 64 GB Replacement SD Card CERTIFICATIONS FCC Part 15 Registration ID: CCK-V6022WC ▶ Industry Canada: 5251A-V6022WC ▶ V-6022WC Installation and Programming Guide | Digital Monitoring Products...
- Page 8 SPECIFICATIONS Sensor and Lens Image Sensor 2 MP, 1/2.9” CMOS Wi-Fi Wireless Standards IEEE 802.11b/g/n Frequency Range 2.4 GHz ~ 2.4835 GHz Frequency Bandwidth 20 MHz Hardware Power Consumption 5 VDC Max 4.0 W Weight 0.31 lbs (0.14 kg) Dimensions 3.0”...
