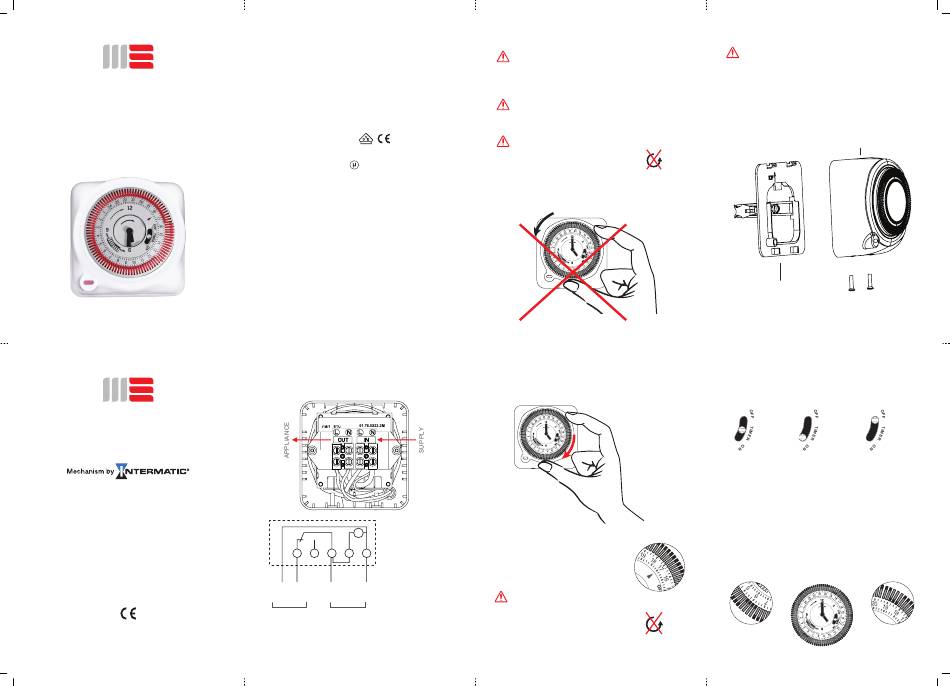

Wise Round - S1 Quick Start Manual

Wise Electric

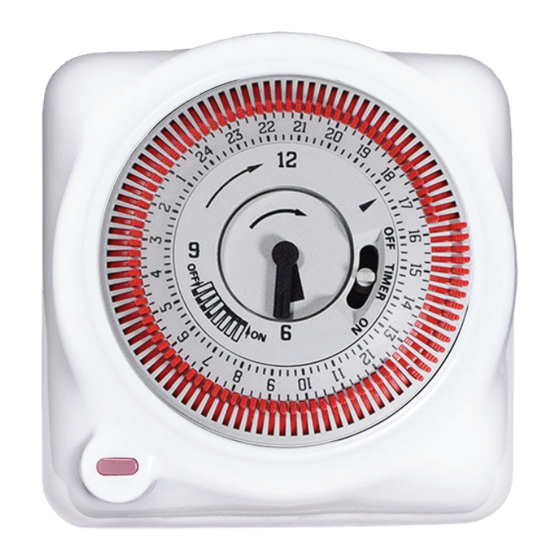

Round - S1
24 hour timer
www.wise-electric.co.il
Wise Electric
WISE ELECTRIC ISRAEL LTD
Address: 30 Shaham,
Petach-Tikva,
ISRAEL
www.wise-electric.co.il

1. DESCRIPTION

S1 is a reliable 24-hour timer for flush mount
installation in the Round box. The timer enables you to
schedule very accurate ON/OFF events for connected
devices & appliances.

2. SPECIFICATIONS

• Mechanism Approvals:
• Supply voltage: 220–240V 50Hz
AC
• Max Load: 16A (8A)
• Operating temperature: 0°C to 45°C
• Product dimensions: - Length 8.7 cm
- Width 8.7 cm
- Height 3.7 cm
• Installation data: Suitable for Round box
• Installation cables (cross section): 0.5mm² -2.5mm²
• Operating Data: - OFF
- TIMER
- ON
• Minimum ON/OFF event: 15 minute
• 96 operations per day
4.3 Connect wiring in accordance with wiring diagram.
Do not combine solid and flexible conductors at the
same terminal. When connecting flexible conductors
conductors, use terminal ends.
The diagram
M ~
shows wiring for
a mains-operated
5 4 3 2 1
load.
N L L N
Appliance
Supply
OUT IN
4.4 Fix backplate to socket box.
4.5 Fit cover over module and reassemble to backplate.
4.6 Re-fit and tighten two screws (A).

3. PRODUCT SAFETY INFORMATION

Warning
Prior to use, please examine and verify that the
product is not defective. Please do not use or operate
if there is a defect of any kind.
Warning
Installation of an electrical wiring device should be
done by a professional person only.
Warning
Do not turn the dial counter-clockwise!
Doing so will damage the mechanism
and this is not covered by the Warranty
Terms.

5. TIME SETTING

To set the current time, turn the dial clockwise until
the arrows indicate the current time.
Note:
The timer is marked in 24-hour format;
therefore, you must choose the exact
hour of the day. For example: to set the
current time to five p.m., the arrow
should be directed to 17 and not to 5.
Warning
Do not turn the dial counter-clockwise.
Doing so will damage the Mechanism and
this is not covered by the Warranty Terms

4. INSTALLATION

Warning
Installation of an electrical wiring device should be
done by a professional person only.
4.1 Switch off supply to socket box.
4.2 Unscrew two screws (A) - please see Assembly
diagram - secure timeswitch to backplate, remove
cover, and gently pull module from backplate.
Fig. A module
backplate
screws (A)

6. SELECT OPERATING MODES

3-position handle for selecting operating mode
TIMER ON
OFF

7. SCHEDULE ON/OFF EVENTS

Set the 3-position handle to be in Timer Mode, then move
the tappets outward to be in the OFF position. To schedule
ON/OFF events, move the tappets inward to be in the ON
position only at the desired operating times. Each tappet
represents a 15-minute operating time. For example: to
operate the timer between 5:45 and 6:30 in the morning,
and between 18:15 and 19:00 in the evening, the tappets
should be moved inward. (at the appropriate times as
shown in the illustration).
Operating time Operating time
18:15 - 19:00
5:45 - 6:30
