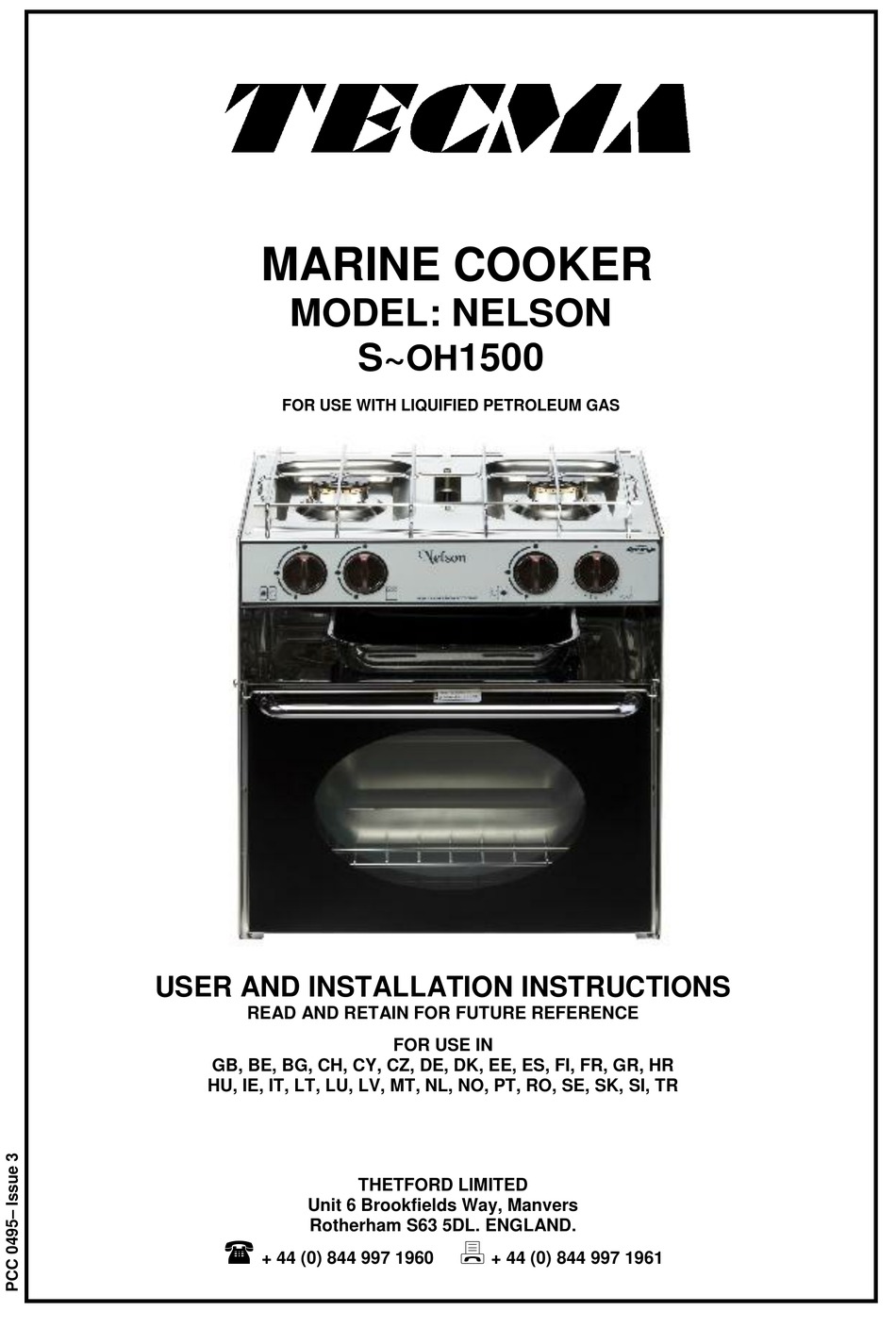

MARINE COOKER
MODEL: NELSON
FOR USE WITH LIQUIFIED PETROLEUM GAS
USER AND INSTALLATION INSTRUCTIONS
READ AND RETAIN FOR FUTURE REFERENCE
GB, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GR, HR
HU, IE, IT, LT, LU, LV, MT, NL, NO, PT, RO, SE, SK, SI, TR
Unit 6 Brookfields Way, Manvers
Rotherham S63 5DL. ENGLAND.
+ 44 (0) 844 997 1960
S~
1500
OH
FOR USE IN
THETFORD LIMITED
+ 44 (0) 844 997 1961
Advertisement
Summary of Contents for Tecma NELSON S-OH1500
- Page 1 MARINE COOKER MODEL: NELSON 1500 FOR USE WITH LIQUIFIED PETROLEUM GAS USER AND INSTALLATION INSTRUCTIONS READ AND RETAIN FOR FUTURE REFERENCE FOR USE IN GB, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GR, HR HU, IE, IT, LT, LU, LV, MT, NL, NO, PT, RO, SE, SK, SI, TR THETFORD LIMITED Unit 6 Brookfields Way, Manvers Rotherham S63 5DL.
- Page 2 Gas Category CAT I + (28-30/37) CAT I B/P (30) BUTANE (G30) 28-30 mbar BUTANE (G30) 30 mbar PROPANE (G31) 37 mbar PROPANE (G31) 30 mbar...
- Page 3 Fig. 1 When installing appliance using gimbal mountings, a hose assembly MUST be used for connection to gas supply. The hose assembly must comply with local, national and European regulations in force. Fig. 2 Gimbal Locking Lever Gimbal Pivot Support Gimbal Pivot Plate Gimballing Arc ¼”...
- Page 4 Fig. 3 Fixed Installation To prevent appliance tilting when installing in fixed position the appliance MUST be fully supported by support shelf (K) prior to locking Gimbal Lever (A) against Gimbal Pivot Support (B). Gimbal Locking Lever Gimbal Pivot Support Fig.
- Page 5 Fig. 5 Fig. 6 Fig. 7 Fig. 8 HIGH RATE LOW RATE...
- Page 6 INTRODUCTION This appliance is designed for cooking foods, any other use is incorrect and dangerous. Failure to install the appliance correctly or improper use, will invalidate any warranty or liability claims. This appliance must be installed in accordance with the local, national and European regulations in force.
-
Page 7: Operation
OPERATION The burners on the appliance have fixed aeration and no adjustment is required. The burners should flame as follows:- Propane - The flames should burn quietly with a blue/green colour with no sign of yellow tips. Butane - Normally on initial lighting, a small amount of yellow tipping will occur and then slightly increases as the burner heats up. - Page 8 OPERATION On first use of the grill, it should be heated for about 20 minutes to eliminate any residual factory lubricants that might impart unpleasant smells to the food being cooked. A non- toxic smoke may occur when using for the first time, open any windows and turn on mechanical ventilators to help remove the smoke.
- Page 9 OPERATION Before using your oven for the first time we recommend the following procedure:- Clean all surfaces with hot soapy water. Light the oven and set control knob to Gas Mark 5 (200°C). Heat the oven for about 30 minutes to eliminate any residual factory lubricants that might impart unpleasant smells to cooked food.
-
Page 10: Maintenance
OPERATION Do's and Don'ts Read the user instructions carefully before first use of appliance. Allow the burners to heat before using for the first time, in order to expel any smells before the introduction of food. Clean the appliance regularly. Remove spills as soon as they occur. - Page 11 INSTALLATION Location of Appliance This appliance maybe installed in a kitchen/kitchen diner but NOT in a room containing a bath or a shower. LP gas appliances must not be fitted below ground level. e.g. in a basement Position This cooker is designed for use in a marine environment and can be used as either a free- standing appliance or can be mounted on built in gimbals.
- Page 12 INSTALLATION Gas Connection Refer to the diagrams for its location. The appliance can be installed either fixed or ‘gimballed’ it is important to adhere to the instructions for the type of installation chosen. Gimballed installation:- A flexible hose must be used for connection to the gas supply and adhere to the following requirements.
- Page 13 SERVICING All servicing must be carried out by an approved competent person. Before any service work is started the appliance should have been left to cool and be disconnected from both the gas and electrical supplies. After each service the appliance must be checked for gas soundness.
- Page 14 SERVICING 8. Oven burner injector Open the oven door and unscrew the burner retaining screw, slide the burner to the left and lift out. The injector is exposed to the right hand side of the cut out. Unscrew the injector. 9.
