Kvaser Air Bridge Light HS User's Guide
Copyright 2023 Kvaser AB, Mölndal, Sweden
https://www.kvaser.com
th
Printed Friday 5
May, 2023
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kvaser Air Bridge Light HS
Summary of Contents for Kvaser Air Bridge Light HS
- Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
- Page 2 Kvaser Air Bridge Light HS User’s Guide 2 (24) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
2 Introduction 2.1 Welcome to Kvaser Air Bridge Light HS ....2.2 Major Features ...... -
Page 4: About This Manual
Kvaser Air Bridge System Integration Guide The Kvaser Air Bridge Installation Guide provides installation advice for end-users who use Kvaser Air Bridge Light HS and want to optimize radio performance and reach. The Kvaser Air Bridge System Integration Guide provides design-in advice for... -
Page 5: Introduction

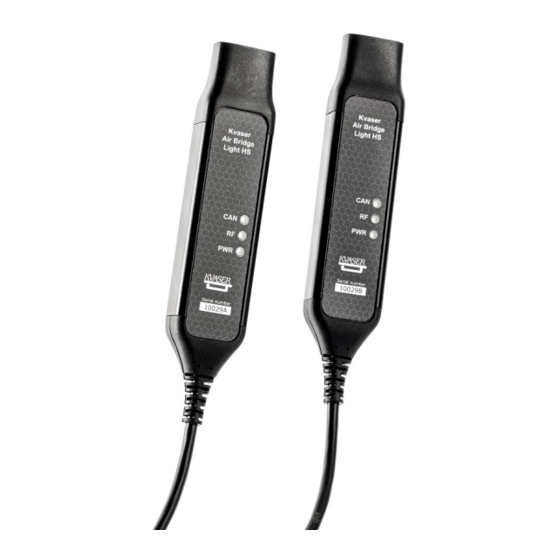

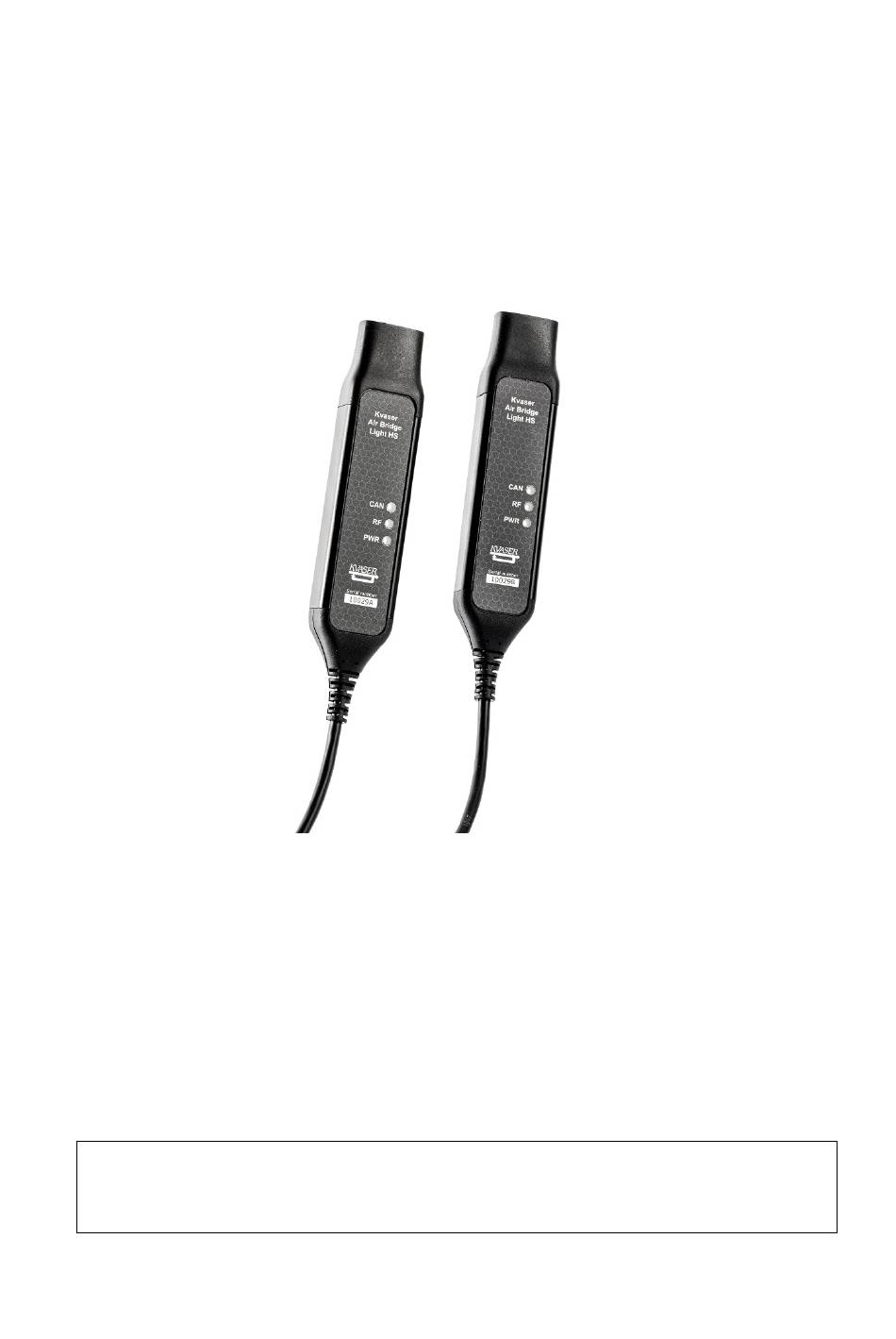

2.1 Welcome to Kvaser Air Bridge Light HS Figure 1: Kvaser Air Bridge Light HS Kvaser Air Bridge Light HS is a small, yet advanced, wireless CAN bridge that can be used as a CAN system gateway between two CAN networks. The Kvaser Air Bridge Light HS consists of a preconfigured pair of plug and play units. -
Page 6: Major Features
Kvaser Air Bridge Light HS User’s Guide 6 (24) 2.2 Major Features Supports both CAN 2.0A and CAN 2.0B active, 11-bit and 29-bit identifiers. High-Speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s. Compatible with J1939, CANopen, NMEA 2000 and DeviceNet. -
Page 7: Kvaser Air Bridge Light Hs Hardware
CAN messages back and forth until the units are powered down. The Kvaser Air Bridge Light HS will only forward CAN messages between the two attached CAN networks. Error frames and arbitration information will not be forwarded since this information is only applicable for the local physical network. -
Page 8: Power Supply
Kvaser Air Bridge Light HS, you must supply 9-36 VDC power through the CAN connector. 3.4 LED Indicators The functions of the LED indicators on the Kvaser Air Bridge Light HS are shown in Table 2. Figure 4: LEDs on the Kvaser Air Bridge Light HS. -
Page 9: Autobaud Detection
250 Kbit/s 125 Kbit/s. The Autobaud Detection is done locally, so a Kvaser Air Bridge Light HS can be used to bridge two different CAN networks operating at different bit rates. However, the amount of traffic on the networks will determine whether the system designer should allow the networks to be bridged via the Kvaser Air Bridge Light HS. -
Page 10: Appendices
In this section you will find technical information about the Kvaser Air Bridge Light 4.1 Technical data In Table 3 below you will find the Kvaser Air Bridge Light HS’s technical specifications. The physical dimensions are given in Figure 5 on Page 11. -
Page 11: Can Connectors
Power supply to the device Table 4: Configuration of the 9-pin D-SUB Kvaser Air Bridge Light HS devices that use the 5-pole male M12 connector have the pinning described in Table 5 on Page 12. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 12: Can Bus Termination
Every CAN bus must be terminated with a 120 Ohm resistor at each end of the bus. The Kvaser Air Bridge Light HS does not contain any CAN bus termination, because their inclusion could cause severe disturbance in a system which is already correctly terminated. -
Page 13: Safety Instructions
13 (24) 5 Safety Instructions 5.1 Intended Use The Kvaser Air Bridge Light HS is intended for connection of two CAN bus segments in a fixed installation. 5.2 Usage Warning CAUTION: THE SURFACE OF THIS DEVICE MAY BECOME HOT IF IT IS EXPOSED TO FOR EXAMPLE RADIATION FROM THE SUN. - Page 14 KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE.
-
Page 15: Disposal And Recycling Information
Kvaser Air Bridge Light HS User’s Guide 15 (24) 6 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: https://www.kvaser.com/en/kvaser/recycling-policy.html... - Page 16 Kvaser Air Bridge Light HS User’s Guide 16 (24) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 17: Legal Acknowledgements
Kvaser Air Bridge Light HS User’s Guide 17 (24) 7 Legal acknowledgements 7.1 EU Regulatory Compliance EU Declaration of Conformity (DoC) Kvaser AB M¨ o lndal Company Name: City: +46 31 886344 Aminogatan 25 Postal address: Telephone number: 431 53 sales@kvaser.com... - Page 18 Kvaser Air Bridge Light HS User’s Guide 18 (24) EU Declaration of Conformity (DoC) Kvaser AB M¨ o lndal Company Name: City: +46 31 886344 Aminogatan 25 Postal address: Telephone number: 431 53 sales@kvaser.com Postcode: E-mail address: declare that the DoC is issued under our sole responsibility and belongs to the following product:...
-
Page 19: Fcc Regulatory Compliance
Kvaser Air Bridge Light HS User’s Guide 19 (24) 7.2 FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Air Bridge Light HS Type: 73-30130-00808-3 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules. - Page 20 Kvaser Air Bridge Light HS User’s Guide 20 (24) Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Air Bridge Light HS M12 Type: 73-30130-01141-0 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules.
- Page 21 Kvaser Air Bridge Light HS User’s Guide 21 (24) Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Air Bridge Light HS (FCC) Type: 73-30130-01008-6 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules.
- Page 22 Kvaser Air Bridge Light HS User’s Guide 22 (24) Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Air Bridge Light HS M12 (FCC) Type: 73-30130-01148-9 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules.
-
Page 23: Patents, Copyrights And Trademarks
NMEA 2000 is the registered trademark of the National Marine Electronics Association, Inc. For information about Kvaser related CAN patents, see www.kvaser.com/patent. The products described in this document are protected by U.S. patent 5,696,911. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 24: Document Revision History
Kvaser Air Bridge Light HS User’s Guide 24 (24) 8 Document Revision History Version history for document UG_98208_air_bridge_light_hs: Revision Date Changes 2018-09-04 Initial version 2018-11-22 Corrected IP Rating and operating temperature, updated EU Regulatory Compliance. 2018-12-06 Clarified CAN Bit Rate.
