Summary of Contents for Clou match me CL/07.56.003.65
Page 1

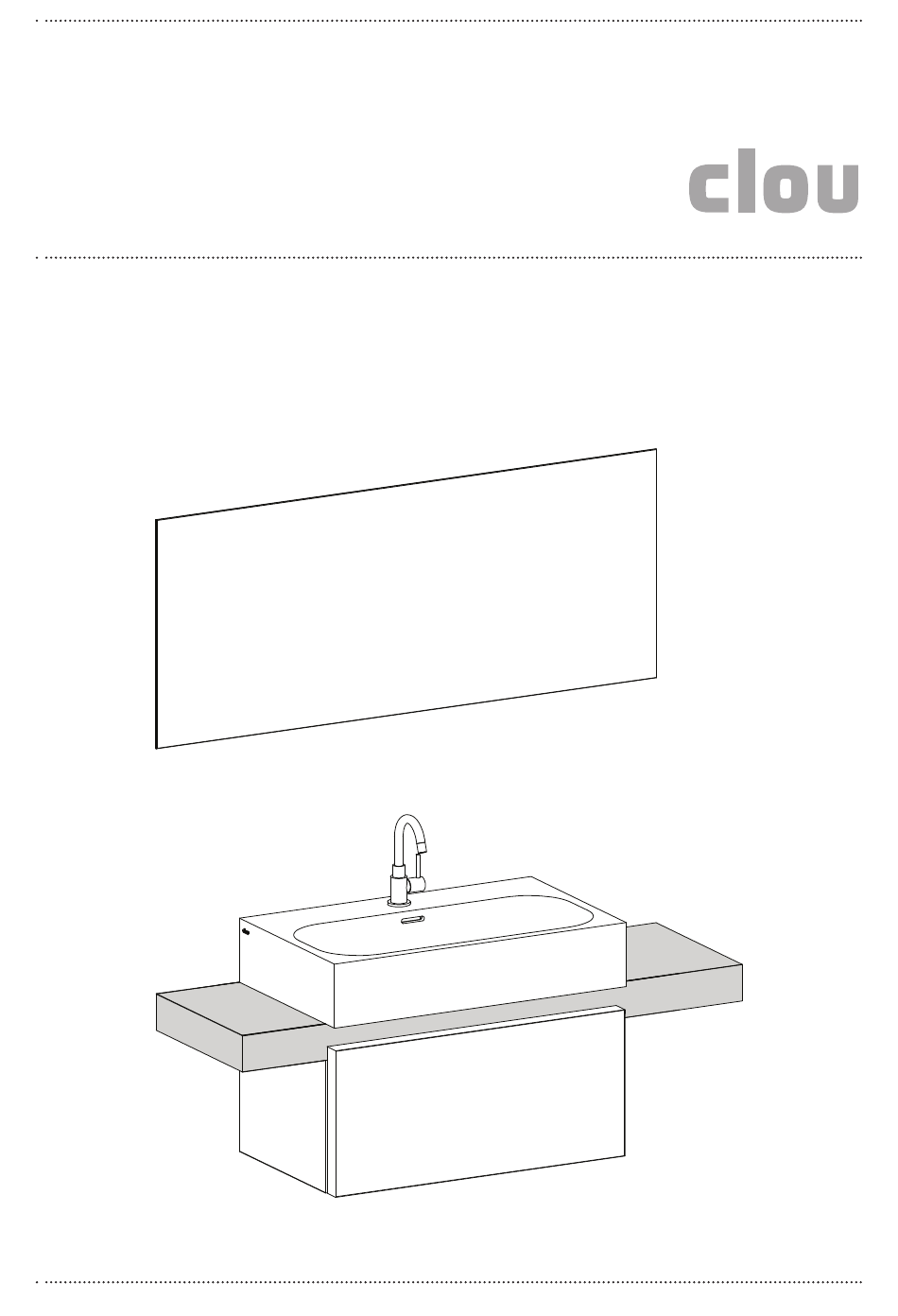

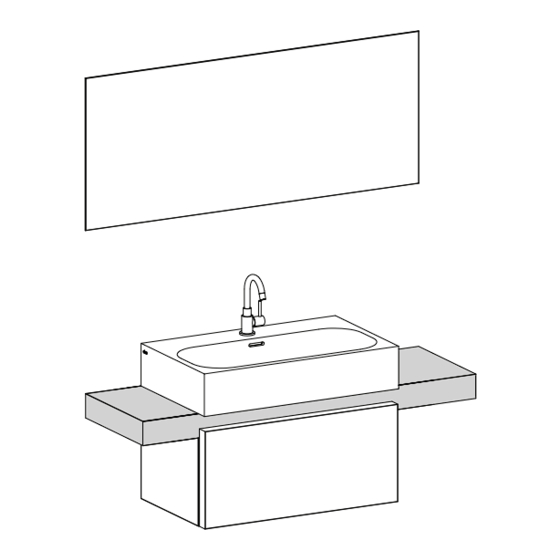

120 cm b a t h f i n d i n g s CL/07.56.003.65, CL/07.56.003.66 Montage instructies Installation Instructions Notice de montage Montageanweisungen Dimensions in mm, for reference only / 08.04.2016 / rev_02 www.clou.nl...
Page 2
All mentioned dimensions in this manual should be verified before executing the action. - Clou b.v. can not be held responsible for the results of improper use, improper trans- portation or any damage caused during interim storage. - The current terms of guarantee are always valid.
Page 3
Pour d’autres finitions ou murs plus faibles, prévoir d’autres fixations et éventuellement consolider le mur si nécessaire. - Clou se réserve le droit pour tout changement technique ou optique par rapport à la photo représentant le produit. - Des changements de production peuvent faire en sorte que les dimensions affi- chées ne correspondent plus, nous vous prions de vérifier avant de procéder à...
Page 4
Gegenstände die Oberfläche der Produkten beschädigen. Gebruiksvoorschriften: zie ook de onderhoudsvoorschriften op www.clou.nl max. User’s instructions: See also the maintenance guides at www.clou.nl 15 kg Instructions d’utilisation: Voyer aussi les instructions d’entretien sur www.clou.nl Gebrauchsanweisungen: Wartungsanweisungen finden Sie auf unsere Homepage...
Page 8
Duidt met potlood en waterpas de middellijn van de wastafel aan. Duidt de gewenste positie ook aan op de planchet. Mark with pencil and level the centreline of the washbasin. Also indicate the desired posi- tion on the shelf. X mm Marquez avec un crayon et avec un niveau la ligne de centre du lavabo.
Page 9
Maak de uitsnede met behulp van een decoupeerzaag. Make the cut-out with a jig- saw. Faites la découpe avec une scie sauteuse. Machen Sie den Ausschnitt mit einer Stichsäge. Duidt met potlood en waterpas de gewenste hoogte Y van de wastafel aan.
Page 10
Selecteer uit de hier getoonde opstellingen degene die het best aansluit bij uw opstelling. Y-line Duidt met potlood en waterpas de posities van de beugels aan. Select from the configurations shown here, the one that best X-line suits your setup. Indicate with pencil and level the positions of the supports.
Page 11
Y-line Duidt met potlood voor elke beugel de plaatsen aan waar u gaten moet boren. Het is aan- geraden de gegeven afmetin- gen na te meten. Mark with pencil for every sup- port the spots to drill holes. It is recommended to verify the given dimensions.
Page 12
Boor de gaten voor de beugels (ø 10 mm). Drill the holes for the supports (ø 10 mm). Percez les trous pour les sup- ports (ø 10 mm). Bohren Sie die Löcher für die Unterstutzungen (ø 10 mm). ø 10 mm Boor ook de gaten voor de wastafel, ladekast, spiegel en kolomkast.
Page 13
Steek de pluggen in de gaten en bevestig de beugels met de schroeven. Insert the dowels in the holes and mount the supports with the screws. Enfoncez les chevilles dans les trous et fixez les supports avec les vis. Bringen Sie die Dübel in die Löchern und befestigen Sie die Unterstutzungen mit den Schrauben.
Page 14
Maak desgewenst kraangaten in de wastafel open volgens de bijgevoegde handleiding. If desired open tap holes in the washbasin according to its installation instructions. Si nécessaire, percez les trous de robinets en fonction des instructions d’installation. Auf Wunsch offen Hahnlöcher in das Waschtisch nach ihrer Montageanweisungen.
Page 15
Plaats de wastafel op de stok- schroeven en bevestig met de kraagringen en moeren. Place the washbasin on the dowel screws and fix with the collar washers and nuts. Placez le lavabo sur les goujons et fixez avec les rondelles à collerette et les écrous.
Page 16
Haal de lade uit de ladekast door ze naar voor en omhoog te trekken. Remove the drawer by pulling it forward and upward. Enlevez le tiroir de la commode en le tirant et en le relevant. Nehmen Sie die Schublade aus der Kommode, indem Sie diese heraus und dann nach oben ziehen.
Page 17
Stel de positie van de ladekast bij. Met bout A regelt men de hoogte van de ladekast, met bout B de afstand tot de muur. Adjust the position of the dresser. With bolt A you regu- late the heigth of the dresser, with bolt B you adjust the distance to the wall.
Page 18
Bevestig de sifon (niet inbegre- pen) aan de afvoer en aan de afvoerleiding. Attach the trap (not included) to the drain and to the waste pipe. Fixez le siphon (non inclus) à la bonde et à la décharge d’eau. Befestigen Sie den Siphon (nicht im Lieferumfang ent- halten) am Ablauf und an der Abflussleitung.
Page 19
Plaats de lade terug in de ladekast. Place the drawer back in the dresser. Remettez le tiroir dans la com- mode. Setzen Sie die Schublade wie- der in der Kommode ein. Ontvet de achterzijde van de spiegel met een speciaal ont- vettingsmiddel, zoals reini- gingsalcool.
Page 20
Verwijder de beschermfolie van de tape op de bevesti- gingsframes en druk de frames stevig op de spiegel op de aangeduide plekken. Remove the protective foil from the tape on the mounting- frames and press the frames firmly on the indicated places on the mirror.
Page 21
Hang de spiegel met de frames op aan de ophanghaken. Place the mirror with the frames on the mounting brac- kets. Placez le miroir avec les mon- tants sur les supports. Setzen Sie den Spiegel mit den Framen auf die Halterungen. Kit alle naden tussen plan- chet, wastafel en muur af met sanitair kit.
Page 22
Afmetingen uitsnede t.b.v. Match Me wastafel 70 cm. Dimensions of the cut-out for Match Me washbasin 70 cm. Dimensions de la découpe pour Match Me lavabo 70 cm. Abmessungen der Aussparung für Match Me Waschtisch 70 cm.
