2.
Make a 130mm hole on the top of your cabinet. You will have to use a jigsaw to cut a 130mm diameter hole
in the kitchen cupboard. It is recommended that a qualified person, experienced in fitting cooker hoods, is
consulted before installation.
3.
Use the card template supplied to mark the position of the fixing screws.
4.
If you are going to rear-mount the cooker hood, the screws and wall plugs supplied should only be used in a
(plastered) brick, breeze block or blockwork wall. They are not suitable for lath and plaster walls or stud and
plasterboard walls. Consult a qualified builder for advice on fixing to these types of walls. If you are top fixing
the cooker hood to a kitchen cupboard, use the screws provided.
5.

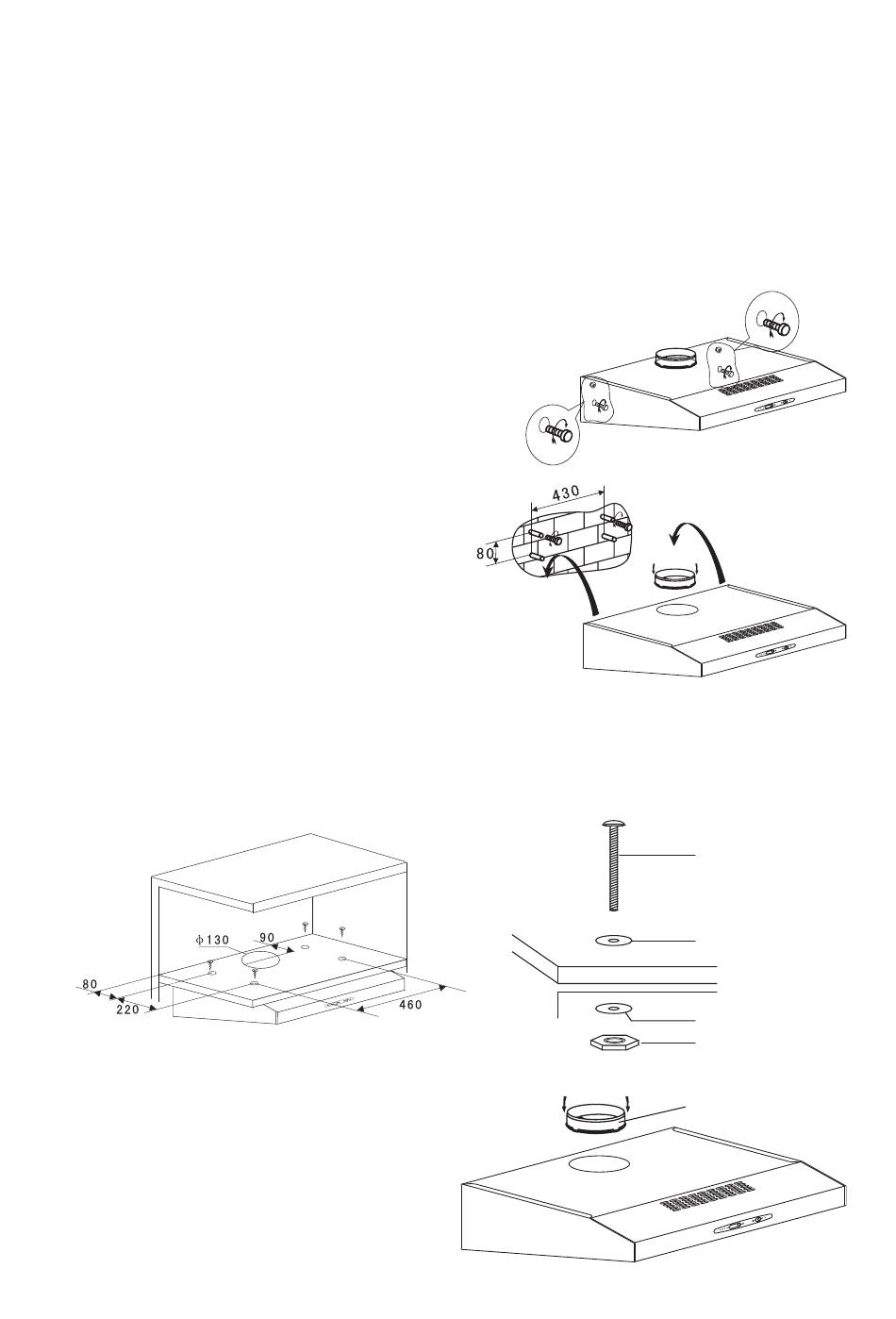

The keyhole slots are designed so the cooker hood locates over the larger area of the hole and is then pushed
back, or dropped down onto the smaller area of the hole.
Two extra 'security screws' are used to ensure the
unit is secure and isn't accidentally pushed off the
keyhole slots.
Screw the keyhole positioned screws into your wall
or kitchen cupboard so that the top surface of the
screw head is approximately 4mm from the surface
you are screwing to.
6.
If you are rear mounting the unit, drill all four holes and fit the wall plugs, but don't fit the two 'security
screws' until the unit is in place.
If you are top mounting the unit; drill a 130mm diametre and four 5mm diametre holes as per the picture
or the card template. Using the 4 × 35mm screws; washers and M4 nuts to fix the cooker hood to a kitchen
cupboard.
7.
Check that your fixings are correctly located, by
temporarily fitting the cooker hood. If correct,
remove the protective film (if available).
8.
Fit the air outlet adaptor in the hole in the cooker
hood. Some of the black plastic tabs of the adaptor
should be pushed through the hole, while others
remain above. This locks the adaptor in place.
screw
washer
board
unit
washer
nut
air outlet adaptor
