Cooper Lighting PORTFOLIO H77250QT4 Installation Instructions

PORTFOLIO
Installation Instructions for H17500QT4 and H17250QT4 Commercial Surface
Cylinders and for H77500QT4 and H77250QT4 Wall Mount Cylinders

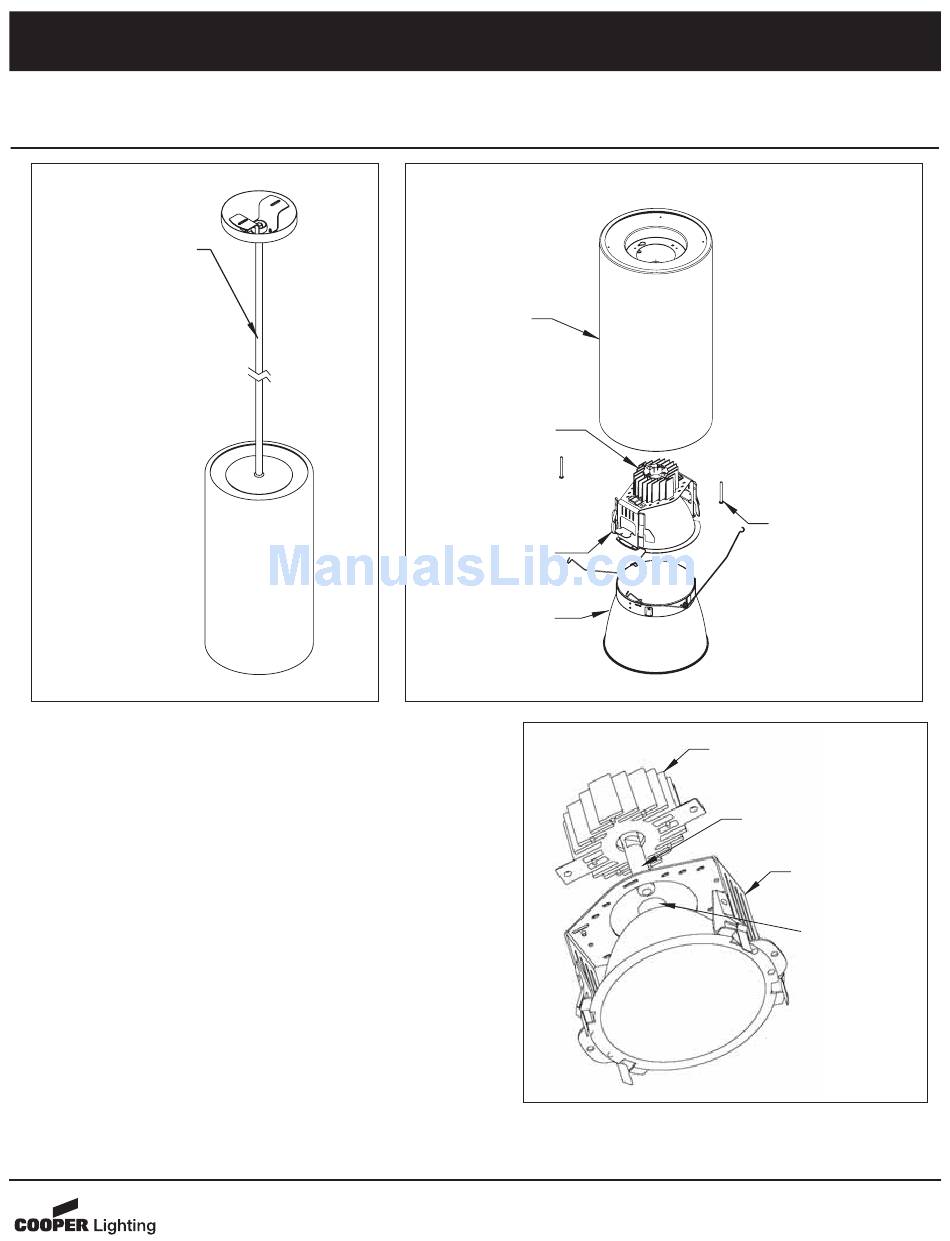

Figure 1
Pendant Kit, H836
(Sold Separately)
CAUTION:
To avoid possible electrical shock, be sure that power supply is
turned off before installing or servicing this fixture.
STEP 1:
STEM/CANOPY MOUNT
• Secure canopy assembly to the outlet box with screws (included
in the Pendant Kit).
• Attach stem to the canopy and to housing.
• Make wiring connections.
SURFACE MOUNT
• The cylindrical housing is attached to the outlet box (on ceiling)
by using (2) mounting screws shown in Figure 2.
• Make wiring connections.
STEP 2: To Install Upper Reflector: Cut plastic tie wrap securing heat sink to
bracket. Install quartz mini-can frosted lamp. Make sure the lamp
wattage matches the markings on the heat sink.
WARNING: DO NOT handle quartz lamps with bare hands.
Grease from fingerprints may cause premature end of life or
shattering of lamp.
Install heat sink to upper reflector assembly carefully guiding lamp
into reflector opening (Figure 3). Rotate heat sink until flanges are
seated under retention springs(Figure 4). Insert this completed
assembly into the cylindrical housing until seated securely.
(Figure 1)
Customer First Center
Figure 2
Housing
Heat Sink and
Lamp Assembly
Upper Reflector
Assembly
Lower Reflector
Assembly
Figure 3
1121 Highway 74 South Peachtree City, GA 30269
Mounting Screws
Heat Sink
Lamp
Upper Reflector
Assembly
Reflector
Opening
12/18/06 704244
