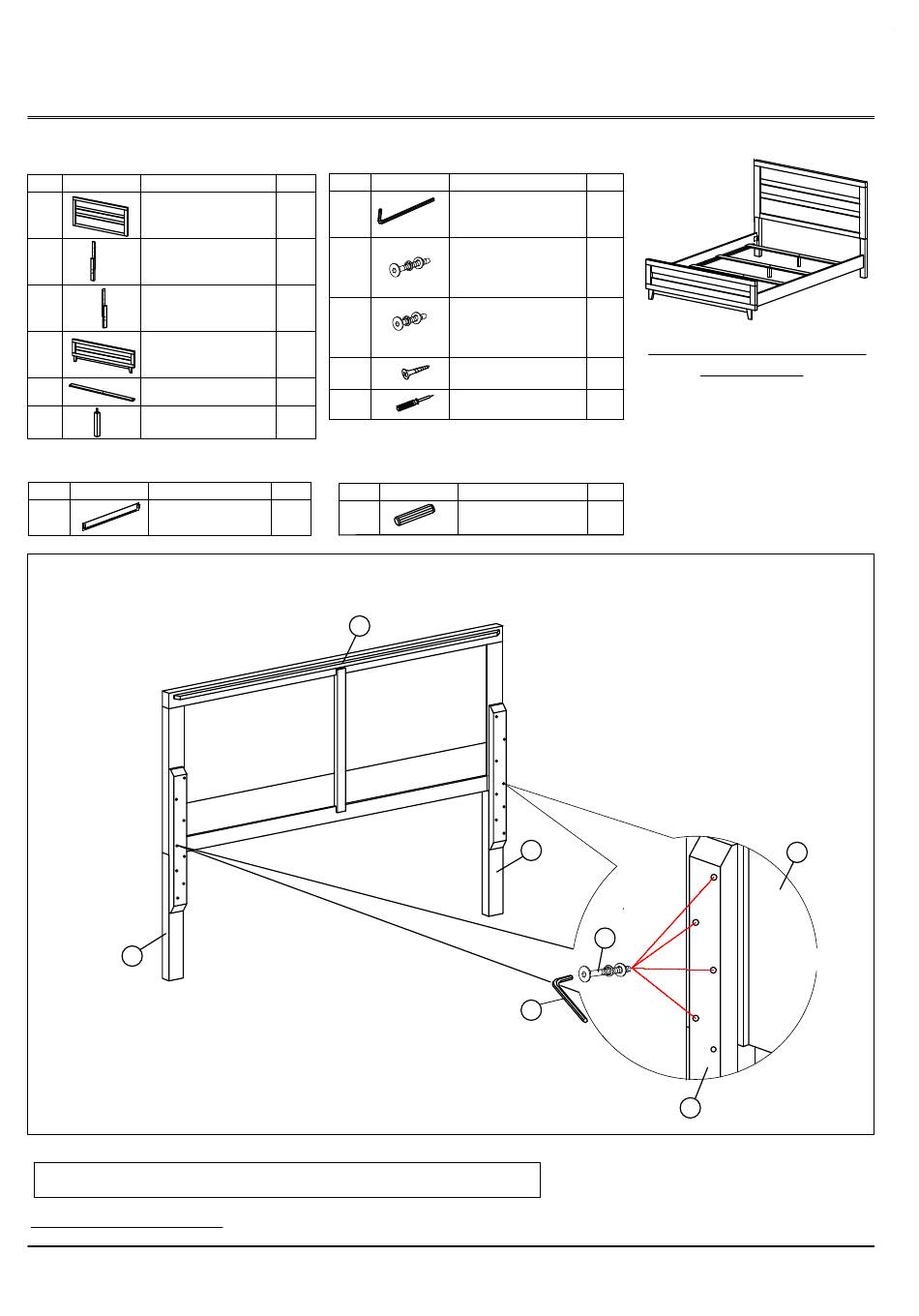

AVB B8270-F-HBFB Assembly Instructions

ASSEMBLY
INSTRUCTIONS
(BOX 1)
BOX OF HEADBOARD / FOOTBOARD
ITEM DRAWING DESCRIPTION
HEADBOARD PANEL
A
LEFT
B
HEADBOARD LEG
RIGHT
C
HEADBOARD LEG
FOOTBOARD
D
E
WOODEN SLAT
WOODEN SUPPORT
F
(BOX 2)
BOX OF SIDE RAIL
ITEM DRAWING DESCRIPTION
G SIDE RAIL
C
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BECOME LOOSE.
CHECK TIGHNESS OF ALL SCREW EVERY 6-8 WEEKS.
CLEANING INSTRUCTION
After assembly, clean & polish the completed parts if necessary with soft cloth and industrial recognized furniture polish
(BOX 1) HEADBOARD / FOOTBOARD
HARDWARE LIST
ITEM DRAWING
QTY
1
1
1
2
1
3
1
4
4
5
4
(BOX 2) SIDE RAIL
HARDWARE LIST
QTY
ITEM DRAWING
2 6
A
ITEM NO : B8270 / B8280 - F - HBFB
FULL HEADBOARD / FOOTBOARD
DESCRIPTION QTY
ALLEN WRENCH
1
(M4)
CONNECTION BOLT
(M6 x 50mm)
8
W/WASHER &
SPRING WASHER
CONNECTION BOLT
(M6 x 25mm)
8
W/WASHER &
SPRING WASHER
FLAT HEAD SCREW
8
(#8 x 1 1/8")
Assembly Tool Not Included 1
DESCRIPTION QTY
WOOD DOWEL
8
(M8 x 30mm)
B
2
1

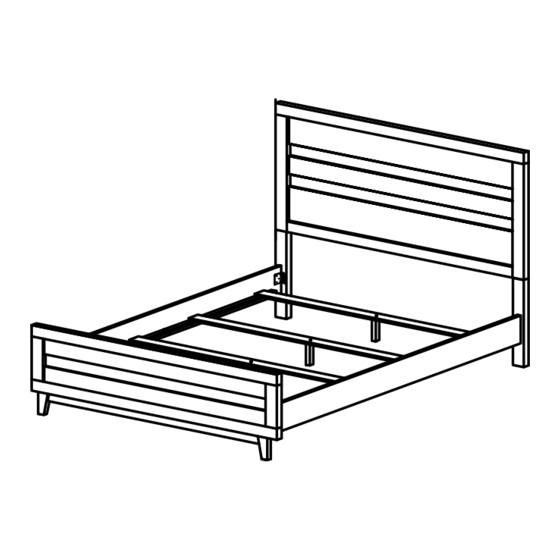

COMPLETED FULL BED
ASSEMBLY
A
STEP 1
C
PAGE 1 OF 2
