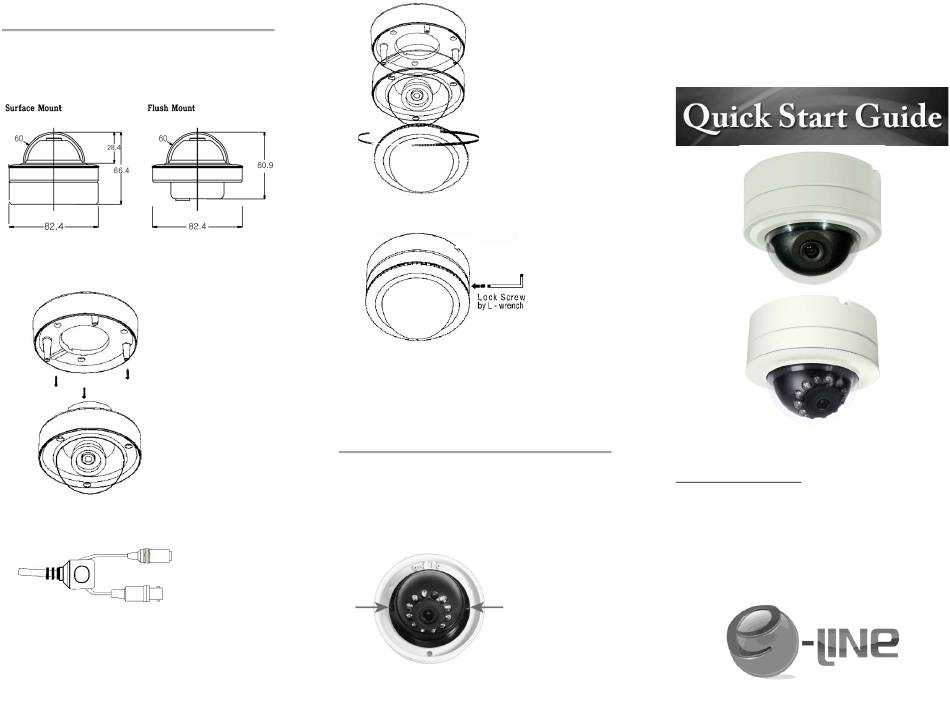

e-Line Technology ELI-VDM Quick Start Manual

Mounting
This camera is rated IP66 and is suited for outdoor
environments.
The camera can be surface mounted or flush mounted.
1. Optional: Attach the surface mount bracket to the
ceiling or wall with screws.
2. Make connections through the opening in the wall or
ceiling..
3. Attach the camera with screws to the optional surface
mount bracket or directly to the wall or ceiling. Attach the
treaded dome cover by rotating it clockwise until tight.
4. Secure the dome cover to the camera by tightening the
lock screw with an Allen wrench.
Caution: Once power is supplied, do not remove the
camera from the mounting base due to risk of electrical
shock.
Adjusting the Lens
1. Loosen the lock screw with an Allen wrench.
2. Remove the dome cover by unscrewing it counter-
clockwise.
3. Loosen the two Phillips-head screws on each side of the
camera.
4. Adjust lens position. Tighten screws. Replace dome
cover. Tighten lock screw.
ELI-VDM

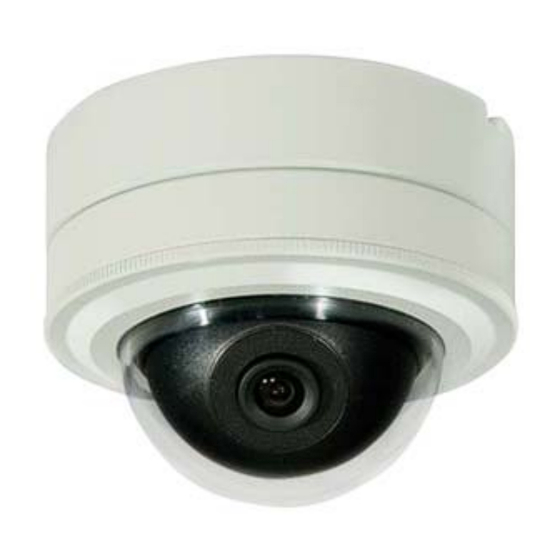

Mini Vandal Dome
User Manuals and Specification Sheets are available at
http://eLineTechnology.com
Caution: Before providing power for the camera, please
read this Quick Start Guide or the User Manual in detail.
Do not attempt to disassemble the camera. If the camera is
not functioning properly, please contact your local
dealer/installer.
